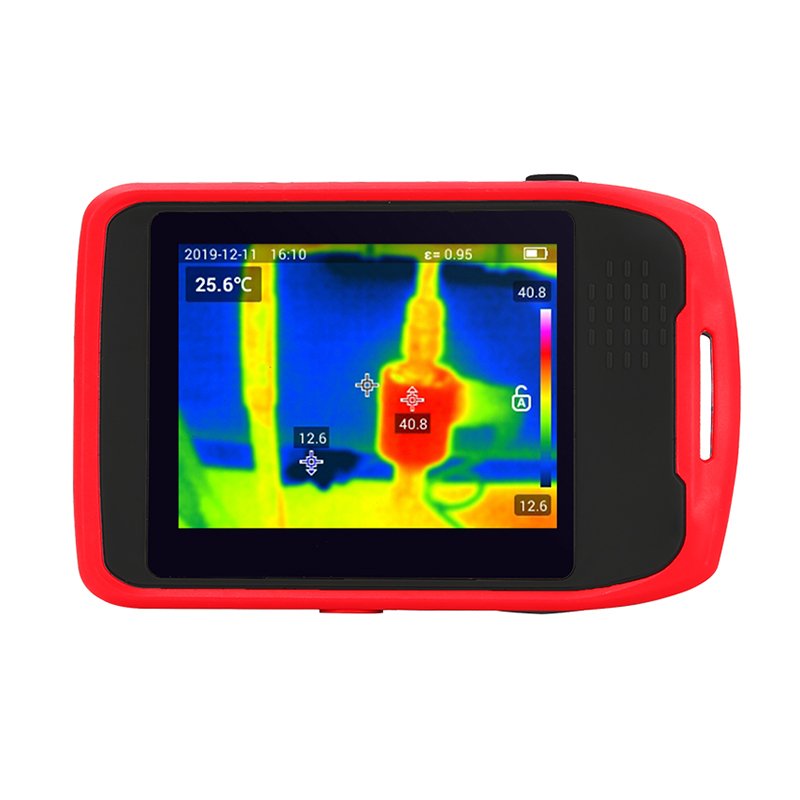

UNI-T UTi120T – Pocket-Sized Thermal Imager

• 120×90 pixel IR resolution
• -4°F to 752°F temperature range
• 50°x38° field of view
• 25Hz refresh rate
• 5in TFT LCD

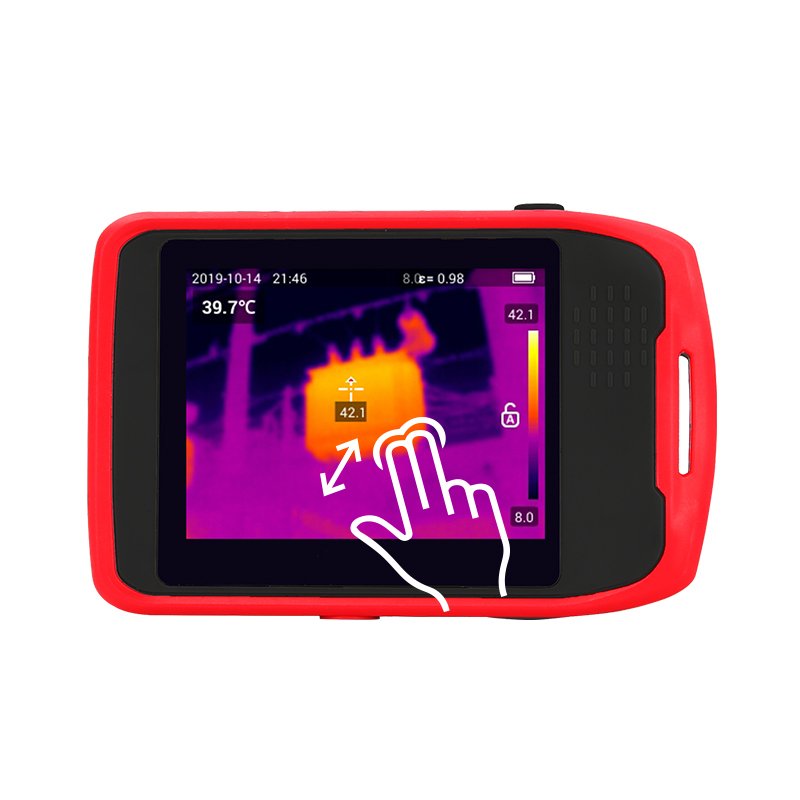

The UTi120T is a pocket-sized and compact thermal camera. Its 3.5’’ large LCD touch display screen is convenient for users to operate easily. It can automatically track the objective’s temperature from -4°F to 752°F. It also supports Wi-Fi connection through the UNI-T Mobile App. With a UTi120T thermal camera in pocket, users will be ready anytime to diagnose electrical, mechanical, building problems, and other potential issues.

Aging, corrosion, blockage, leakage, and other faults can appear during pipeline inspection. With the help of the UTi120T, faults can be quickly located.

Faults such as wiring error, overload, unbalanced load, and component failure of motor equipment in production can be detected by a thermal imager. Detecting faults in timely fashion helps to ensure safety of productions.

Measure a distribution cabinet in advance to determine possible fault locations and to reduce maintenance costs. Abnormal thermal phenomenon caused by oxidation, corrosion and loosening of switches, contacts, transformers, and other parts can quickly be found using this UTi120T thermal camera.

• Image blending adjusts the percentage of image that is visible light versus infrared
• Picture in picture mode allows inset of thermal image into visible-light image
• Point analysis focuses on a single point
• Rectangular analysis focuses on an area enclosed within a selected rectangle
• Color palette selection allows for selection of palettes including Iron Red, White Hot, and Red Hot
• Lamp setting activates integrated flashlight
