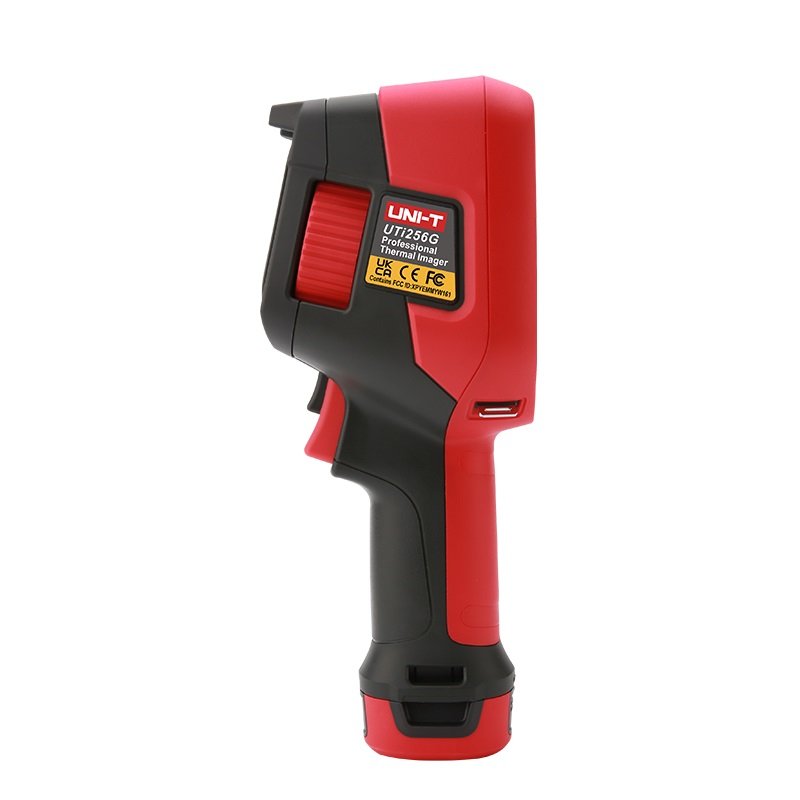

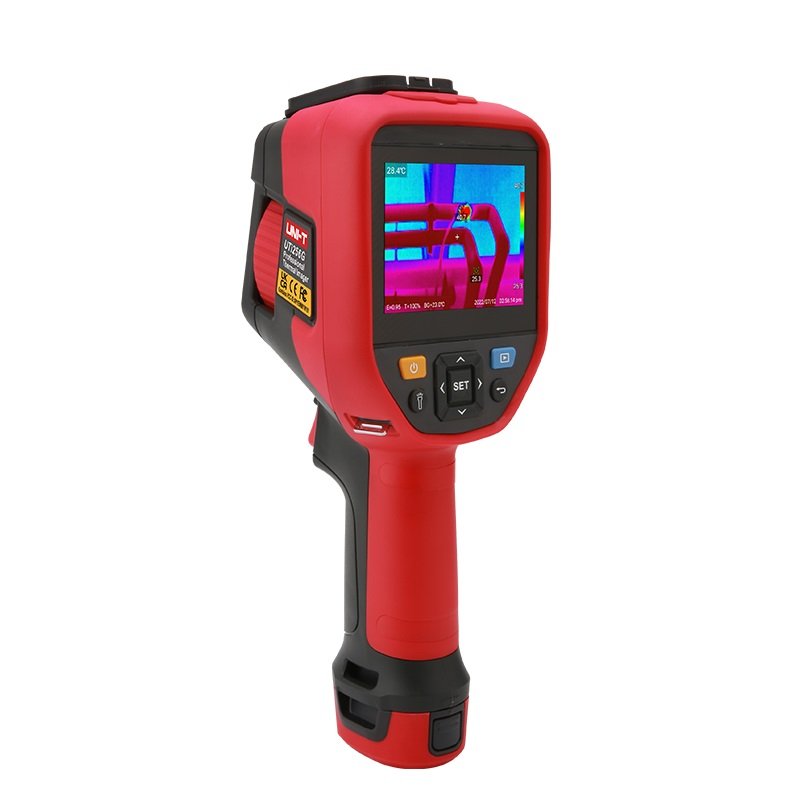

UNI-T UTi256G – 256 Pro G-Series Thermal Imager

• 256×192 pixel IR resolution
• -4°F-1022°F temperature range
• 28°×20° field of view
• 30Hz refresh rate
• 3.5in IPS Touch display (640×480)

That UTi256G is a professional enhanced thermal camera specially designed for industrial use with a high IR resolution of 256×192 pixels and a wide temperature range of -4° to 1022°F. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen provides a convenient operation experience for users. The UTi256G also features various functions such as Wi-Fi, voice recording, laser pointer, on screen analyzer, and others. They are perfect troubleshooting tools for many industrial applications.

There are two versions of the industrial enhanced thermal cameras available. Please see the table below for a comparison.

The UTi256G is a professional thermal imager with a manual focus ring and a 256×192 pixel IR sensor. The 3.5-inch touchscreen makes taking measurements easier. Its wide temperature range meets more requirements in numerous applications. Professional analysis software allows the user to edit, analyze, and share data anywhere and anytime.

Applications include solar panel inspection, electric power tower inspection, electricity facilities inspection, automotive maintenance, mechanical equipment inspection, heating equipment inspection, building and HVAC inspection, petrochemical, and metallurgy.

• Wide temperature range of -4°F to 1022°F
• Software allows analysis and sharing of data
• Color palette selection allows for white hot, black hot, red hot, ironbow, rainbow, rainbow HC, and lava
• Laser pointer
• Still-image capture
• Image modes including thermal, visual image, fusion, and PIP allow for various ways to compare the natural-light image to the IR image
• Dew point can be calculated given ambient temperature and relative humidity
