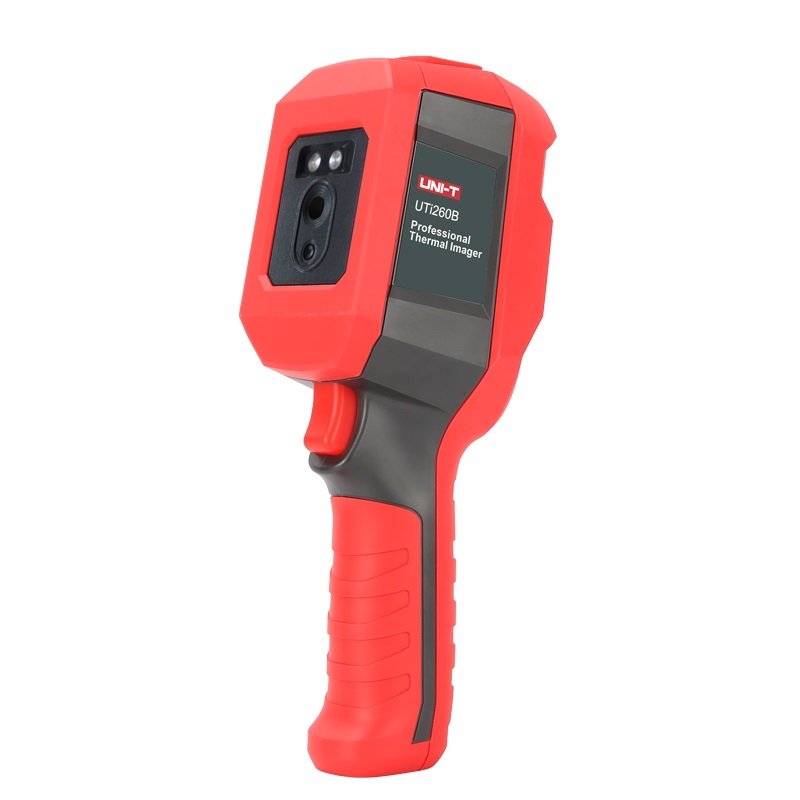

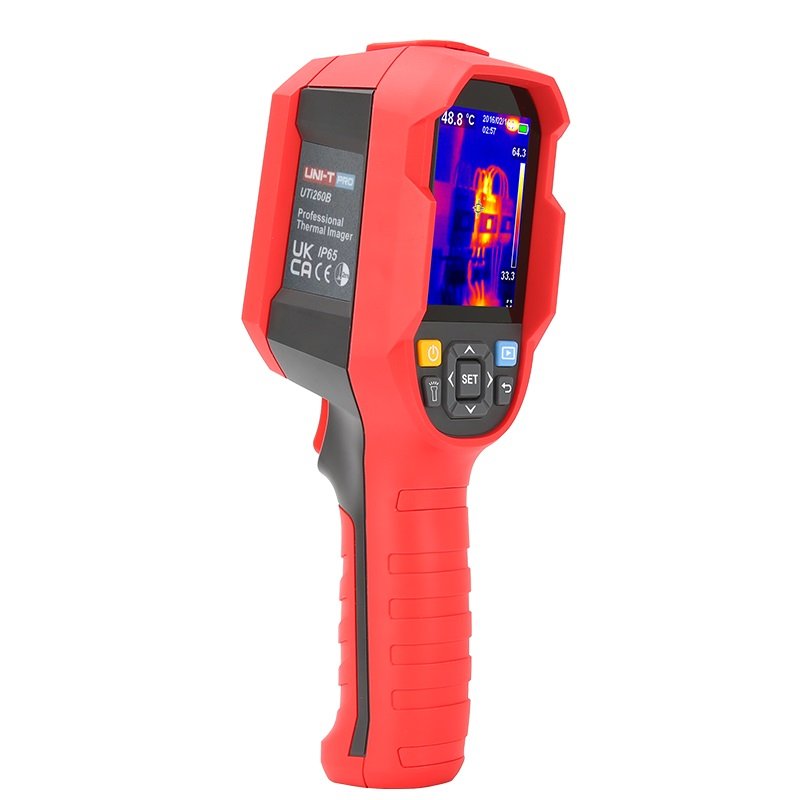

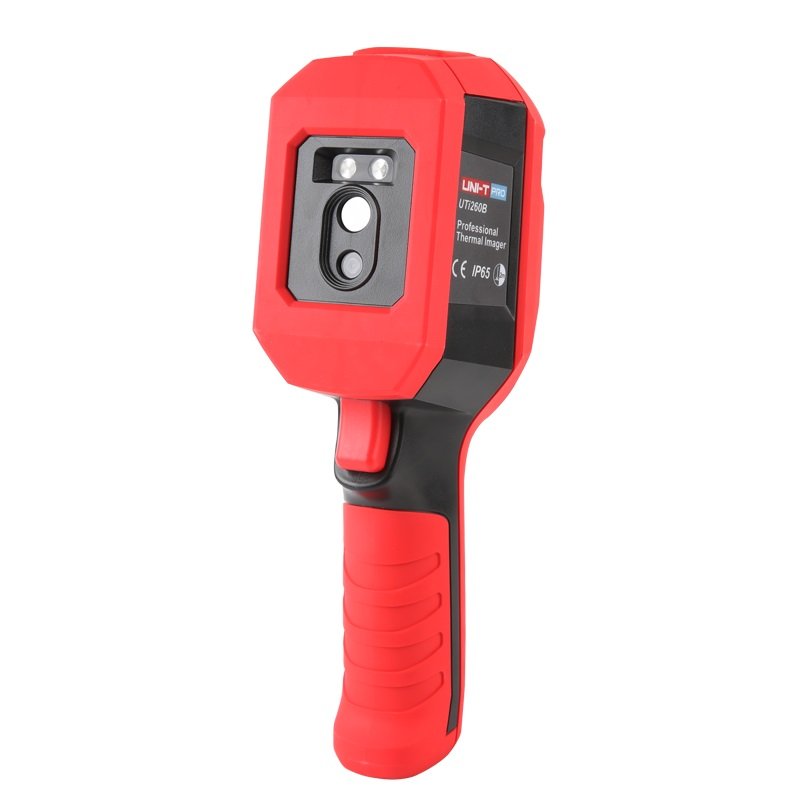

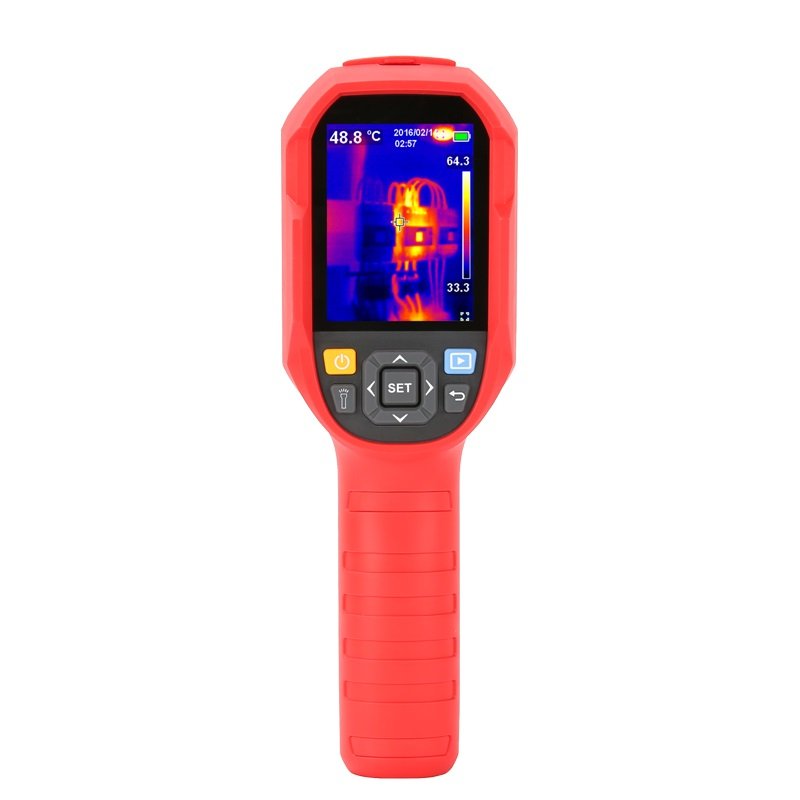

UNI-T UTi260B – 256 Heavy Duty Series Thermal Imager

• 256×192 pixel IR resolution
• -4°F to 1022°F temperature range
• 56°×42° field of view
• 25Hz refresh rate
• 2.8in (320×240 pixels) TFT LCD

The UTi260B belongs to the UNI-T heavy duty series thermal cameras. It is cost effective with a wide temperature range of -4°F to 1022°F. It has higher IR resolution of 256×192 pixels and includes seven color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to meet the IP65 standard and meet the 2m drop test.

Two versions of the B series heavy duty thermal imagers are available. Please see the table below for an overview of some of the differences.

Handheld thermal cameras are designed for a variety of industrial applications. These ergonomically designed products can minimize fatigue when using for long periods of time. This series uses high-performance infrared detectors, allowing wide temperature measurement range and accurate data, and are suitable for professional analysis work.

Applications include PCBA inspection, motor inspection, pipeline inspection, house water leakage inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, and building & HVAC inspection.

• Image fusion captures a real-time IR image and displays the measured temperature
• Color palette selection allows for selection of palettes including Iron Red, White Hot, and Red Hot
• Center point and high/low temperature of measured can be tracked
• High/low temperature alarm warns user when a predetermined temperature has been measured
• Alarm temperatures can be set the user in a configuration menu
