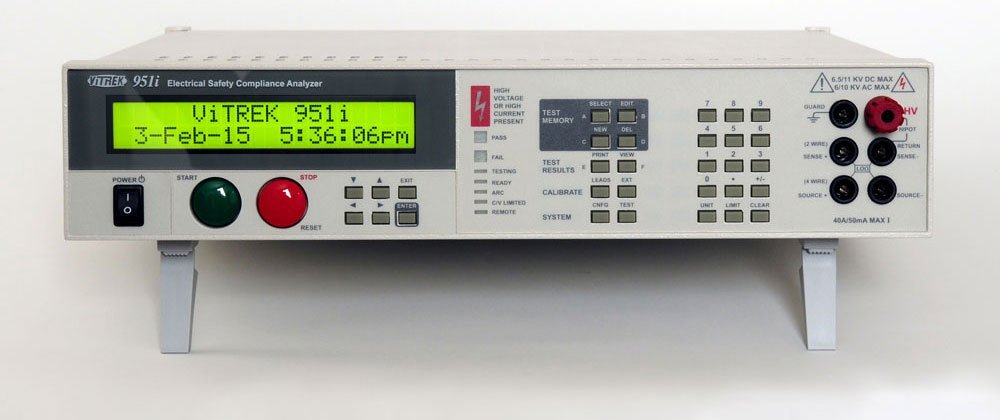

Vitrek 951i – 6KV AC/DC/IR/LR Electrical Safety Compliance Analyzer

• Highest Level of Operator Safety
• High Power Output
• Wide Range of built-in Voltage Capabilities
• The Fastest Hipot Testers available
• Expansive Test Sequence Memory

Vitrek 95x Series Hipot Tester – 6KV AC/DC/IR/LR Electrical Safety Compliance Analyzer. Comes with: TL-209, Power Cord, Operating Manual, QTProII-950 45-day free trial, NIST Traceable Calibration Certificate without data. ISO 17025 accredited calibration certificate with data and uncertainties available with purchase at a reduced price with part number: ISO-CALN-95X.

Speed and power go hand in hand, the 6.5KVDC models offer 50mA of source current for DC Hipot – providing the power you need to charge and discharge challenging DUTs rapidly. Models are also available with DC hipot up to 11KV and 15KV. Most of the 95x series also offer 50mA of sourcing for AC hipot, but for heavier AC loads the 95X can be configured to source up to 100mA or even as much as 200mA. For higher AC hipot voltages the 95X can generate up to 10KV internally and all models are available with an external 30KVAC hipot option.

The 95X has the ability to directly control up to four 64-channel HV scanners right out of the box. That is up to 256 test points, and using a PC with Vitrek’s QuickTest Pro software; you can expand the count up to 640 test points. The HV Switching System of choice is the Vitrek 964i which can hold eight 8-channel switching cards – available in 7, 10 & 15 VK ratings. The 964i also has switching cards to handle routing up to 40 amp ground bond currents.
