Description

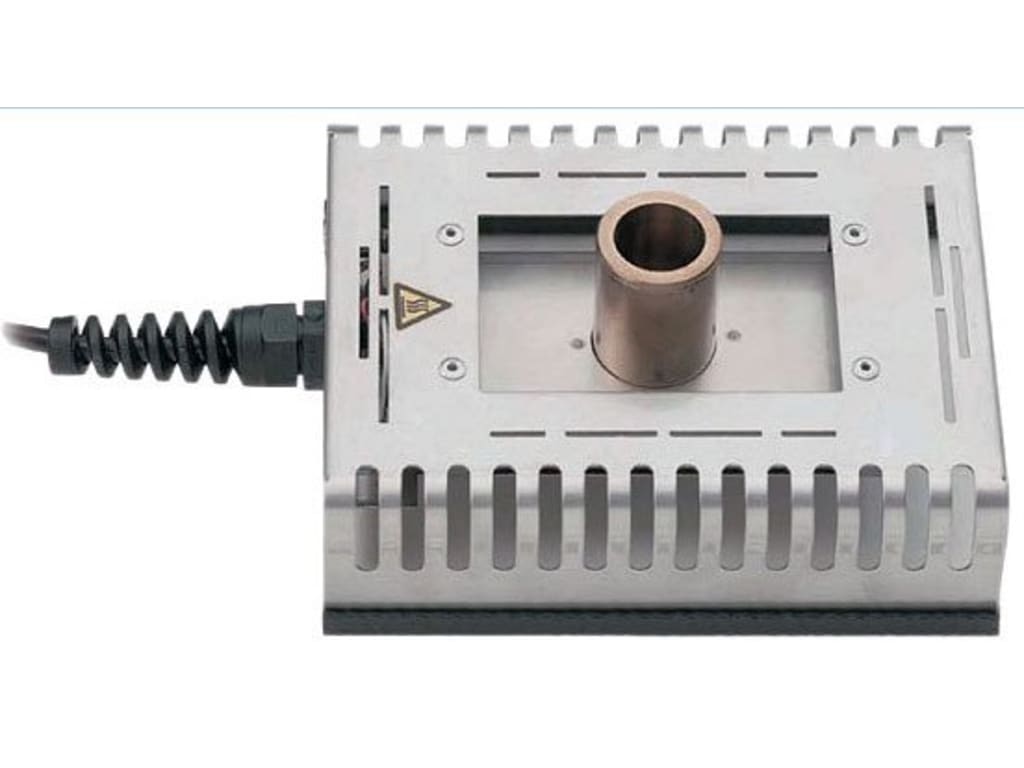

Weller WSB80
- WSB 80 Solder Bath 80 W – 24 V
- Accessory for WT series soldering stations and WR series rework stations
- For tin coating and preparation of small electronic components and leads
- Also used to clean excess solder from small component leads
- Precision temperature control / 150° F – 850° F / 50º C – 450º C
WSB 80 Solder Bath 24V/80W
The WSB80 is a very useful rework preparation tool. The solder bath is temperature controlled continuously from 150°F to 850°F via an existing 80 W power unit (sold separately). The solder bath can be used to tin wire ends and clean leads of all extraneous solder particles in preparation for reworking. (Usable with lead free solder.) Compatible with WD1, WD1M, WD2, WD2M, WRS3000, or WR3M power units.
Soldering Equipment/Soldering Pots Template | |
|---|---|
| Type (Soldering Pots) | Analog |
| Programmable | No |
| Temperature Min | 150 F |
| Temperature Max | 850 F |
| Timer | No |
| Solder Pot Size Length | 0.79 MM |
| Solder Pot Size Width | 0.79 MM |
| Solder Pot Size Height | 1 MM |
| Heating Element Type | Wire Wound |
| Temperature Scales | Both |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | One year from date of purchase |
| Safety Approval | RoHS |
| Product Height | 5.00 IN |
| Product Length | 9.25 IN |
| Product Width | 6.75 IN |
| Data Logging | No |
| HTS/Schedule B Number | 8419899585 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V 50/60 Hz |
| Country of Origin | Mexico |
| Shipping Height | 5.00 IN |
| UPC | 037103222305 |
| Shipping Length | 9.25 IN |
| Shipping Width | 6.75 IN |
