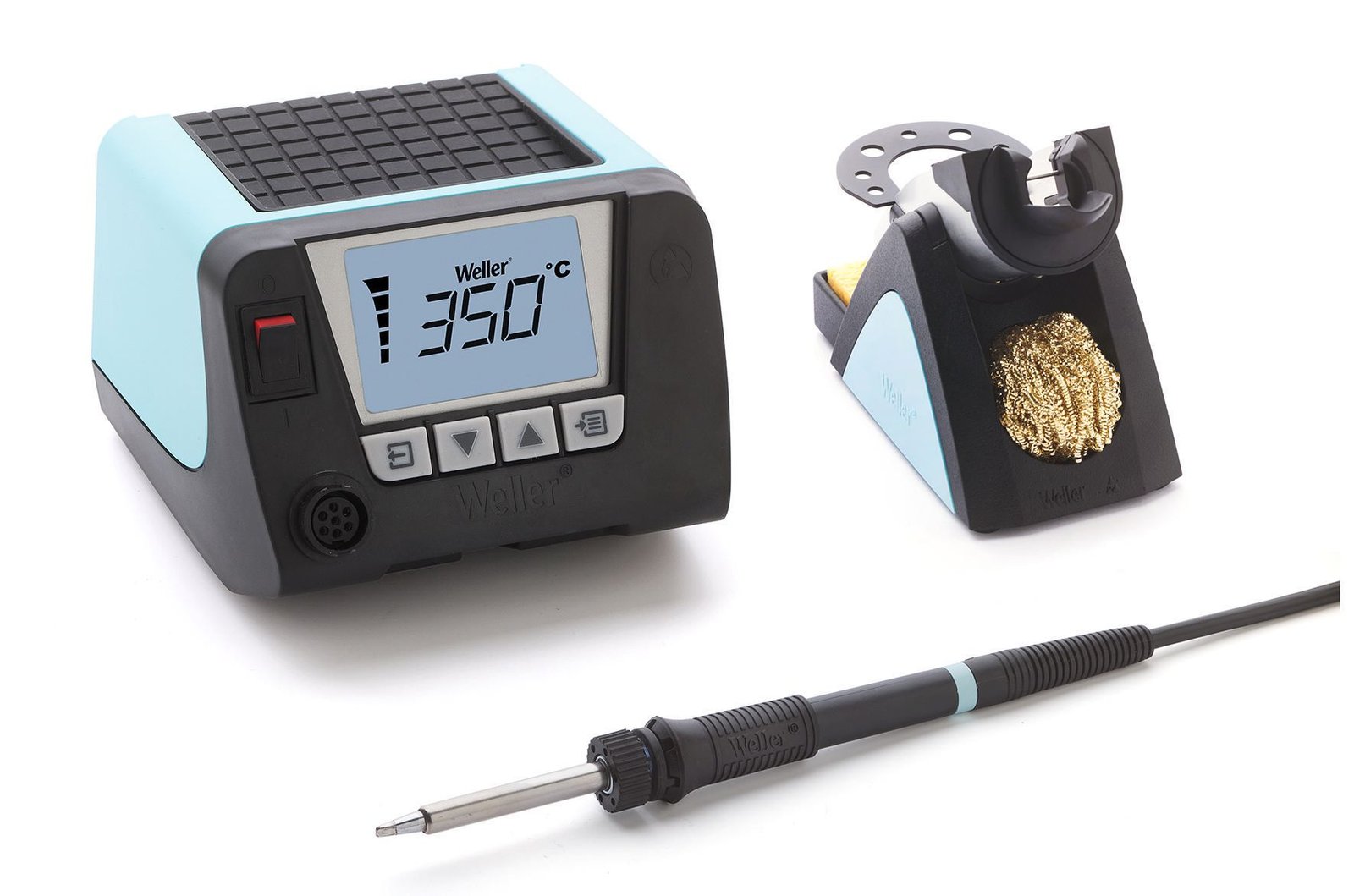

Weller WT1012N -1-channel soldering station digital 95 W

The WT1012N is a 90 watt, single channel soldering station with digital controls and a WSP80 soldering iron. The WT1012N is also compatible with a variety of other handpieces and peripheral devices.

The WT1N contains an LCD screen on its front panel, which provides a detailed overview of all station functions. Background illumination is adjustable, and a power bar graph shows output from the station to the iron tip. Menus are easily navigated through four buttons, providing access to temperature control, password protection and much more.

Compatible With Many Tools

The WT1N is compatible with a variety of tools, as well as other devices including preheaters, fume extractors and more. The following is a list of the most popular models. Each can be viewed through the links below:

• WTP90 – 90 watt hybrid soldering iron
• WP65 – 65 watt soldering iron
• WP80 – 80 watt soldering iron
• WSP80 – 80 watt soldering iron
• WTA50 – 2×25 watt tweezer
• WHP80 – 80 watt heating plate
• WSB80 – 80 watt solder bath
• Zero Smog TL – fume extractor

Advantages at a Glance

Front-mounted Mains Switch The front-mounted mains switch ensures easy access at all times.
Multi-functional LC Display Unique LC display with a detailed overview of all functions. Adjustable background illumination. Power bar graph allows visual monitoring of the easily-readable output power from the station to the soldering iron tip.
New Menu Button Provides the ultimate user friendly access to and navigation of the menu structure.
2-in-1 WSR Safety Rest The soldering iron holder can be rotated through 180°. The user can choose between wet and dry cleaning.
Stackable Units The WT 1 / WT 1H soldering stations can be stacked on the WTHA 1 hot air station, or on each other, saving space on the workbench.
High Performance The WT soldering stations are available in two designs: 90 W and 150 W power units with 1 channel.
Backwards Compatibility All soldering irons of the WSD and WD soldering stations can be connected. (Except micro soldering irons)
