Weller WX2023 Micro MS – Two Channel Soldering Station with WXMPMS Iron

Weller WX2023 Micro MS – Two Channel Soldering Station with WXMPMS Iron

The Weller WX2023 Micro MS is a two channel soldering station with digital controls, capable of powering one 200 watt, or two 120 watt tools simultaneously. As part of the WX family, it is compatible with many WX handpieces and peripherals, making it easily customized to your particular application.

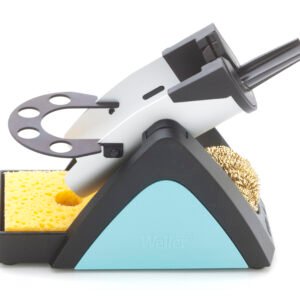

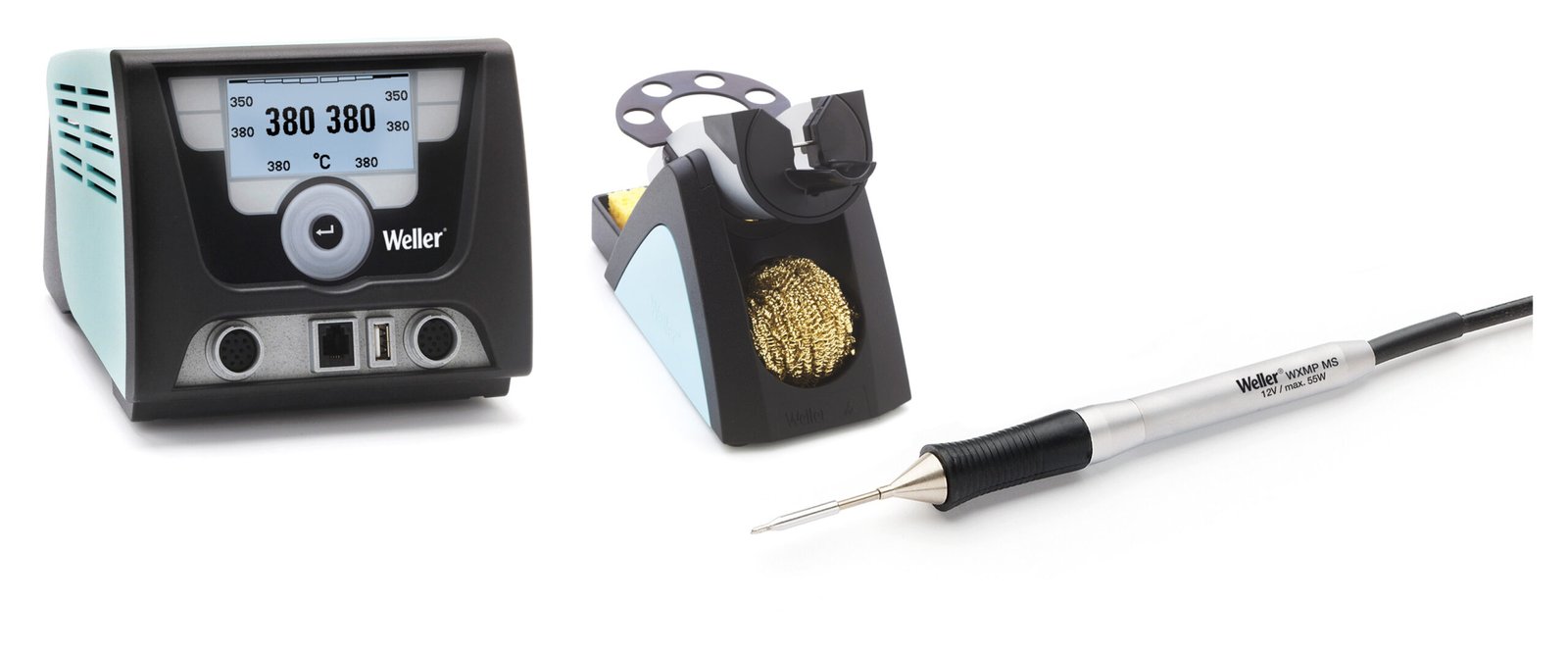

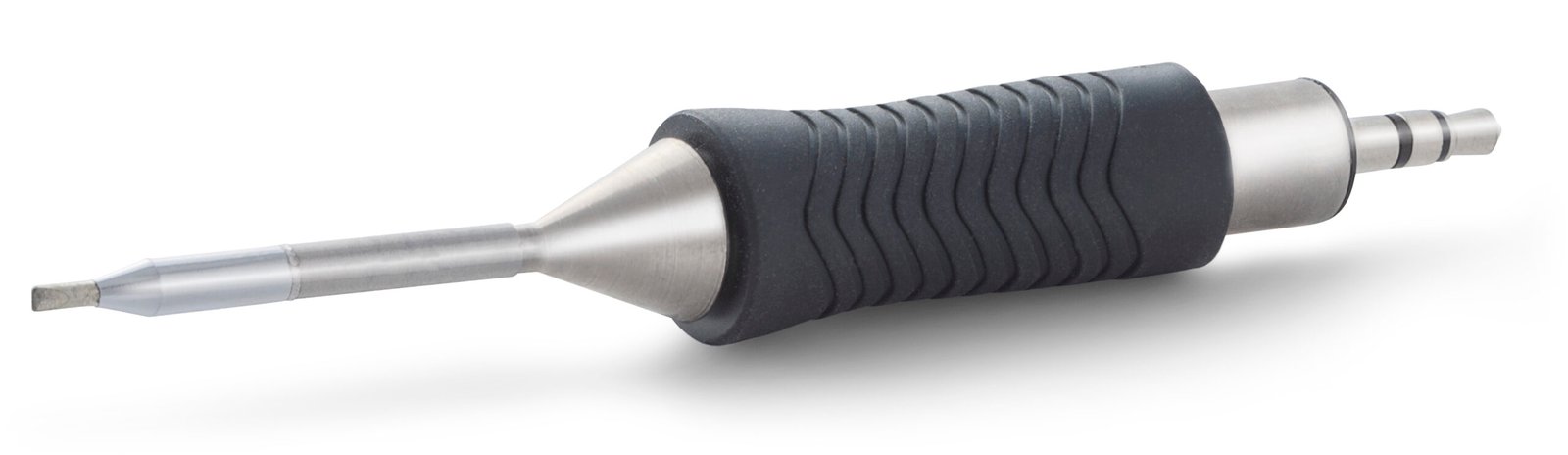

The WX2023 Micro MS includes the WXMPMS Micro iron (mil spec), WSR200 2-in-1 safety rest with sponge/brass wool, and RTM013SMS chisel tip (1.3 x 0.4mm).

The WX series was designed for ease of use. Irons contain a visual indicator letting operators know when their tool is ready to use. If the handle’s LED is blinking, the device is in standby or heating up. When the light is on, the tip is ready to use. In addition, WX tools contain a motion sensor, so that they only turn on when in use, and go into standby when placed in the stand.

Visual process control

through LED signal function Blue LED ring light (light is out = Off, light is blinking = Standby or Heating Up, light is on = tip ready for use)

Temperature stability/accuracy

All WX Soldering tools have a temperature stability of ± 2° C and a temperature accuracy of ± 9° C, as per IPC standard.

Tailor-made performance

Weller heating technologies deliver precise performance on demand.

Intuitive operation

The robust touch screen is a capacitive touch panel made of real glass. It is anti-static and temperature-resistant. The turn-and-click wheel with confirm button allows intuitive operation.

Quick heating time

WX soldering irons heat in ultra-quick time and can be used immediately.

Huge energy savings, Motion sensor

Thanks to an integrated sensor, WX tools are motion activated. This means that they consume power only when they are actually in use. Connected accessories also go into standby mode.

Compatible with many other tools

The Weller WX2023 Micro MS is compatible with several different types of irons, tweezers, fume extractors and much more. Please click the links below for more information:

• WXP65 – 65 watt soldering iron
• WXP80 – 80 watt soldering iron
• WXP90 – 90 watt hybrid soldering iron
• WXP120 – 120 watt soldering iron
• WXP200 – 200 watt soldering iron
• WXPP – 40 watt Pico soldering iron
• WXMPMS – 40 watt Micro soldering iron
• WXUPMS – 150 watt Ultra soldering iron
• WXMTMS – Micro tweezer
• WXHP120 – Preheater
• WXSB200 – Solder Bath
• Zero Smog 4V – Fume Extractor

The following is a brief overview of the WX line and tools that can be used with each station.

		200 W (255 W)	200 W (255 W)	200 W (255 W)	420 W (600 W)
Active Tip Power Response Silver Line		WX1 1-channel soldering station T0053417699N	WX2 2-channel soldering station T0053420699N	WXD2 2-channel soldering, desoldering and hot air station  T0053426699N	WXR3 3-channel soldering, desoldering and hot air station  T0053500699N
WXP 65 SET | 65 W SOLDERING IRON Small, fast soldering iron with 65 Watt suitable for fine soldering work with increased heat demand. T0052921299N		✓	✓	✓	✓
WXP 80 SET | 80 W SOLDERING IRON For universal soldering tasks. T0052920999N		✓	✓	✓	✓
WXP 90 SET / 90 W Hybrid Soldering Iron Soldering iron with extremely short heating and recovery times and optimum heat transfer. T0052922599N		✓	✓	✓	✓
WXP 120 SET | 120 W SOLDERING IRON All-rounder with 120 Watt, can be used for soldering work, from small to large components with high heat requirements. T0052920299N		✓	✓	✓	✓
WXP 200 | 200 W SOLDERING IRON These most powerful soldering iron among the WX tools. Ideal for Soldering work with increased heat demand, e.g. for LED backplanes or HF shielding. T0052920599N		✓	✓	✓	✓
WXPP PICO SOLDERING IRON / 40 W High performance for smallest components T0052922699, also available as MS version, handpiece without soldering tip.		✓	✓	✓	✓
WXMP SET | 40 W (55W MAX.) MICRO-SOLDERING IRON High performance active tips for micro and standard components, wide range of geometries and sizes. T0052920499N MS version available.		✓	✓	✓	✓
WXUP-MS ULTRA SOLDERING IRON / 150 W Designed for heavy duty applications and large components. LED soldering, solar technology, multi-layer boards. Handpiece without soldering tip. T0052923099		✓	✓	✓	✓
WXMT SET | 2 X 40 W MICRO DESOLDERING TWEEZERS Powerful micro desoldering tweezers. Ideal for soldering and desoldering work with increased heat requirements, e.g for LED backplanes OR HF SHIELDING. T0051317899N		✓	✓	✓	✓
WXDP 120 SET | 120 W DESOLDERING IRON Fastest desoldering iron in the world. Heats up in 35 seconds for the most difficult soldering challenges. With integrated collection container – for horizontal working position. T0051320299N				✓	✓
WXDV120 SET | 120 W DESOLDERING IRON Fastest Inline Desoldering Iron. Creates tasks that are difficult to cope with. Integrated tin collection container in the handle – for vertical working position. T0051320599N				✓	✓
WXHAP 200 SET | 200 W HOT AIR IRON For soldering surface-mounted components. The ion trap ensures that the hot air flowing out is free of static charges. T0052712099N					✓
WRK | REFLOWSET T0058761730N					✓
WVP | VAKUUM PICK-UP T0052918499N					✓
WXHP 120 | 120 W PREHEATING PLATE Small preheat plate, 120 W with increased heating power, for applications on multilayer and large mass printed circuit boards, 80 x 50 mm. T0052702999N		✓	✓	✓	✓
WXSB 200 | 200 W SOLDER BATH Soldering bath for the preparation of strands… T0052704399N		✓	✓	✓	✓
ZERO SMOG® 4V Extraction unit for volume extraction for up to 4 workstations. T0053660699N		✓	✓	✓	✓
