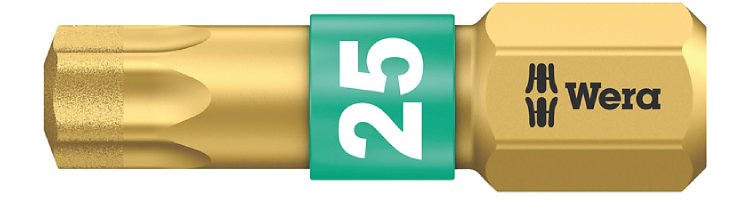

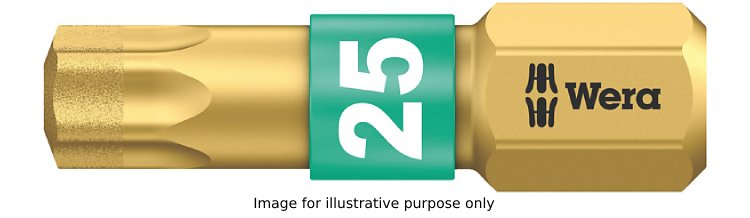

Wera Tools 05066104001 – 867/1 BDC TORX Bits, TX 20 x 25 mm

• Size: 25 x 7 x 7 mm
• For recessed TORX screws
• BiTorsion zone to absorb peak loads
• 1/4″ hexagon drive (Wera connecting series 1)
• Take it easy tool finder: color coding according to profile and size

Bits for recessed TORX screws with tiny diamond particles on the bit tip. This ensures a secure fit of the bit in the screw, reduces the contact pressure required, and lowers the risk of slipping. Come with a Torsion zone – where kinetic energy is diverted from peak loads – and a softer BiTorsion zone to prevent the bit tip from twisting under peak loads. This greatly extends the product service life. 1/4″ hexagon, suitable for holders as per DIN ISO 1173-D 6.3.

Particularly when applications involve sensitive materials or high-quality surfaces are involved, bits with a diamond coating ensure that work is done safer, faster, and at a lower cost.

Peak forces that occur in power tool applications often result in premature wear of bits or damage to the screw head. This usually occurs during the initial power-up and when the screw comes to a standstill. Screwdriving could become more productive and safer if these peak loads could be minimized. The Wera BiTorsion system prevents premature wear. The service life of the tool is extended and the productivity of power tool applications significantly increased.

One of the greatest problems with power tool applications is that the conventional bit easily slips out of the head of the screw (cam-out). This often destroys both the head of the screw and the tool. High resulting costs are incurred e.g. from damaged surfaces and screw connections that can no longer be loosened. Screwdriving will become safer and more economical if this problem of slipping can be minimized.

Today, the Wera diamond bit – manufactured with the technology specifically developed by Wera for this application – still sets the standard in terms of resilience and functionality. Wera bits with a diamond coating ensure a secure fit of the bit in the screw head.

The minute diamond particles applied to the tip of the tool literally “bite” into the screw and ensure an exact, anti-slip fit in the head of the screw. This secure fit protects the screw. The cam-out forces which compel the user to apply greater pressure to the screw are considerably reduced.

Ideal for sensitive materials.

The optimally coordinated features of the torsion zones on the bit and holder permit a phased yield when under strain. The two-phase system prevents premature wear. Moreover, a long tool service life is also ensured by the hardness of the bits that matches the respective application.

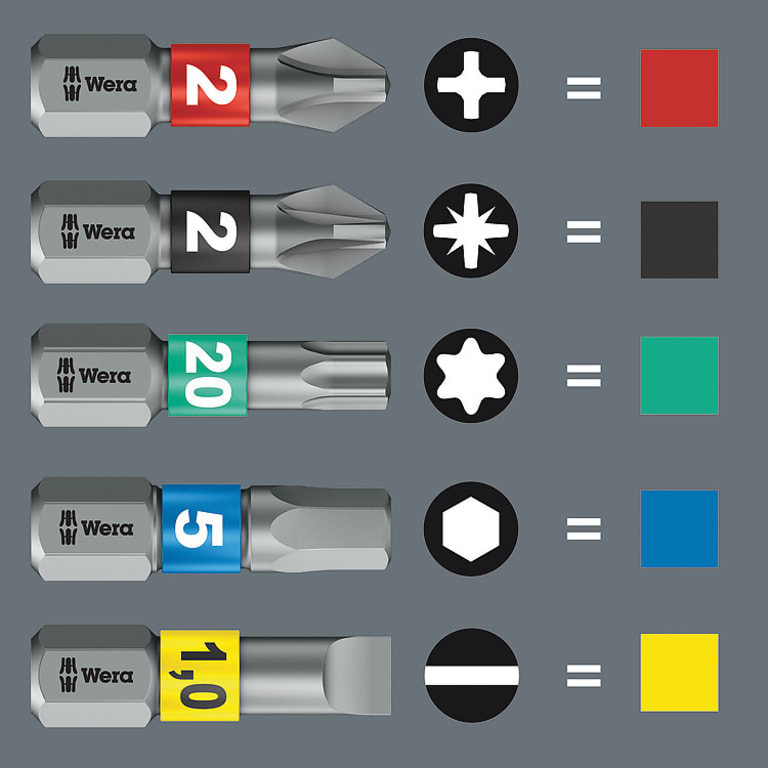

“Take it easy” tool finder with color coding according to profiles and size stamps – for simple and rapid accessing of the required tool.
