Wohler 4781 – Visual Inspection Monitor
8 people are viewing this product right now
Original price was: $3,910.00.$3,519.00Current price is: $3,519.00.
Shipping calculated at checkout.
Estimated delivery:3 days
WOHLER VIS400 MONITOR
- Perfect for either vertical or horizontal inspections
- Adjustable LED lighting
- Modular system – to choose individual components to suit application requirements
- Compact and easy to use – 3 lbs featherweight
- Includes carry strap and protective pouch with anti-glare protection
- Flue gas systems, chimneys
- Building drains, house connections
- Ventilation systems
- Pan & Tilt color camera heads with integrated power lighting easily negotiate bends in the line
- Digital meter counter with a resolution of 0.10 ft, displayed on the monitor (with Wohler camera viper or cable reel)
- Mini USB port for data transmissions
Guarantee Safe and Secure Payment Checkout
Description
Wohler 4781 – Visual Inspection Monitor
- Perfect for either vertical or horizontal inspections
- Adjustable LED lighting
- Modular system – to choose individual components to suit application requirements

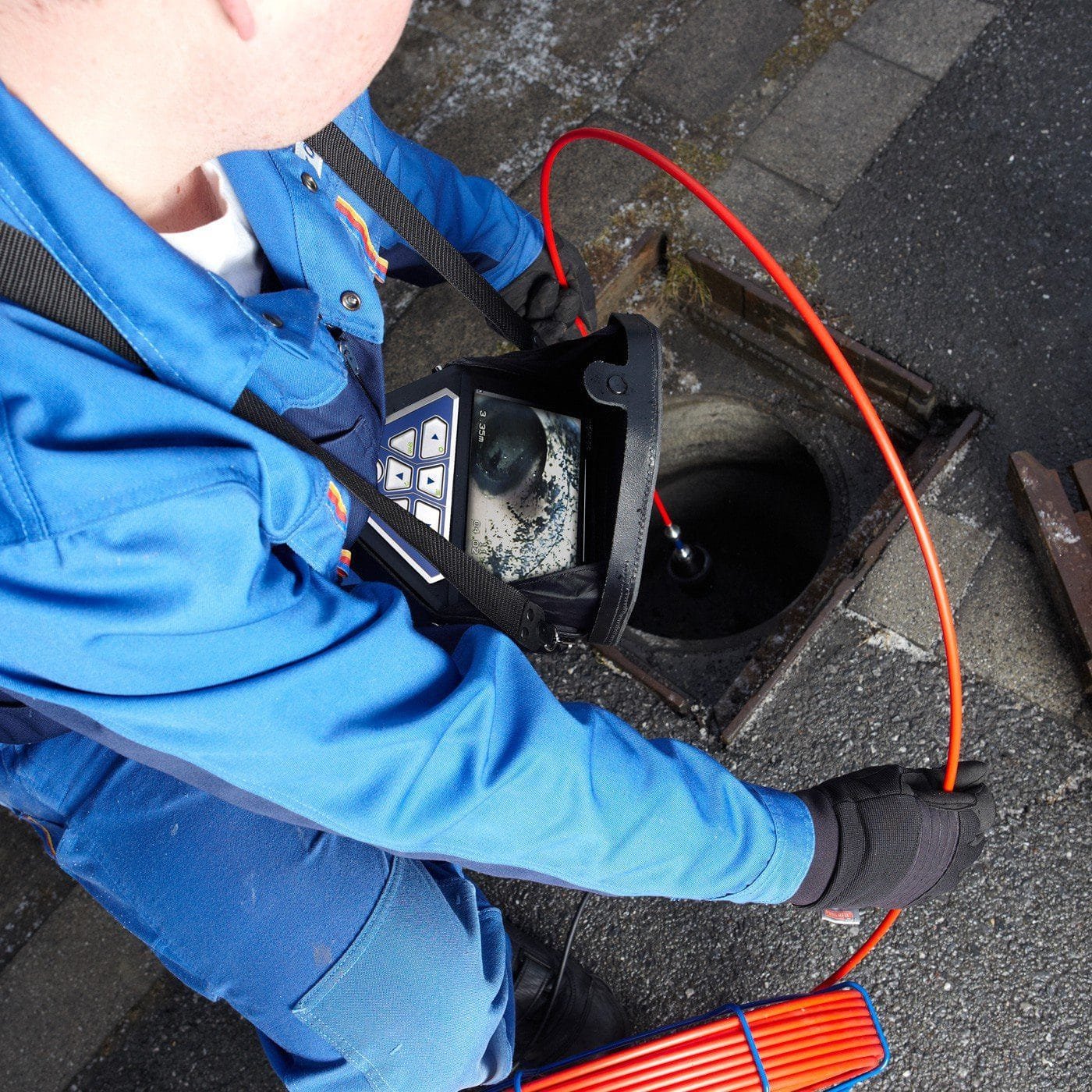

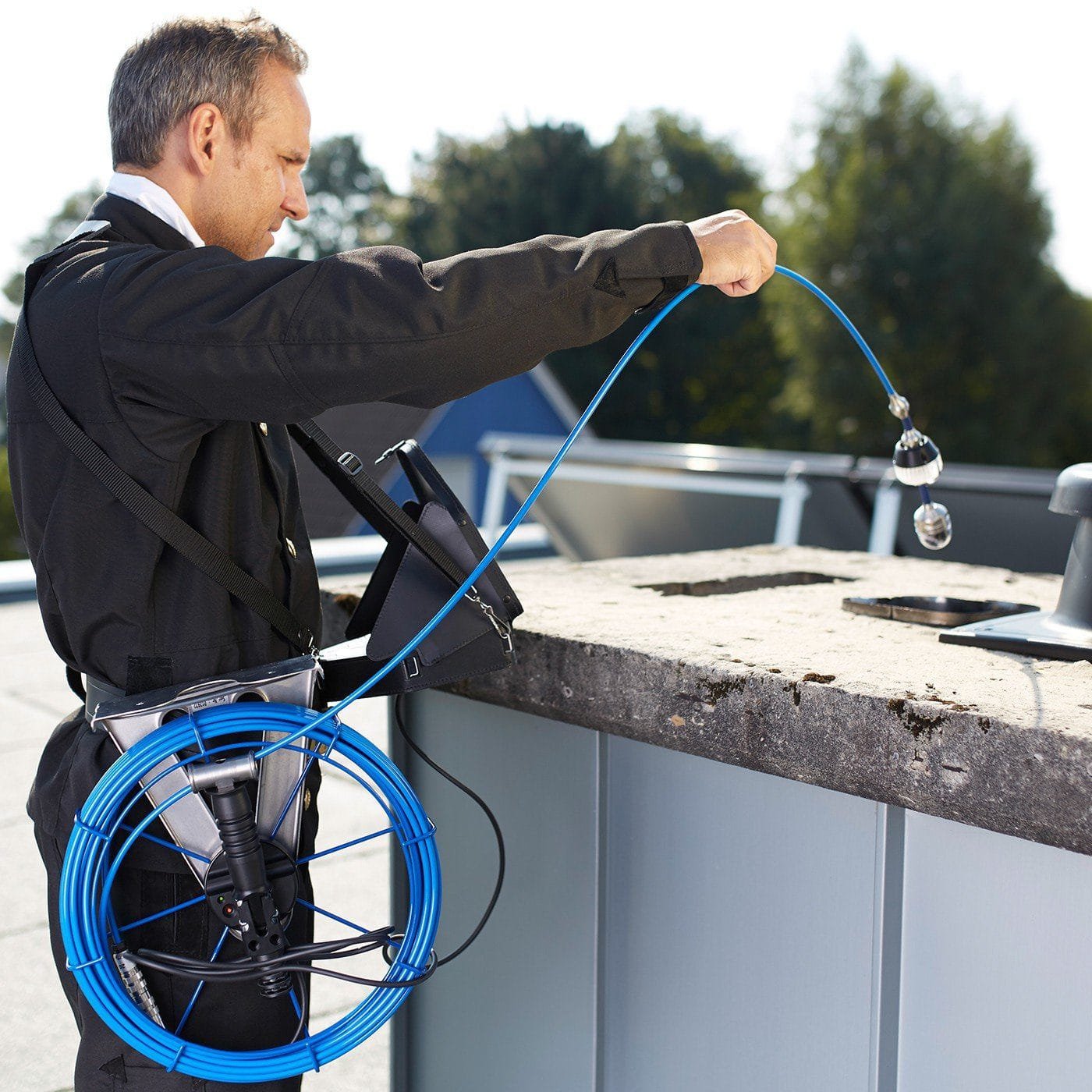

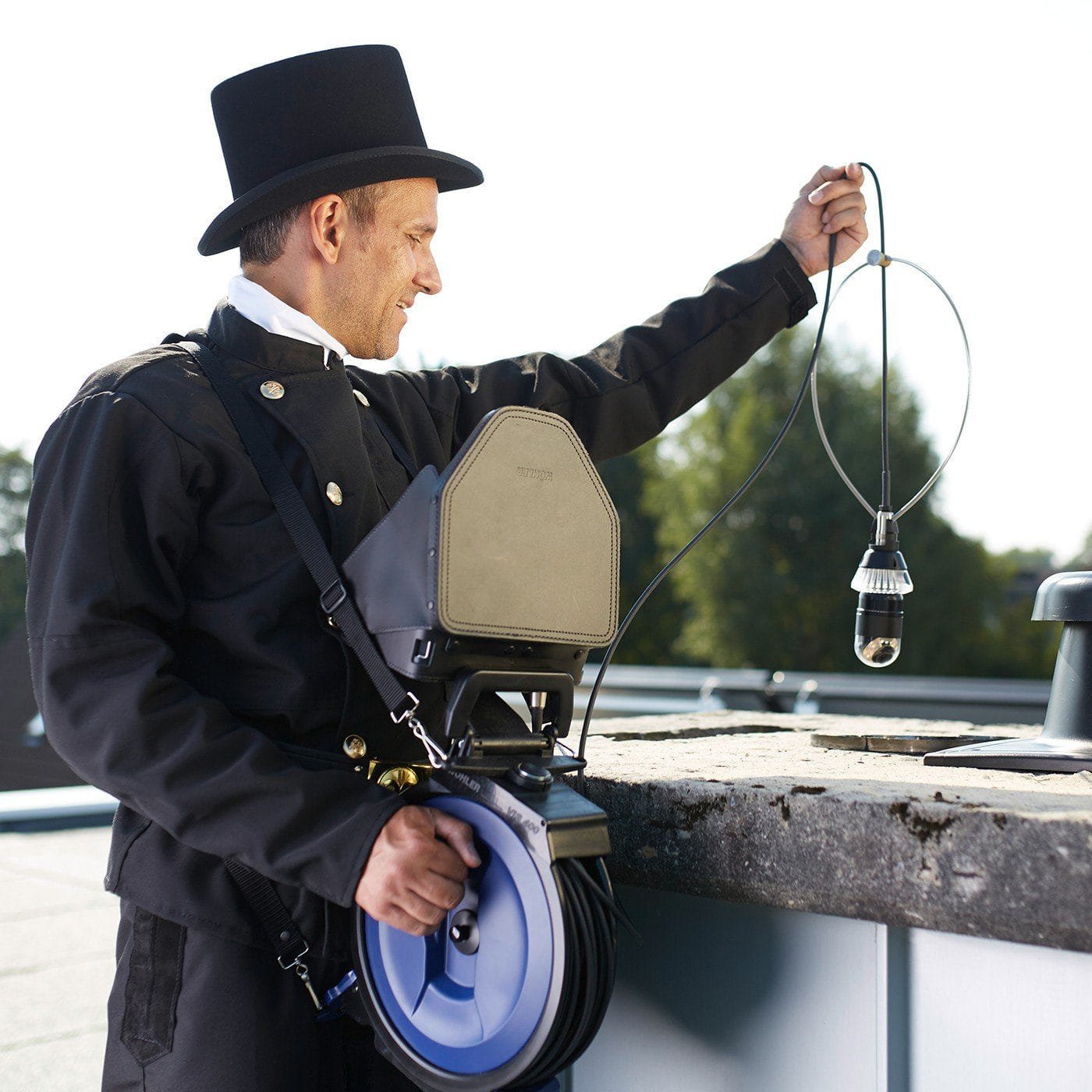

The carry strap around your neck and the monitor in front of your chest, one hand guides the camera cable, the other precisely controls the pan and tilt camera head via the typical Wohler keypad: That is how stable the new Wohler VIS 400 video inspection camera is and how easy it is to work with while standing on steep roofs inspecting chimneys or during pipeline and sewer inspections. From chimney sweeps to plumbers, the Wohler VIS 400 is a must have when it comes to video inspection equipment.
Modular by design, it is possible to combine the Wohler VIS 400 Visual Inspection System with a variety of camera vipers, camera cables and camera heads. For instance, simply connect either the Wohler 2″ dia or the 1 1/2″ dia pan & tilt camera head to carry out a variety of inspections. Both of these cameras pan 360 and tilt 180 while offering the best possible lighting. After panning and tilting, the home function automatically aligns the angle of the 1 1/2″ dia color camera to straight ahead with a simple push of a button.
View, speak and save
The Wohler VIS 400 will make a video recording of the inspected line run. When damage is discovered, begin the voice recording function to annotate the recording. As well as recording video, you may also take and save still photos at the press of a button.
Knowing where really matters
To be able to assess and specifically target repair work, we at Wohler have perfected the technique of precisely locating the camera head. The distance and the position of the head are displayed on the monitor. The top and bottom of the pipe are displayed on the monitor at all times, even if the camera is being guided up or down or if it is moving left or right. It is even possible to locate the 1 1/2″ dia color camera head wirelessly – utilizing the new Wohler L 200 Locator.
Borescopes / Boroscopes/Video Borescopes Template | |
|---|---|
| Screen Size | 7 IN |
| Screen Type | TFT LCD |
| Video Resolution (Boroscopes) | 0.10ft |
| Video Output Format | NTSC |
Product General Attributes | |
| Unique Features | black case new verison 2015 |
| Interfaces I/O | USB |
| Storage | SD Card |
| Product Weight | 4 LBS |
| Battery Type | NimH |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Germany |
| Other Information | Dimensions housing without pouch:: 8″ x 8″ x 2″ Dimensions housing with pouch:: 9″ x 9″ x 3″ Weight:: Without pouch 3 lbs; with pouch 4 lbs |
