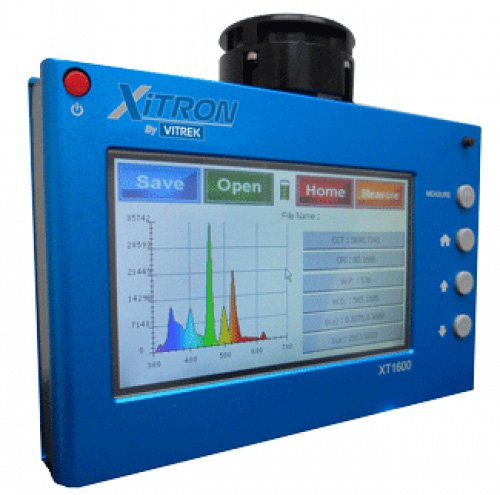

XiTron 822-XT1600 Portable Micro-Spectrometer

Captures any visible light and immediately display the full spectrum and all test data. The spectrometer features an intuitive touch panel interface and automated report generation.

> Lux – illumination value

> Lumen – luminous flux

> CRI – color rendering index according to CIE

> CCT correlated color temperature

> CRI/CQS – color rendering index/color quality scale

> PPF – Photosynthetic Photon Flux Density, E_μ MOL

> COLOR – color coordinates according to CIE 1931 and CIE 1976

Resolution: 4.2-5nm FWHM

Spectral Range: 380-780nm

Number of Pixels: 2048

Measurement Range: 1-200.000 lx

Integration Time: 1ms to 1 s

Signal-to-noise range: 150:1

Spectral Deviation: 0.12%

Spectroradiometric Accuracy: 0.4%

Storage Media: 1GB built-in Flash memory, optical Micro SD card 4GB

Power: Power lithium-ion battery 2600 m Ah

Power Consumption: ~ 15W

Power Supply Input: AC 100-240V 50/60 Hz 0.1 A ~ 0.2 A

Ambient Temperature: -10 ~ 50 Degrees C

Dimensions: 148.5 (W) x 96 (D) x 24 (H) mm

Weight: 550g/630g
