Yamato DN-611IE – Programmable Inert Gas Oven, 223L, 220V
18 people are viewing this product right now
$10,305.00
Shipping calculated at checkout.
Estimated delivery:3 days
Programmable Inert Gas Oven 223L, 220V. (Does not include plug.)
- Internal capacity: 223L
- Power source: 220V 19A (no plug, round terminal)
- Forced convection system
- Heat resistance test and heat treatment of up to 360°C
- Standard equipped with various operation modes such as program operation and calibration offset function, power failure recovery mode selection, and user configuration information saving
- Repeatable operation function up to maximum 99 steps, 99 patterns controller with repeat function
- Nâ‚‚ gas flow amount controllable
- Simple operation by interactive key input
Guarantee Safe and Secure Payment Checkout
Description
Yamato DN-611IE
- Internal capacity: 223L
- Power source: 220V 19A (no plug, round terminal)
- Forced convection system
- Nâ‚‚ gas flow amount controllable
- Simple operation by interactive key input
Programmable Inert Gas Oven, 223L, 220V
The Yamato DN-611IE is a Programmable Inert Gas Oven, Inert ovens suitable for temperature test and heat treatment in a non-oxidizing environment, by introducing Nâ‚‚ gas into the chamber
Enhanced safety countermeasure, including self-diagnostic functions, digital setting, independent overheat prevention device and electric leakage breaker. In case of door opening during operation, fan and heater turn OFF by door switch
Control Panel
Method

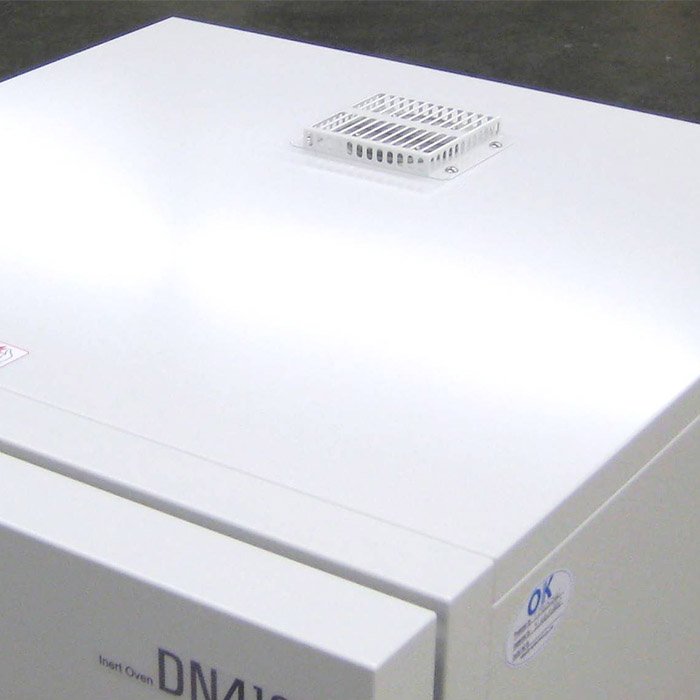

DN Series Comparison
| DN411IE | DN611IE | |
| Temp. Gradient | 12°C (at 360°C) | 20°C(at 360°C) |
| Nitrogen Substitution Time Required | ~30 min. | ~70 min. |
| (ordinary temp with oxygen concentration of 2%) | (ordinary temp with oxygen concentration of 2%) | |
| Heater | SUS Pipe Heater 3.0kW | SUS Pipe Heater 4.0kW |
| Internal Dimensions WxDxH | 470 x 450 x 450 mm | 620 x 600 x 600 mm |
| External Dimensions WxDxH | 640 x 695 x 915 mm | 790 x 845 x 1065 mm |
| Internal Capacity | 95L | 223L |
| Shelf Support Qty. / Pitch | 12pcs. / 30mm | 17pcs. / 30mm |
| Power Source | Single-phase 220V 13.5A (no plug, round terminal) | Single-phase 220V 19A (no plug, round terminal) |
| Weight | ~90kg | ~130kg |
Incubators | |
|---|---|
| Controls (Life Science) | Digital |
| Capacity (Incubator/Oven/Chamber) | 223 L |
| Voltage (Life Science) | 208-240 VAC Only |
| Max Temp (Incubator/Oven/Chamber) | 360 C |
| Min Temp (Incubator/Oven/Chamber) | 35 C |
| Special Chamber Functions (incl or optional) | Test Program / Profiler, Timer |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 287 LBS |
| Product Height | 42 IN |
| Product Length | 33 IN |
| Product Width | 31 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsComparison
| Weight | 287 lbs |
|---|---|
| Dimensions | 33 × 31 × 42 in |
