Yamato DNE-601 – Energy Saving Forced Convection Oven Programmable, 150L, 115V
14 people are viewing this product right now
$6,204.00
Shipping calculated at checkout.
Estimated delivery:5 days
Energy Saving Forced Convection Oven Programmable 150L 115V
- Internal capacity: 150L
- Power source: 115V 11A (with plug)
- High precision controller allows high performance temperature control and display of CO₂ and power discharge
- Heat tightness and insulation design of the chamber achieves an energy-saving rate of about 40% at constant temperature compared to previous models
- Maximum temperature reaching time reduced by 15 minutes (no-load) compared to previous models
- Program operation with a maximum of 99 steps, 99 patterns repeatable
- Standard equipped with various support functions such as calibration offset, power failure recovery mode, save and access of user setting information, as well as other operation modes

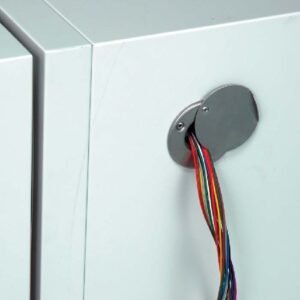

- Data acquisition from internal test device possible because of cable holes
Guarantee Safe and Secure Payment Checkout
Description
Yamato DNE-601
- Internal capacity: 150L
- Power source: 115V 11A (with plug)
- High precision controller allows high-performance temperature control and display of CO₂ and power discharge
- Heat tightness and insulation design of the chamber achieve an energy-saving rate of about 40% at constant temperature compared to previous models
Energy Saving Forced Convection Oven Programmable, 150L, 115V
High-performance environment-friendly eco-oven that reduces power consumption significantly.
Operation and functions
- Maximum temperature reaching time reduced by 15 minutes (no-load) compared to previous models
- Program operation with a maximum of 99 steps, 99 patterns repeatable
- Standard equipped with various support functions such as calibration offset, power failure recovery mode, save and access of user setting information, as well as other operation modes
- Data acquisition from internal test device possible because of cable holes
- Easy system upgrade with various option settings
Safety features
- Standard equipped with various self-diagnostic functions such as independent overheat prevention device, overcurrent circuit breaker, and key lock function
DNE Series Comparison
| MODEL | DNE-401 | DNE-601 | DNE-811 | DNE-911 |
| DNE-411 | DNE-611 | |||
| Operating Temp. Range | RT+20°C to 210°C | RT+20°C to 210°C | RT+15°C to 210°C | RT+15°C to 210°C |
| Temp. Gradient*¹ | 6°C (at 210°C) | 8°C (at 210°C) | 8°C (at 210°C) | 10°C (at 210°C) |
| Temp. Rise Time*¹ | ~60 min. | ~70 min. | ~45 min. | ~60 min. |
| Heater / Insulating Material | Stainless pipe heater / Glass wool | Stainless pipe heater / Glass wool | Stainless pipe heater / Glass wool | Stainless pipe heater / Glass wool |
| 1.1kW | 1.2kW | 1.2kW x 2 | 1.5kW x 2 | |
| Fan Motor | 10W | 10W | 30W | 30Wx2 |
| Exhaust Port | 33mm I.D. 2pcs. (top) | 33mm I.D. 2pcs. (top) | 33mm I.D. 2pcs. (rear) | 33mm I.D. 2pcs. (rear) |
| Internal Dimensions*² WxDxH | 450x450x450mm | 600x500x500mm | 600x500x1000mm | 1090x500x1000mm |
| External Dimensions*² WxDxH | 580x646x860mm | 730x696x910mm | 730x695x1660mm | 1220x695x1660mm |
| Internal Capacity | 90L | 150L | 300L | 540L |
| Shelf Plate With Standard Load | ~15kg/pcs. | ~15kg/pcs. | ~15kg/pcs. | ~15kg/pcs. |
| Shelf Rest Step Number / Shelf Rest Pitch | 11 steps / 30mm | 13 steps / 30mm | 29 steps / 30mm | 29 steps / 30mm x 2 |
| Power Source 50/60Hz | AC115V 10A (with plug) AC220V 5.5A (no plug, round terminal) | AC115V 11A (with plug) AC220V 6A (no plug, round terminal) | AC220V 11.5A (no plug, round terminal) | AC220V 14A (no plug, round terminal) |
| Weight | ~63kg | ~77kg | ~92kg | ~185kg |
| Shelf Plate / Bracket | 2 pcs. / 4 pcs. | 2 pcs. / 4 pcs. | 4 pcs. / 8 pcs. | 8 pcs. / 16 pcs. |
*¹ Temperature Accuracy / Rise time Standard: Testing Machinery Association of Japan. Temperature Fluctuation/Gradient Standard: Japanese Industrial Standard. Performance data above is based on 115V or 220V AC supplied power, 23°C±5°C (room temperature), 65%RH ±20% humidity, maximum air speed (FAN setting 10), damper closed, and no process load.
*² Protrusions excluded
Incubators | |
|---|---|
| Controls (Life Science) | Digital |
| Capacity (Incubator/Oven/Chamber) | 150 L |
| Voltage (Life Science) | 100-120 VAC Only |
| Max Temp (Incubator/Oven/Chamber) | 210 C |
| Min Temp (Incubator/Oven/Chamber) | 40 C |
| Special Chamber Functions (incl or optional) | Test Program / Profiler, Timer |
Product General Attributes | |
| Unique Features | Energy Saving |
| Warranty | 1 YEARS |
| Interfaces I/O | Other |
| Product Weight | 169.8 LBS |
| Product Height | 35.8 IN |
| Product Length | 27.4 IN |
| Product Width | 28.7 IN |
| Shipping Weight | 195.3 LBS |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsComparison
| Weight | 169.8 lbs |
|---|---|
| Dimensions | 27.4 × 28.7 × 35.8 in |
