Description

Yamato REV-202M-BOA
- Cables stored neatly inside the AC adapter holder at the back of the main unit

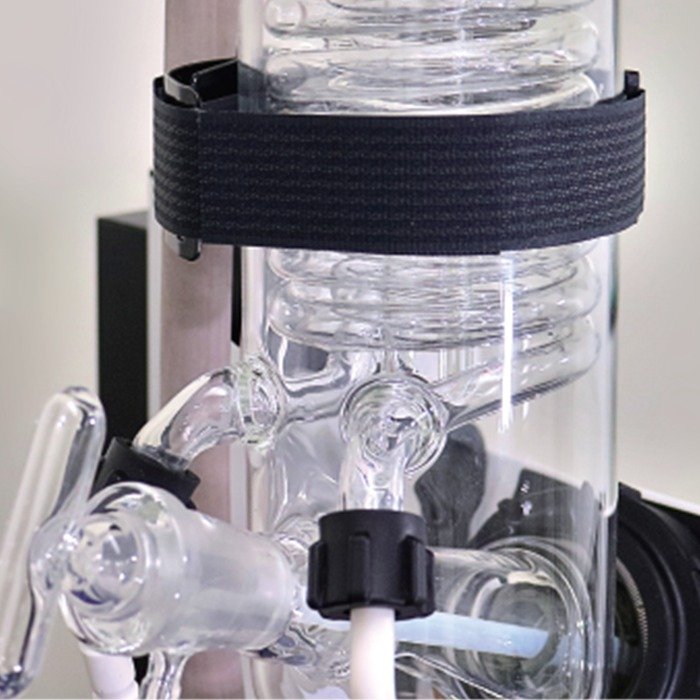

- Equipped with a condenser insulation kit, which prevents condensation on the condenser’s surface
- Anti-liquid stagnation glass condenser design, which improves durability of the vacuum seal
- Has a servo-type motor with strong high torque, which sustains a stable rotation in large capacity flasks

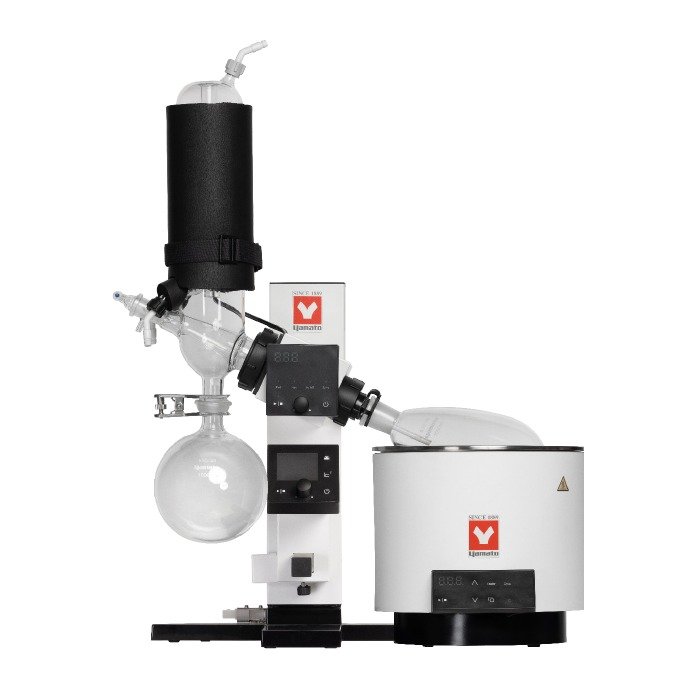

Digital Rotary Evaporator w/ Vacuum Controller, BO302-A Oil Bath (5L) & Glassware Set B, 115V
The Yamato RE202-A RE212-A / REV202M-A REV212M-A rotary evaporator series is all about space and power. If you want a compact machine with incredible functionality, then this rotary evaporator series is for you. These rotavaps are particularly engineered for a small but growing lab or research facility.
This rotary evaporator unit is a market leader in the rotation speed range at 5~315 rpm, which allows you more room to determine optimal evaporation performance. With its set inversion function, where glassware and bath can be set on either side, left or right, you won’t have to spend your time worrying about space. The rotary evaporator units also have servo-type motors, which maintain stability even in large-capacity flasks. With these standard rotary evaporators in your lab, you will achieve consistent productivity without sacrificing space and sample integrity.
REV Series Comparison
| SKU | Power Supply | W/ BM302A Water Bath | W/ BM312A Water Bath | W/ BO302A Oil Bath | W/ BO312A Oil Bath | Glassware Set |
| REV-202M-A | 115V | No | No | No | No | None |
| REV-212M-A | 220V | No | No | No | No | None |
| REV-202M-AWA | 115V | Yes | No | No | No | Set A |
| REV-202M-BWA | 115V | Yes | No | No | No | Set B |
| REV-212M-AW2A | 220V | No | Yes | No | No | Set A |
| REV-212M-BW2A | 220V | No | Yes | No | No | Set B |
| REV-202M-AOA | 115V | No | No | Yes | No | Set A |
| REV-202M-BOA | 115V | No | No | Yes | No | Set B |
| REV-212M-AO2A | 220V | No | No | No | Yes | Set A |
| REV-212M-BO2A | 220V | No | No | No | Yes | Set B |
Rotary Evaporators | |
|---|---|
| Automated | No |
| Voltage (Life Science) | 100-120 VAC Only |
| Max RPM (Life Science) | 315 RPM |
| Max Temp (Chillers/Baths) | 180 C (356 F) |
| Reservoir Capacity (Baths) | 5 L (5000 ml) |
Product General Attributes | |
| Unique Features | Includes VS102S Vacuum Controller and BO302 Oil Bath |
| Warranty | 1 YEARS |
| Product Height | 21.02 IN |
| Product Length | 14.37 IN |
| Product Width | 29.29 IN |
| Shipping Weight | 30 LBS |
