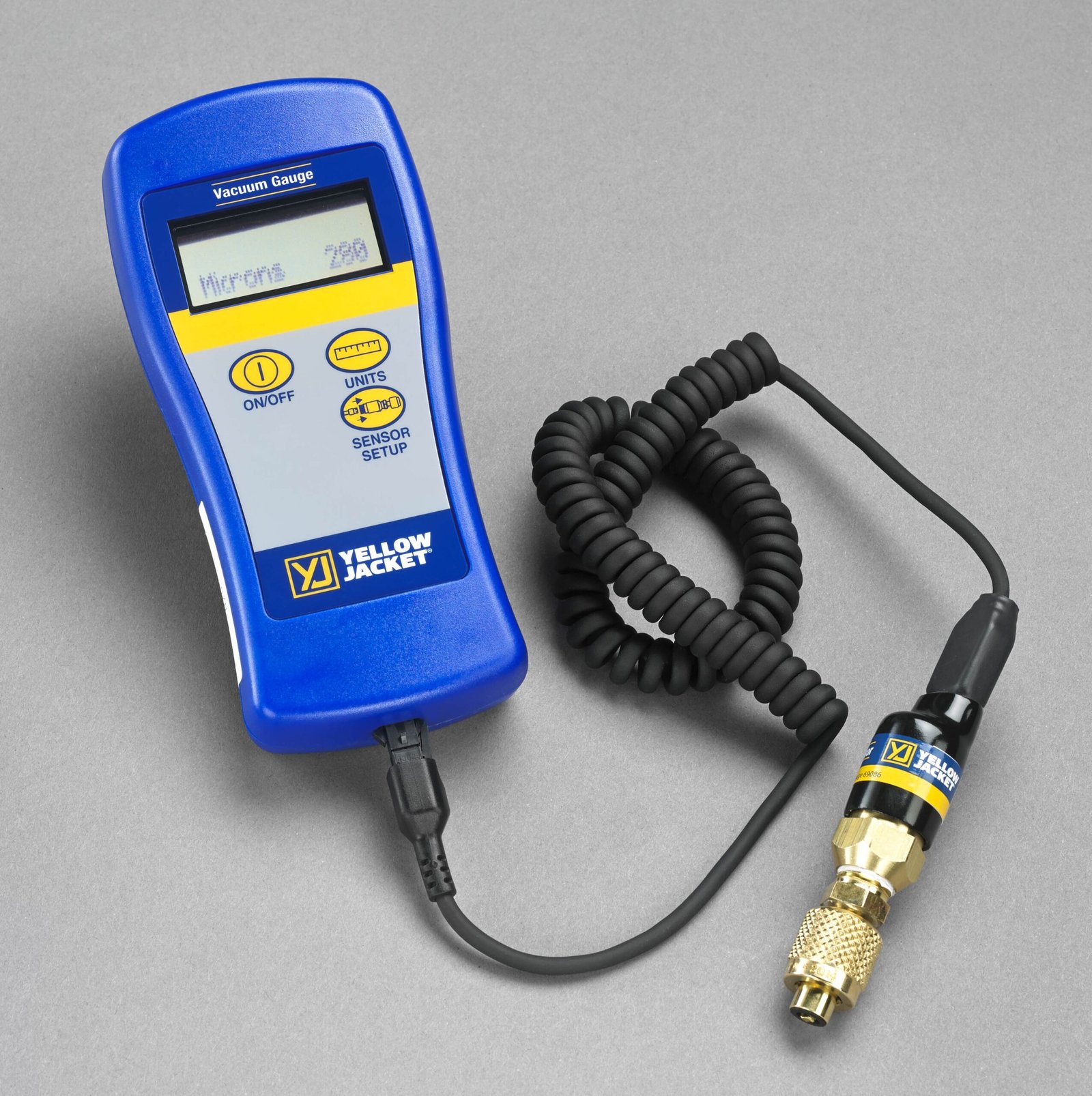

Yellow Jacket 69086 Digital Vacuum Gauge
30 people are viewing this product right now
$363.72
Shipping calculated at checkout.
Estimated delivery:3 days
HANDHELD VACUUM GAUGE KIT
- Unique patented thermal conductivity sensor automatically compensates for temperature
- Replaceable, cleanable, plug-in sensor (Part #69087) handles 450 psi positive pressure
- Displays seven different units of measurement (microns, milliTorr, Torr, millimeters of mercury, millibar, kiloPascal and Pascal)
- 12″ coiled sensor cord stretches to 24″ for easy reach, connectivity and readability of display
- Magnetized on back for secure, upright positioning on any metal surface
- Low battery indicator
- Automatic shut-off after 20 minutes
- Calibration standards traceable to NIST
- 32° to 122°F (0° to 50°C) operating temperature range
- 14 oz. (392 g) with battery
- Approximately 25 hours continuous battery life
- Made in the USA
Guarantee Safe and Secure Payment Checkout
Description
Yellow Jacket 69086 Digital Vacuum Gauge
- Low battery indicator
- Automatic shut-off after 20 minutes
- Calibration standards traceable to NIST
- 32° to 122°F (0° to 50°C) operating temperature range
- 14 oz. (392 g) with battery
This easy-to-use gauge shows that air and moisture have been removed from the system. Simple push of a button changes the display readout between 7 units of measurement. Each displays from atmosphere to 10 microns (bargraph indication above 25000 microns) to let you know that your vacuum pump is clean and performing properly. If the sensor gets dirty, simply plug a new sensor into the gauge, run through a quick calibration process and be back on the job within minutes.
Product General Attributes | |
|---|---|
| Product Height | 2.50 IN |
| Product Length | 13.25 IN |
| Product Width | 11.00 IN |
| HTS/Schedule B Number | 9026208000 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
BrochuresManuals
| Dimensions | 13.25 × 11 × 2.5 in |
|---|
