Yellow Jacket 69111 – RealTorque 1/4 Inch SuperHeat Kit with Torque CRT

• RealTorque 1/4” SuperHeat Kit with Torque CRT
• Core removal improves the speed of recovery and evacuation
• Torque mechanism clicks when Schrader core has been properly tightened to 3-5 in-lb
• Side port provides attachment location for vacuum gauge
• Available in 1/4” and 5/16” sizes

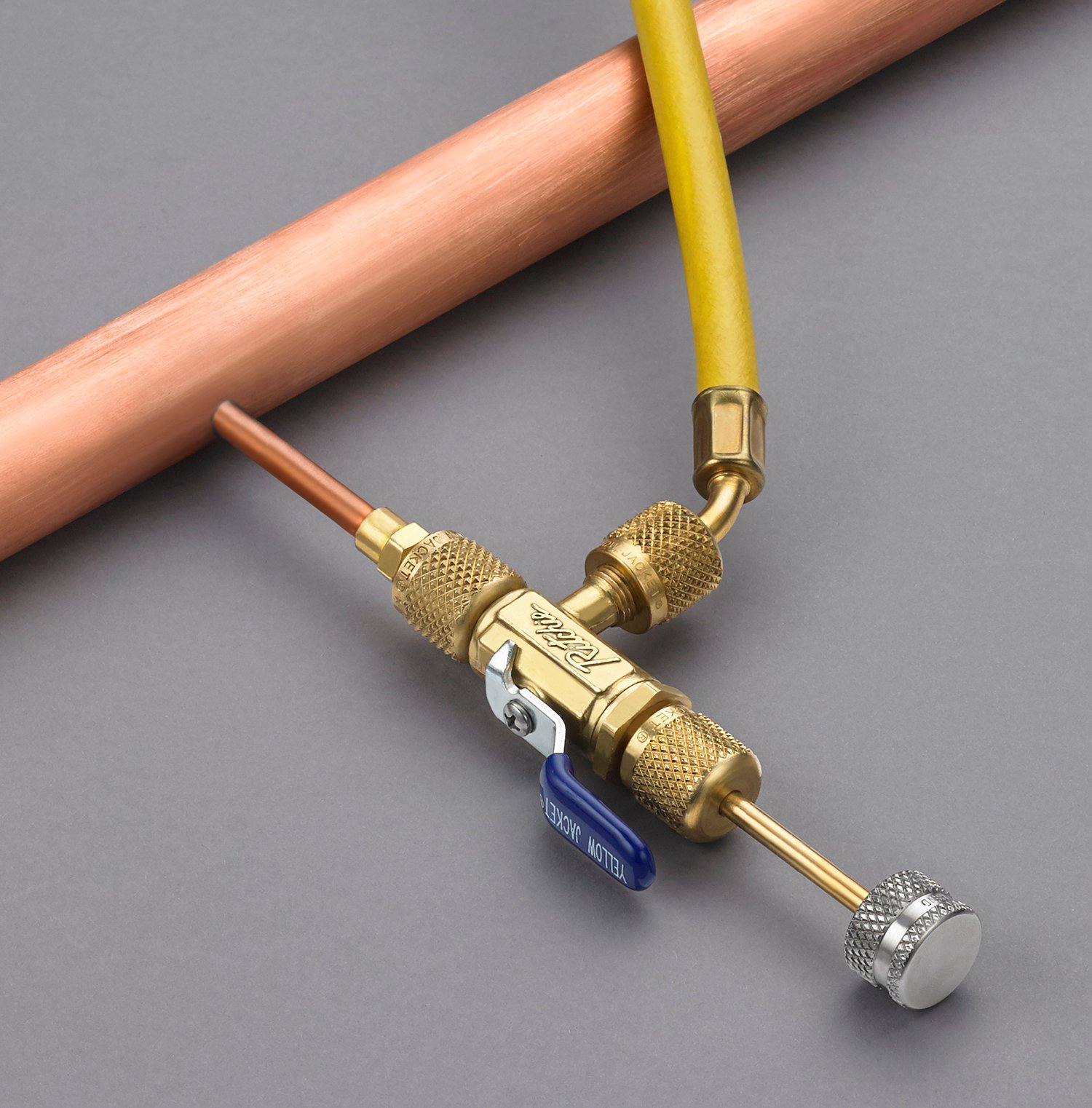

The RealTorque Core Removal Tool is essential for effectively removing and replacing HVAC/R system Schrader cores

Removal of system Schrader cores can greatly increase the speed of recovery and evacuation. Once charging is complete, it is important that the system Schrader cores be properly tightened to prevent leaks. The RealTorque Core Removal Tool from YELLOW JACKET has an integrated torque mechanism that clicks as soon as the Schrader core has been tightened to the manufacturer’s recommended torque value of 3-5 in-lb. This provides assurance that the Schrader core is properly tightened on every job and minimizes the chances of leaks from this area of the system.

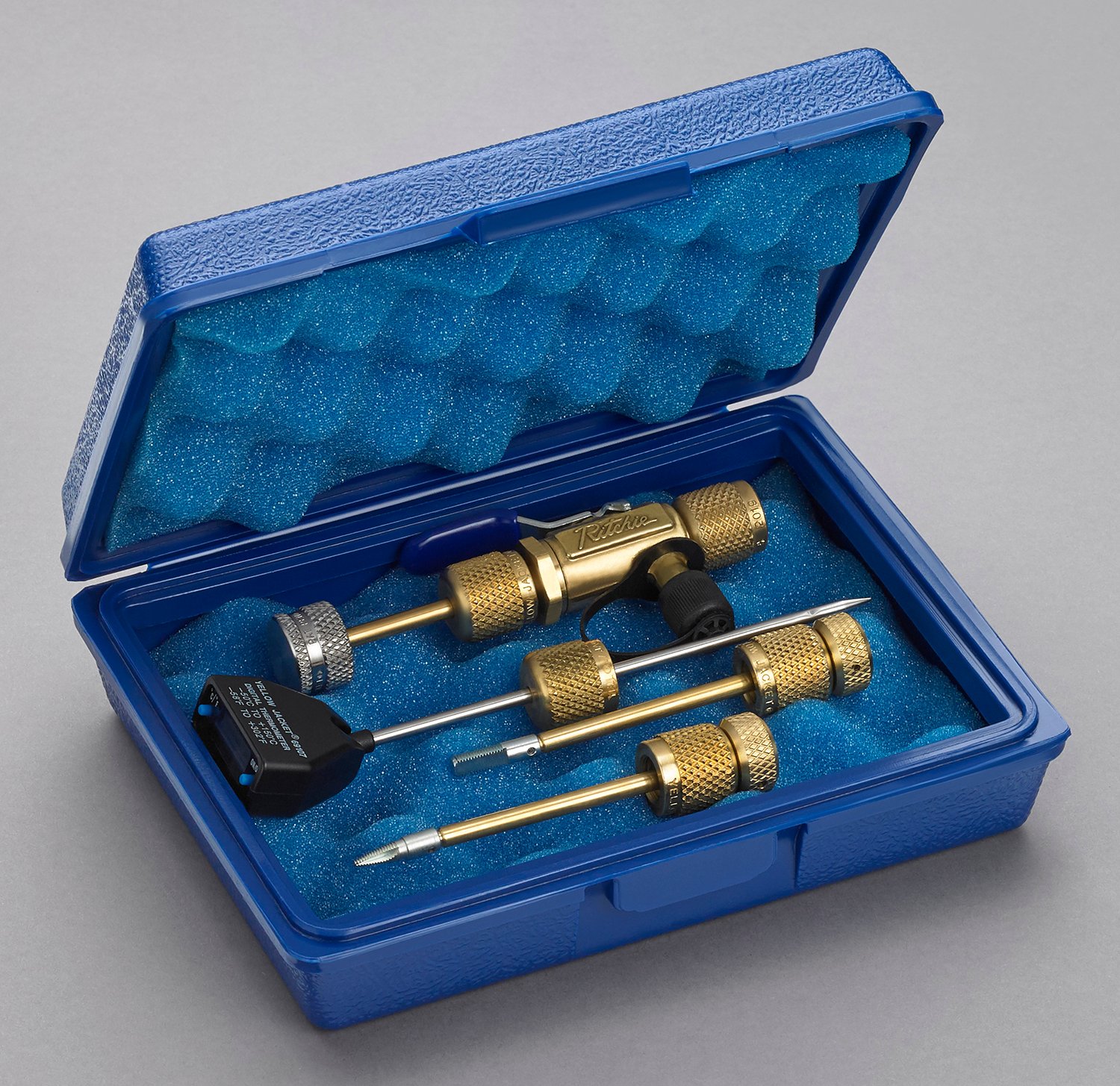

RealTorque Superheat Kits (69111 & 69112)

The RealTorque Superheat Kits include all the tools necessary for accurate system superheat calculations. The thermometer and core removal tool with a side port allows for the pressure and temperature measurements to be taken at the same system location. Compare these measurements to the system refrigerant P/T chart to determine the system superheat. Once charging is complete, use the RealTorque Core Removal tool to properly tighten the system Schrader core to the manufacturer’s recommended torque value of 3-5 in-lb with its integrated torque mechanism. The kits also include all the tools necessary to replace Schrader cores without losing system pressure even if the core or mating core threads are damaged. Kits are available for 1/4″ (69111) and 5/16” (69112) systems.
