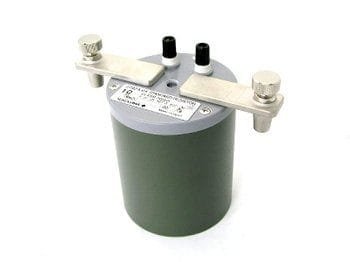

Yokogawa 2792A06 100 ohm Standard Resistor

Standard Resistor, 100 ohm

The Yokogawa 2792 Series of Standard Resistors are Low to High-value resistance standards which can be used for accurate DC Measurements in combination with a potentiometer or bridge. The different models available range from 0.001Ω to 1mΩ. The resistor elements of the 0.001Ω to the 10kΩ models (4-terminal construction) are made with selected manganin wire, and the models which range from 100kΩ to 1MΩ (three terminal construction) are made with nickel and chromium wire. All resistors are fully processed to assure the permanence of resistance.
