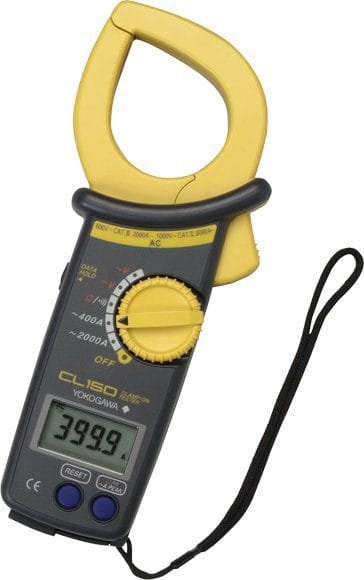

Yokogawa CL150 – Clamp-on Tester (2000 A AC)
36 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
ACA, ACV, DCV, OHM, Continuity Check
- Maximum AC current = 2000 A
- Maximum DC current = N/A
- Maximum AC voltage = 750 V
- Maximum DC voltage = 1000 V
- True RMS = No
- 2.1 inch diameter of measurable conductor
- AC/DC voltage and resistance measurements; DC output function
- Mean value display detection method
- Rated for use Cat. II – 750 V; Cat. III – 600 V
- Approved to safety standards EN61010-1, EN61010-2-031, EN61010-2-032
Guarantee Safe and Secure Payment Checkout
Description
Yokogawa CL150 – Clamp-on Tester (2000 A AC)
- Maximum AC current = 2000 A
- Maximum DC current = N/A
- Maximum AC voltage = 750 V
- Maximum DC voltage = 1000 V
- True RMS = No
The Yokogawa CL Series of clamp-on testers consists of AC, AC/DC, DC and leakage current clamps with various ranges and dimensions. There are multiple options for the CL Series including RMS, Mean, Temperature, frequency, and recorder output.
CL Series Features:
- Lightweight, compact design
- Data hold on all ranges
- True RMS or Mean value detection method
- Approximately 2 second response time
- Auto-off or sleep function after 10 minutes
- Approved for conformity to safety standards
The chart below provides a brief breakdown of the characteristics and measurement functions of the CL Series Testers for AC Current:
| For AC Current | CL120 | CL150 | CL155 |
| Diameter of conductor | 1 inch | 2.1 inch | 2.1 inch |
| Detection Method | Mean value | Mean value | True RMS |
| Frequency | 40Hz to 1 kHz | 40Hz to 1 kHz | 40Hz to 1 kHz |
| AC Current | 20/200A | 400/2000A | 400/2000A |
| DC Current | |||
| AC Voltage | ✔ | ✔ | |
| DC Voltage | ✔ | ✔ | |
| Continuity check | ✔ | ✔ | |
| Frequency measurement | |||
| Data hold | ✔ | ✔ | ✔ |
| Peak hold | ✔ | ✔ | |
| Recorder output |
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | No |
| Maximum Current AC | 2000 A |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 2.1 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Both |
| In-Rush Current | No |
Product General Attributes | |
| Unique Features | Analog Output |
| Warranty | 12 MONTHS (1 YEARS) |
| Product Weight | 470 GRAMS (1.04 LBS) |
| Product Height | 49 MM (1.93 IN) |
| Product Length | 105 MM (4.13 IN) |
| Product Width | 247 MM (9.72 IN) |
| Shipping Weight | 1.80 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.0040 |
| ECCN Number | EAR 99 |
| Calibration Included | Factory Calibration |
| Country of Origin | Thailand |
| Shipping Height | 2.25 IN |
| Shipping Length | 10.50 IN |
| Shipping Width | 5.50 IN |
You must be logged in to post a review.
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 105 × 247 × 49 in |
