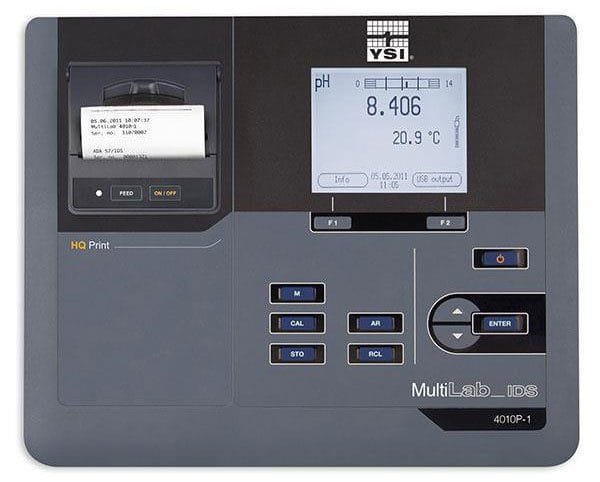

YSI 4010P-1 IDS Digital Multiparameter Single Channel Benchtop Instrument With Integrated Thermal Printer

YSI 4010P-1 – IDS Digital Multiparameter Single Channel Benchtop Instrument With Integrated Thermal Printer

The YSI MultiLab line of instruments provide easy to use and easy- to-calibrate menu-driven operation ideal for any laboratory. These one, two, or three channel benchtop meters for the measurement of pH, ORP, conductivity and/or optical-based dissolved oxygen (BOD) are ideal for highly accurate lab testing.

The instruments feature a large, easy to read display, Intelligent Digital Sensors (IDS) for plug-and-play connectivity, and a 3-year instrument warranty.


Intelligent Digital Sensors (IDS)

The IDS sensors automatically store their unique serial number and calibration data. The sensors maintain their calibration data when moved from instrument to instrument and transmit this information to the new instrument so you don’t have to re-calibrate. In addition, they also digitally process the measurement signal.

• Plug-and-play connectivity in any combination with all MultiLab instruments
• Sensors store their own unique ID with serial number and calibration status
• Automatic sensor recognition with digital signal processing and data transfer
• Includes self-stirring Optical-Based DO/BOD, pH, ORP, and conductivity sensors

The CMC function displays continual monitoring of the sensor’s measuring range. The range is represented with a bar and calibration points are shown as vertical lines at the cal point. A moving cursor shows the current measured value and indicates if the measurement is within the calibrated range.


Laboratory Quality Sensor Control (QSC)

The QSC is a system to monitor the condition of the pH electrodes. An initial calibration is performed and, afterwards, the sensor status is monitored and graphically displayed.

The YSI IDS ProOBOD self- stirring optical BOD probe, powered by the instrument, has a built-in sensor guard to protect the sensing tip from damage while placing it into the BOD bottles.


Superior Bench top Measurement

The MultiLab line provides high accuracy measurements for the lab. Measure conductivity, pH, ORP, or DO for BOD calculations confidently and quickly with the full range of IDS sensors. Also capable of using non- IDS pH or ORP sensors with a simple adapter for sensors with DIN or BNC connectors.
