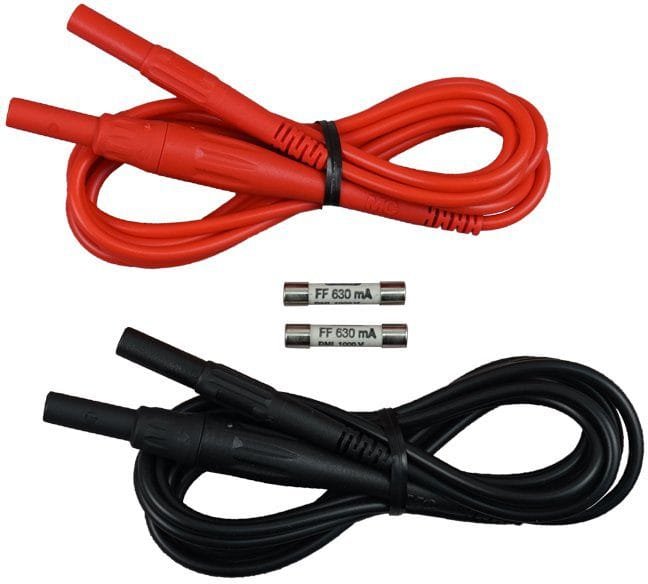

AEMC 2139.74 – Set of 2, Color-Coded Red/Black Fused Leads, 6.5ft

• Set of 2, Red and Black 6.5 ft (2m) leads
• With 4mm Plug
• 2 Fuses 0.63Z 6.3x32A 1000V UL
• Rated 1000V, CAT IV

AEMC Instruments introduces its’ high capacity fused (red/black) test lead set. They are rated up to 1000V, CAT IV in accordance with IEC/EN 61010-031. Electrical equipment has protection devices built inside them to protect the meter, but the end-user can still be exposed to potential dangers. These leads are essential to the technician who is exposed to potentially lethal currents, especially in high-energy environments.

The closer the fuse to the connection, the better protection it provides for the end-user. These leads allow for the use of standard 4mm safety probes and alligator clips providing a fuse-protected measurement. The insulation on these allows them to remain pliable even in colder temperatures. To replace the fuse in either lead, the two-part fuse connector can be easily unscrewed. The safety rating of the leads is dependent on the fuse rating. While some meters are low-cost, the cost of adding fused test leads will increase the value of the meter. The money spent on fused leads is a viable investment towards the overall protection and safety of the end-user.

Applications

• Power and energy monitoring in 480V panels
• Voltage and current monitoring in any panel using handheld instrumentation
