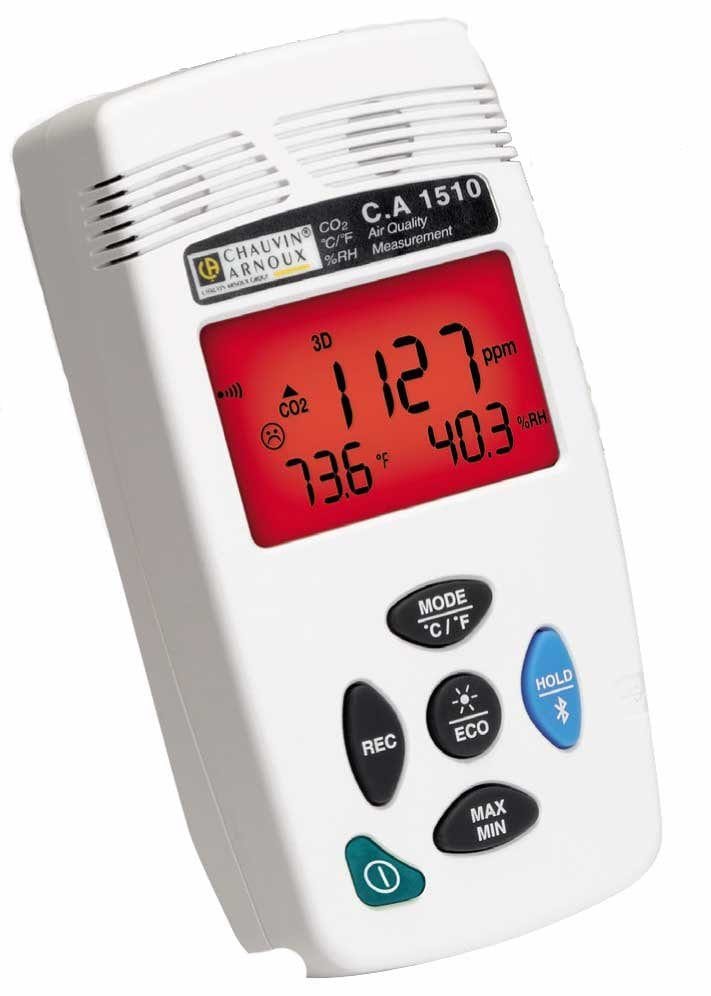

AEMC C.A 1510 – Air Quality Logger (Gray)

• C.A 1510 Air Quality Logger Model C.A 1510 {Gray}
• Simultaneously monitors and displays CO2, Temperature, and Humidity
• Stores up to 1 million measurements
• Case design facilitates both wall-mount and stand-alone use
• Easy-to-read comfort indicators based on CO2, Temperature, and Humidity

Monitor CO2, Temperature, and Humidity around you for a healthy environment. Used in Government Offices, Educational Institutions, Transportation, Workplaces, Private Residences, and more.

ENVIRONMENTAL TESTER CO2 – Temperature – Humidity

The Model C.A 1510 is compliant with the latest standards for measuring CO2 to assess ventilation system indoor air quality. It is also an accurate preliminary diagnostic indicator, because of its alarms set at 1000 ppm or 1700 ppm of CO2.

Applications

Monitor Air Quality In:

Check HVAC Ventilation System Efficiency In:

• Schools
• Hospitals
• Workplaces
• Private Residences
• Government Offices
• Plane, Bus or Train Stations, and more!

COMFORT & HEALTH

Carbon dioxide is a colorless, odorless gas. Although it is non-toxic at normal levels, at high levels it may cause difficulty in concentrating, headaches and nausea. Temperature and humidity can also contribute to the development of mold which may release allergenic and irritant substances.

Two Color Backlit Screen:

The Model C.A 1510 measures and displays three parameters simultaneously (CO 2, temperature, and relative humidity). Integrated help and visual aid are provided to assist in the interpretation of the comfort level indicators.

The display blinks with red backlighting when any of the measured parameters exceeds the user-selected threshold. The red backlighting is solid when levels exceed upper limit values.

OPERATIONAL MODES

Portable:

Start-up mode is the most responsive, taking CO2 readings every 15 seconds and the temperature and humidity readings every 2 seconds. Ideal for quickly checking air quality in multiple rooms by walking from room to room, taking measurements.

1D Mode:

Monitors CO2 levels every 60 seconds and the temperature and humidity every 2 seconds. Provides a visual indication of comfort level based on CO2 levels. Display blinks with red backlighting when CO2 level exceeds 1000 ppm. Audible alarm sounds if the level exceeds the alarm threshold.

3D Mode:

Monitors CO2 levels every 60 seconds and the temperature and humidity every 2 seconds. Provides a visual indication of comfort level based on all three measurements. Display blinks with red backlighting when CO2, temperature, or humidity levels exceed the threshold. Audible alarm sounds if the level exceeds the alarm threshold.

ECO (Energy Saving) Mode:

Used for long-term monitoring. Monitors CO2 levels every 10 minutes and the temperature and humidity every 5 seconds. Backlighting and alarms are deactivated. The C.A 1510 goes into sleep mode between user-programmable hours to conserve battery life. Times can be programmed through the AQR Software.

COMMUNICATIONS

Two communication modes are available:

USB or Bluetooth. They are used to configure recording, remote display on a PC or Android tablet, and data display of trend graphs or tabular listings. They can also be used to export the data into Excel, to calculate the confinement index with a selection of periods aligned to when people are present, and to generate reports.
