AEMC C.A 6116N Kit – Multi-Function Installation Tester Kit

• Type-B RCD testing is available
• Integrated fuse table for quick reading of the results on the instrument
• Li-Ion battery for a longer battery life
• Loop measurement with 1 mΩ resolution

The C.A 6116N is an ALL-IN-ONE instrument for testing electrical installations in compliance with the national and international standards (IEC 60364-6, NF C 15-100, VDE 100, XP C 16-600, etc). It combines design, ergonomics, simplicity, performance, rapidity, and accuracy.

Suitable for all neutral systems (TT, TN, IT), it is ideal for all sectors: industry, tertiary and residential.

Ergonomics

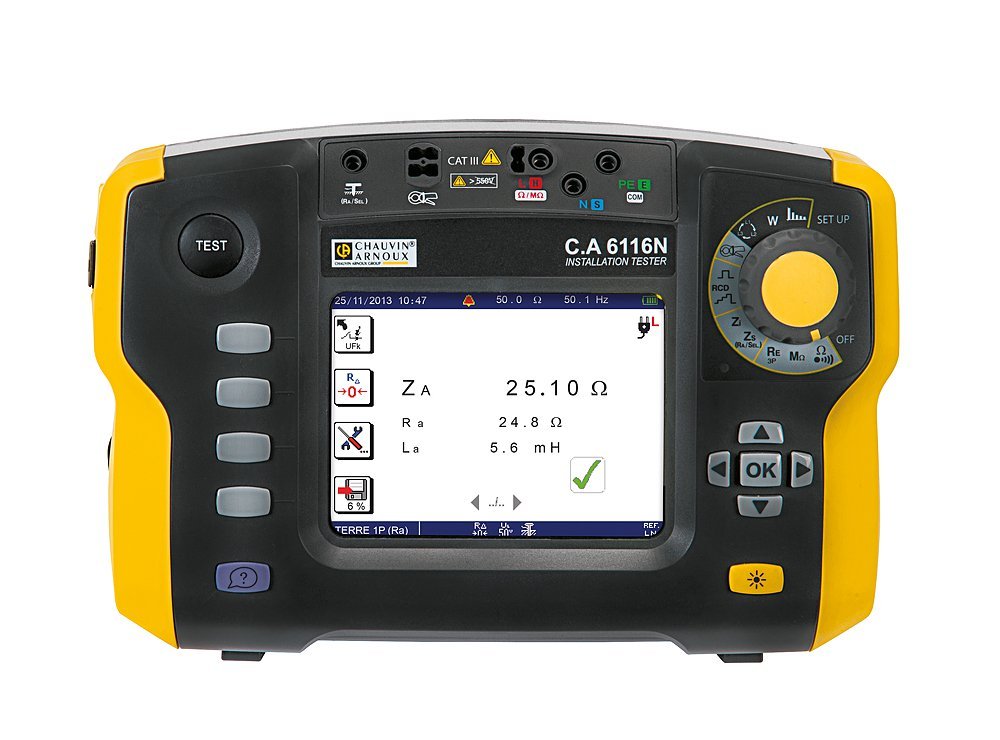

The rugged, compact C.A 6116N is specially designed for quick and effective familiarization. large LCD graphic color display with backlighting, users can view all the crucial results at a glance.

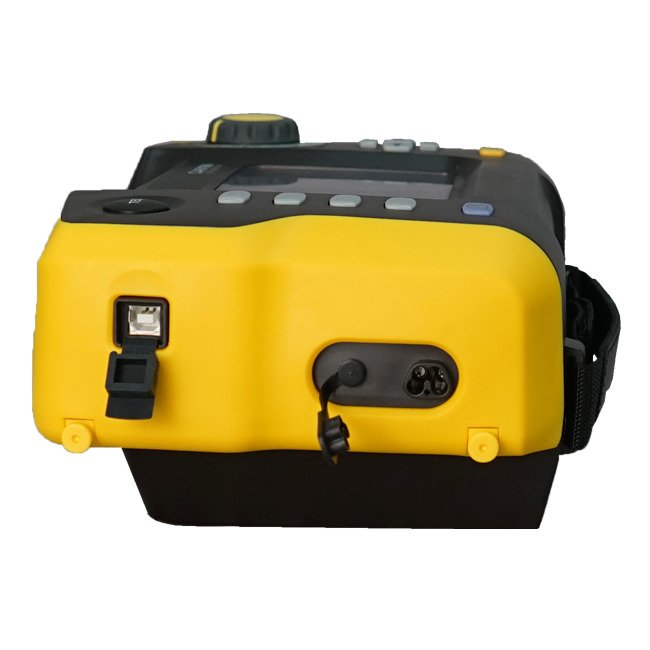

A rotary switch on the instrument’s front panel gives direct access to all the functions. A large number of visual symbols and audio signals help with quick interpretation of the results in accordance with the standards. The online contextual help menus can guide the user step by step if needed. The storage capacity can save up to 1,000 tests. The C.A 6116N also has a USB output for data transfer.

Measurements

The high-performance C.A 6116N offers excellent measurement stability, even in disturbed industrial environments. All the measurements needed to test an electrical installation are available: continuity, resistance, insulation, earth and selective earth, loop impedances, type A, and AC RCDs. The C.A 6116N can also be used to measure voltage, frequency, current via a clamp, active power, harmonics, and phase rotation.

The C.A 6116N is also fitted with type-B RCD testing, built-in fuse table, and voltage drop feature.

Designed and manufactured in France, the C.A 6116N was developed in compliance with eco-design procedures.

Analysis of the results

The measurements made with the C.A 6116N can be processed by the DataView® multi-product expert processing software. DataView® automatically recognizes the instrument when it is connected to the PC and opens the corresponding menu. By means of a tree structure, it offers users direct access to the data recorded in the instrument, its configuration, etc.

It is equipped with multiple predefined report templates which comply with the standards’ requirements.

Users can also create their own templates, as required.

Delivered as standard, the ICT software offers the following functions for quick, simplified analysis of the recorded measurements: recovery of the data, the configuration of the instrument, customization of measurement campaigns with a transfer into the instrument, and generation of reports.
