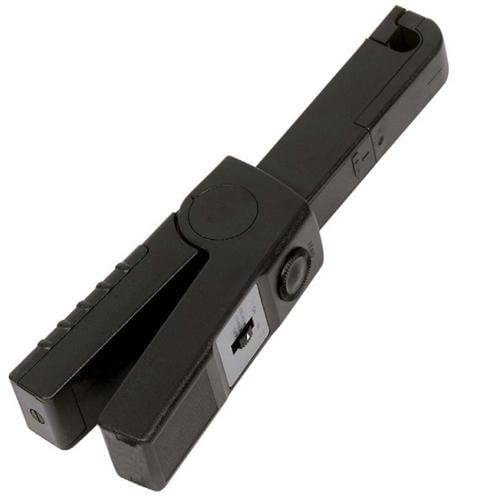

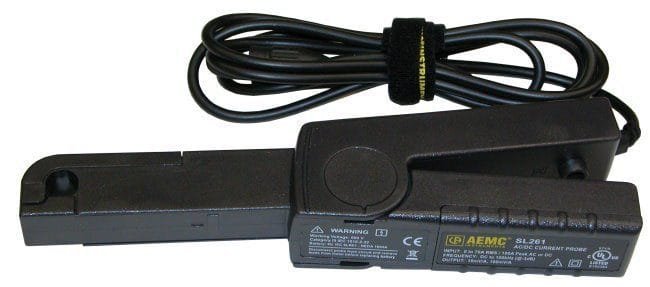

AEMC SL261 – AC/DC Current Probe (BNC – 100mV/A – 10A peak & 10mV/A – 100A peak)
44 people are viewing this product right now
Original price was: $543.40.$516.23Current price is: $516.23.
Shipping calculated at checkout.
Estimated delivery:5 days
AC/DC Current Probe Model SL261 (BNC – 100mV/A – 10A peak & 10mV/A – 100A peak)
- Oscilloscope current probe for applications in industrial and power environments
- Analyze, measure and accurately display distorted current waveforms and harmonics
- Current range from 100mA to 100AAC/DC
- Direct BNC connection to scope
- Jaw designed for easy maneuvering in crowded spaces
Guarantee Safe and Secure Payment Checkout
Description
AEMC SL261
- Oscilloscope current probe for applications in industrial and power environments
- Current range from 100mA to 100AAC/DC
- Jaw designed for easy maneuvering in crowded spaces
AC/DC Current Probe (BNC – 100mV/A – 10A peak & 10mV/A – 100A peak)
The Model SL261 is designed for AC/DC current measurement capabilities using Hall effect technology. It measures from a few mA to over 100A. The “screwdriver” shape, with its narrow elongated prod, was chosen to permit probing in crowded cable bundles or measuring in tight areas such as on circuit boards, motor controllers, and automotive circuitry.
The electronics and batteries are self-contained in the handles. It is an excellent companion to DMMs, recorders and loggers, oscilloscopes, and waveform displaying instruments. Low phase shift also ensures reliable power and power quality measurements. The Model SL261 is designed for current measuring and displaying on oscilloscopes. AC + DC output signals proportional to the total current are provided for True RMS measurement.
Applications
- Oscilloscope applications in industrial or power environments
- Analysis and measurement of distorted current waveforms and harmonics
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 100 A |
| Maximum Current DC | 100 A |
| Maximum Conductor Size | 0.46 IN |
Product General Attributes | |
| Warranty | 12 MONTHS (1 YEARS) |
| Safety Approval | CE, UL |
| IP Rating | IP30, IP40 |
| Product Weight | 11.6 OUNCES (0.725 LBS) |
| Product Height | 1.42 IN |
| Product Length | 9.09 IN |
| Product Width | 2.64 IN |
| Data Logging | No |
| HTS/Schedule B Number | 8504314035 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 9.09 × 2.64 × 1.42 in |
|---|
