Amblyonix 1100 – Micro-Ohmmeter, 100A
36 people are viewing this product right now
$7,750.00
Shipping calculated at checkout.
Estimated delivery:3 days
Micro Ohmmeter 100A
- Selectable current output: 100A, 80A, 50A, 30A
- Measurement range: 0 to 20mΩ
- 5.6-inch Super-Industrial, graphical color LCD
- Broad resistance measuring range
- Intelligent power management auto shut-off feature
- USB, RS232, and power supply charging interfaces
- Open-circuit, and over-temperature protection
- Heavy-duty, rugged test leads
- 1-year parts and labor warranty
Guarantee Safe and Secure Payment Checkout
Description
Amblyonix 1100
Selectable current output: 100A, 80A, 50A, 30A
- Measurement range: 0 to 20mΩ
- 5.6-inch Super-Industrial, graphical color LCD
- Broad resistance measuring range
- Intelligent power management auto shut-off feature
Micro-Ohmmeter, 100A

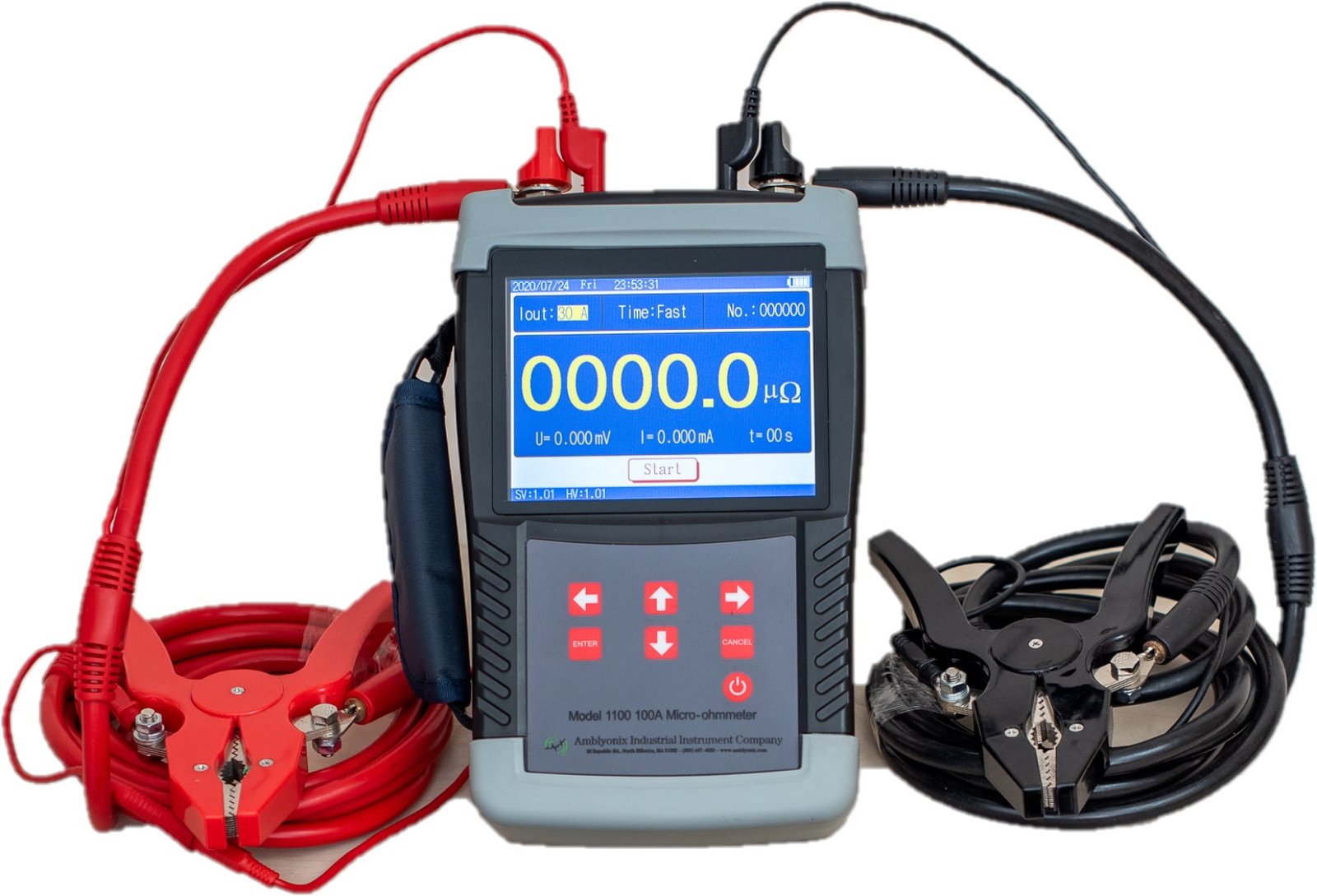

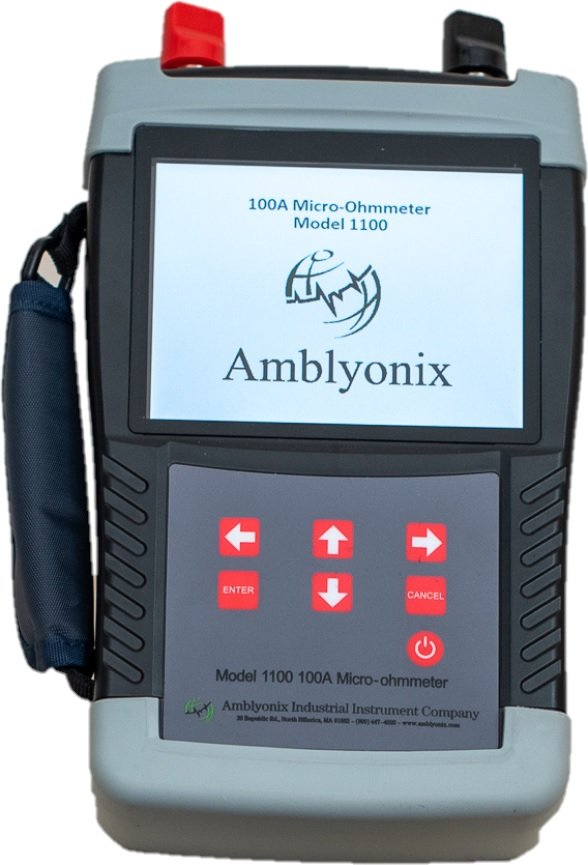

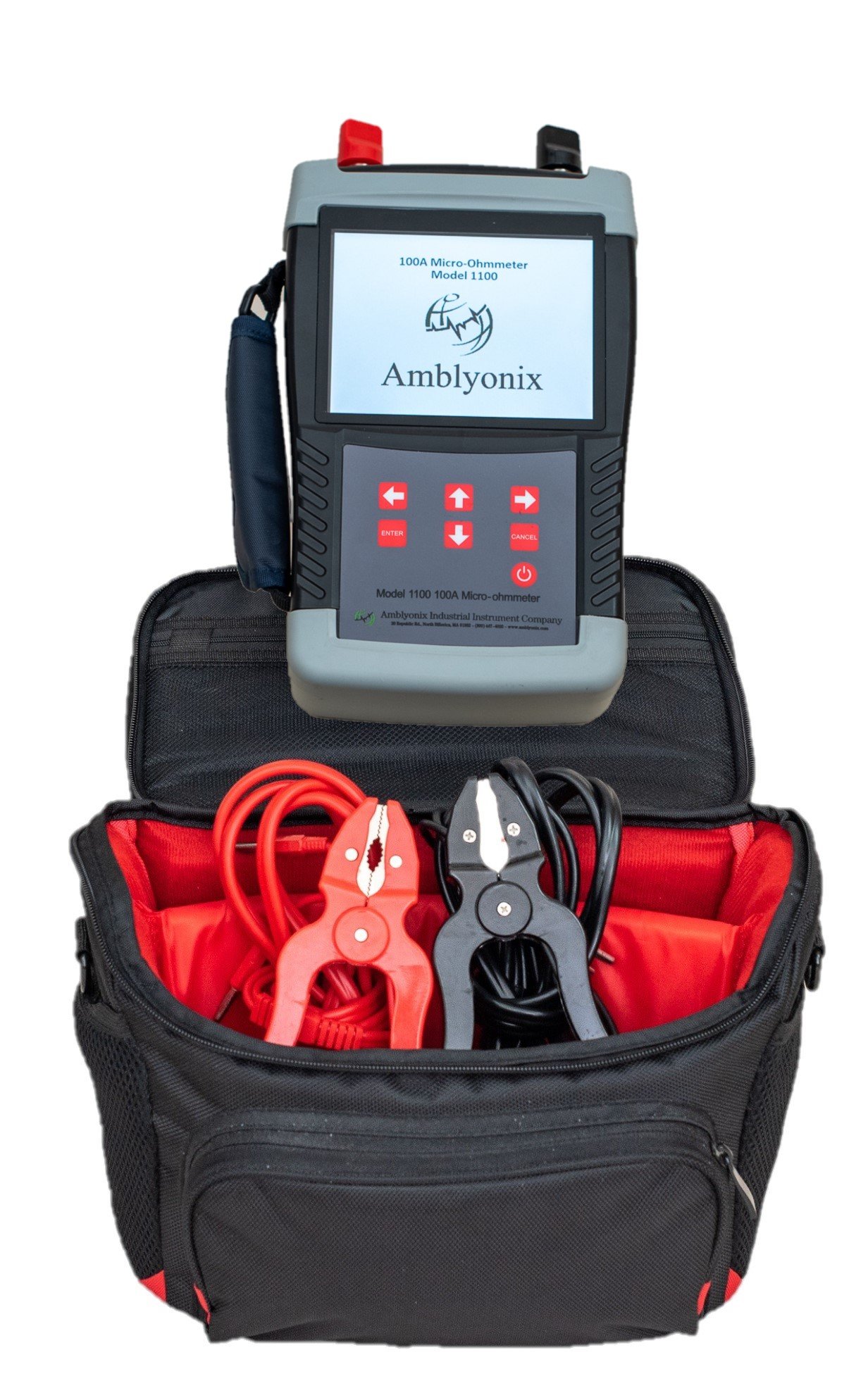

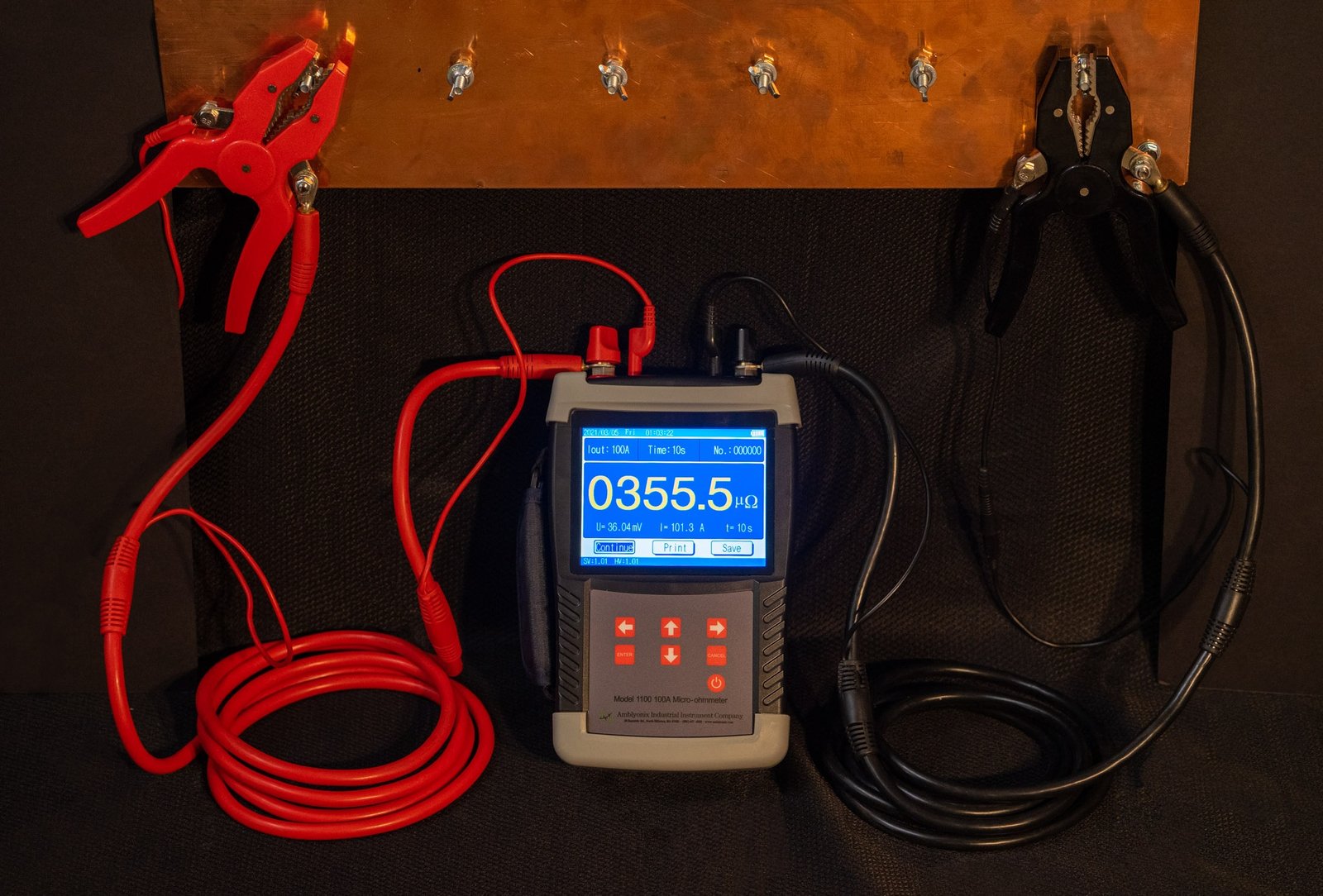

The Amblyonix 1100 is a powerful, hand-held Micro-ohmmeter that delivers up to 100 amps of test current. Lightweight and extremely portable, it is perfectly suited to perform resistance measurements on circuit breakers, switchgear, bus connections, and a wide variety of testing applications. Equipped with a durable lithium battery power supply, the Model 1100 provides up to six hundred measurements when fully charged.
Micro / Milli / Meg Ohmmeters/Micro-Ohmmeter / DLRO / Bond Testing Template | |
|---|---|
| Style (Micro-Ohmmeter) | Portable |
| Maximum Test Current | 100 A |
| Min Resistance | 0 m Ohms |
| Max Resistance (ohm) | 20 M Ohms (20000000 Ohms) |
| Line Power or Battery power | Battery Power |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | All products are covered with 1-year parts and labor warranty. |
| Interfaces I/O | RS-232, USB |
| Product Weight | 3.75 LBS |
| Product Height | 2.5 IN |
| Product Length | 10 IN |
| Product Width | 6.2 IN |
| Battery Type | Other Battery Type Internal lithium battery |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 3.75 lbs |
|---|---|
| Dimensions | 10 × 6.2 × 2.5 in |
