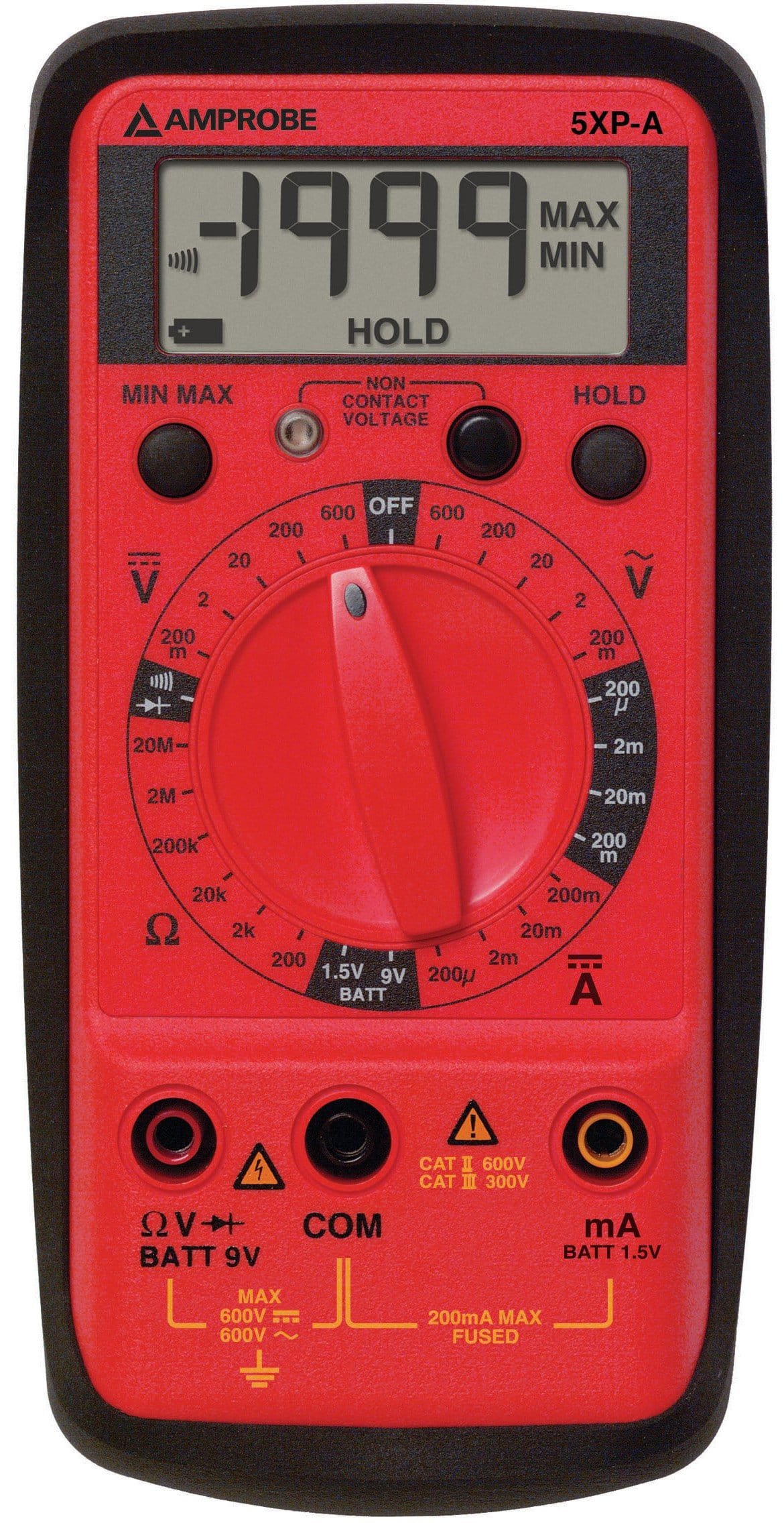

Amprobe 5XP-A – AC/DC Compact Digital Multimeter with VolTect
37 people are viewing this product right now
Original price was: $134.18.$103.56Current price is: $103.56.
Shipping calculated at checkout.
Estimated delivery:3 days
COMPACT DMM WITH NON-CONTACT VOLTAGE
- 27 ranges/10 functions
- Battery load test with 1.5 V and 9 V capabilities
- Data Hold
- Min/Max record minimum and maximum values
- VolTect™ non-contact voltage (NVC) detection
- Low battery indication
- Safety rated CAT II 600 V, CAT III 300 V
Guarantee Safe and Secure Payment Checkout
Description
Amprobe 5XP-A – AC/DC Compact Digital Multimeter with VolTect
- 27 ranges/10 functions
- Battery load test with 1.5 V and 9 V capabilities
- Data Hold
- Min/Max record minimum and maximum values
- VolTect™ non-contact voltage (NVC) detection
The Amprobe 5XP-A Digital Multimeter provides superior features and accuracy in a smaller form factor. The 5XP-A has unique features such as VolTect™ non-contact voltage detection and our exclusive Magne-Grip™ holster that frees both hands for work. The 5XP-A is the perfect choice for residential, commercial and general troubleshooting applications.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 100 uV (0.1 mV) |
| Maximum Voltage DC | 1000 V |
| Maximum Current AC | 200 mA (0.2 A) |
| Minimum Current AC | 0.1 uA (0.00010 mA) |
| Resolution AC Current | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 200 mA (0.2 A) |
| Basic Accuracy V DC | ± 1% Rdg + 1D |
| # Digit Display | 3.5 |
| Counts | 1999 . |
| Backlight | No |
| Manual/Autoranging | Manual |
| Decibels | No |
| Resistance | Yes |
| Frequency | No |
| Capacitance | No |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | I CAT Rating attribute_type should be multi_select |
| CAT Voltage | 1,000 V, 300 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | Min-Max Record Minimum and Maximum Values, Battery Load Test with 1.5V and 9V Capabilities |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Additional Info/Comments | Carrying Case, Test Lead Kit, Temperature Converter, Test Lead Set with Alligator Clips |
| Safety Approval | CSA |
| Product Weight | 210 GRAMS (0.463 LBS) |
| Product Height | 6.1 IN |
| Product Length | 1.3 IN |
| Product Width | 2.8 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device |
| Country of Origin | Taiwan Country of Origin Value not available |
| Shipping Height | 3.50 IN Shipping Height Value not available |
| Shipping Length | 10.00 IN Shipping Length Value not available |
| Shipping Width | 7.20 IN Shipping Width Value not available |
| Other Information | Display: 3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999 Polarity: Automatic, positive implied, negative polarity indication Overrange: (OL) or (-OL) is displayed Zero: Automatic Low Battery Indication: The Indication is displayed when the battery voltage drops below the operating level Measurement Rate: 2.5 times per second, nominal Operating Environment: 0 ?C to 50 ?C at 70 % R.H. Storage Temperature: -20 ?C to 60 ?C, 0 to 80 % R.H. with battery removed from meter Accuracy: Stated accuracy at 23 ?C ? 5 ?C, 75 % relative humidity Temperature Coefficient: 0.1 x (specified accuracy) per ?C (0 ?C to 18 ?C, 28 ?C to 50 ?C) Altitude: 2000 m (6561.7 ft) Power: Single standard 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22 Battery Life: 200 hours typical with carbon-zinc Dimensions: (H x W x D) 155 mm x 72 mm x 32 mm (6.1 in x 2.8 in x 1.3 in) Weight: Approx. 210 g (7.4 oz) including battery Warranty: One-year DC Volts Ranges: 200 mV, 2 V, 20 V, 200 V, 1000 V Accuracy: ? (1.0 % rdg + 1 dgt) AC Volts (45 Hz to 500 Hz) Ranges: 200 mV, 2 V, 20 V, 200 V, 750 V Accuracy: ? (1.5 % rdg + 5 dgts) Voltage Resolution: 100 µV Voltage Input Impedance: 10 M? Overload Protection: 200 mV: 1000 V dc or 750 V ac rms (3 minutes) All other ranges: 1000 V dc or 750 V ac rms DC Current Ranges: 200 µA, 2 mA, 20 mA, 200 mA Accuracy: ? (1.5 % rdg + 1 dgt) AC Current (45 Hz to 500 Hz) Ranges: 200 µA, 2 mA, 20 mA, 200 mA Accuracy: ? (2.0 % rdg + 5 dgts) Current Resolution: 0.1 µA Input Protection: 315 mA/1000 V fast blow ceramic fuse 6.3 mm x 32 mm on mA input Burden Voltage: 300 mV max. (1 V max. on 200 mA range) Resistance: 200 ? , 2 k? , 20 k? , 200 k? ? (1.0 % rdg + 4 dgts) Resistance: 2 M? ? (1.5 % rdg + 4 dgts) Resistance: 20 M? ? (2.0 % rdg + 5 dgts) Resistance Resolution: 100 m? Open Circuit Voltage: 0.3 V dc typical, (3.0 V dc on 200 ? range) Overload Protection: 1000 V dc or 750 V ac rms Continuity: Audible Indication: 75 ? ? 25 ?, Response Time: 100 ms Diode Test Current: 1.0 mA (approximate) ?(1.5 % rdg + 3 dgts) Diode Test Resolution: 1 mV Open Circuit Voltage: 3.0 V dc typical Non-Contact Voltage Indicator: Sense voltage 70 V to 600 V ac; beeper chirps and bright red LED on, works on all ranges Battery Test: 1.5 V, 9 V Accuracy: ? (3.5 % rdg + 2 dgts) |
