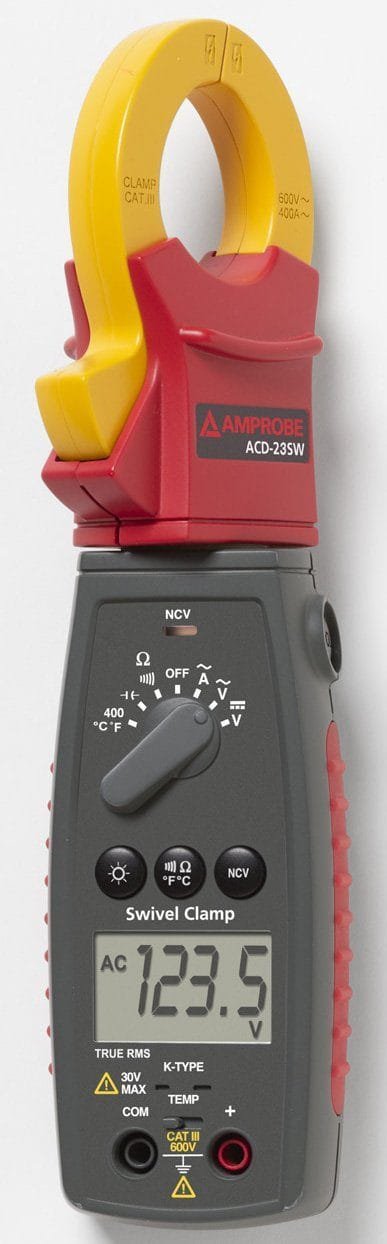

Amprobe ACD-23SW – 400A True-RMS Swivel Clamp Meter with Temperature and VolTect
44 people are viewing this product right now
Original price was: $283.78.$219.02Current price is: $219.02.
Shipping calculated at checkout.
Estimated delivery:3 days
400A True-RMS Swivel Clamp Meter with Temperature and VolTect
- TRMS Measurement
- 180 degree rotating head for the perfect display viewing
- Advanced VoltTect non-contact voltage detection
- Slim jaw design with one hand operation
- Measures AC Current up to 400 ACA, AC/DC, Voltage up to 600V, Resistance and Capacitance
- Temperature measurement
- Audible continuity
- Auto power off
- Data hold
- Safety CAT III 600 V
Guarantee Safe and Secure Payment Checkout
Description
Amprobe ACD-23SW
- TRMS Measurement
- Advanced VoltTect non-contact voltage detection
- Measures AC Current up to 400 ACA, AC/DC, Voltage up to 600V, Resistance and Capacitance
- Auto and manual ranging respectively for quick checks and precise measurements
- Accommodates conductors up to 1.18” (30mm) in diameter
400A True-RMS Swivel Clamp Meter with Temperature and VolTect
Amprobe’s ACD-23SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places.
Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature-rich, measuring AC/DC currents, voltage, resistance, and capacitance as well as CAT III 600 V safety ratings make this clamp on meter something you should swivel to see.
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.18 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | No |
Product General Attributes | |
| Unique Features | TRMS AC Current to 400A AC Voltage to 600V DC Voltage to 600V Resistance to 40MΩ VolTect™ non-contact voltage detection Capacitance to 4,000 µF Temperature from -30°F to 400°F Jaw fits up to 1.18″ (30 mm) in diameter |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Additional Info/Comments | Low Battery Indication |
| Safety Approval | CE |
| Product Weight | 1.26 LBS |
| Product Height | 1.2 IN |
| Product Length | 12 IN |
| Product Width | 5.3 IN |
| Data Logging | No |
| Calibration Included | |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device |
| Country of Origin | Taiwan Country of Origin Value not available |
| Shipping Height | 3.50 IN Shipping Height Value not available |
| Shipping Length | 14.40 IN Shipping Length Value not available |
| Shipping Width | 7.55 IN Shipping Width Value not available |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Dimensions | 12 × 5.3 × 1.2 in |
|---|
