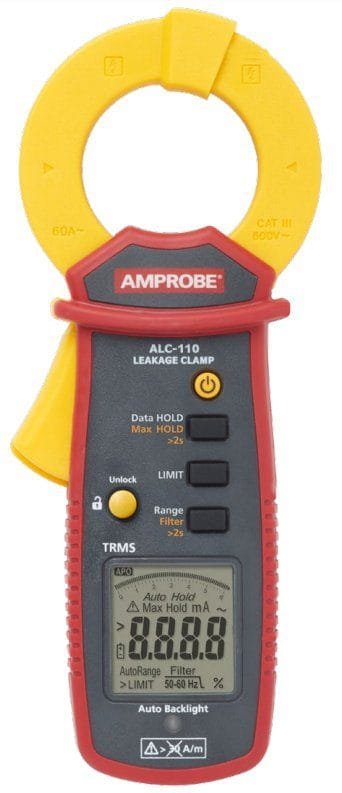

Amprobe ALC-110 Leakage Current Clamp
26 people are viewing this product right now
Original price was: $827.18.$638.41Current price is: $638.41.
Shipping calculated at checkout.
Estimated delivery:5 days
LEAKAGE CURRENT CLAMP
- Low influence of external low frequency magnetic fields: @ IN: 3.500 mA – 600.0 mA ≤ 30 A/m, operating class 2
- True-rms measurements for accuracy when measuring complex, non-sinusoidal waveforms
- Mechanical jaw lock to assure accuracy of low current measurements, avoiding disturbance from measured wires and magnetic fields; jaw opening 1.2 in (30 mm)
- Highest resolution of 0.001 mA, measure up to 60 A
- Broad frequency range 15 Hz to 1 kHz for a variety of different applications, including industrial and railway
- Selectable filters: – Low Pass 50/60Hz filter to perform measurements on equipment driven by Variable Frequency Drives (VFDs) or affected by high frequency noise – Appliance Filter to conduct leakage current measurements on appliances – No filter
- Selectable limits: 0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA
- Max readings and hold function
- High safety rating: CAT III 600 V
- Battery-saving design with an auto backlight off and auto power off
Guarantee Safe and Secure Payment Checkout
Description
Amprobe ALC-110 Leakage Current Clamp
 |
|
Prevent unplanned downtime by detecting leakage currents with the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is designed to resist external magnetic fields for highly accurate readings.
Applications
- Measure:
– Earth and differential leakage currents
– Leakage currents through the earth (PE) conductor
– Appliance current consumption without interruptions to the circuit
– Leakage currents through the earth (PE) conductor
– Appliance current consumption without interruptions to the circuit
- Trace the source of earth leakage current
- Identify intermittent GFCI trips without switching equipment off
- Check a system for an electrical break of insulation where current is flowing to the ground
- Where industrial leakage current testing is required
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 0.06 A |
Product General Attributes | |
| Product Weight | 0.90 LBS |
| Product Height | 8.7 IN |
| Product Length | 1.8 IN |
| Product Width | 3.5 IN |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992 |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 1.8 × 3.5 × 8.7 in |
|---|
