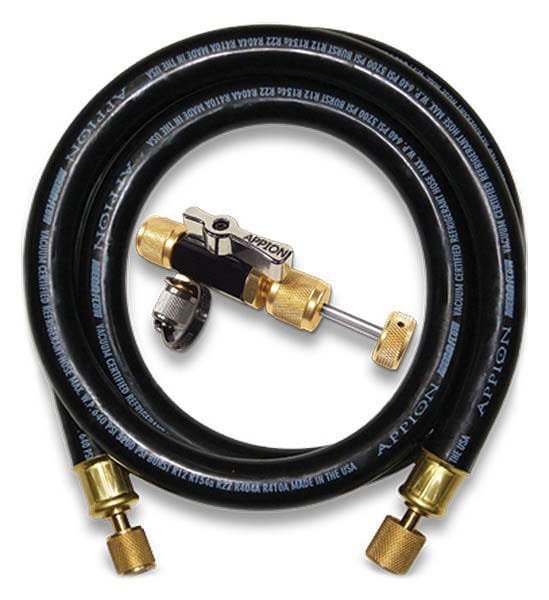

Appion MGABAS – MegaFlow Basics 1/2 Inch Hose Evacuation Kit, 1/2″ MegaFlow hose and 1/4″ Valve Core Removal Tool

- Perform evacuations up to 10x faster
- Enables up to 16x more flow than 1/4″ hose
- Vacuum certified hoses do not collapse or permeate
Did you know that even through 1/4″ access ports, you can evacuate faster simply by removing restrictions and using larger diameter hoses? The MegaFlow Basics Kit was designed around full flow, as it features a Vacuum-Certified 1/2″ evacuation hose and a Vacuum-Rated Valve Core Removal Tool (1/4″ or 5/16″). With these AC/R Evacuation Essentials, your vacuum pump can finally reach its true potential!
Faster Evacuation Made Simple
When evacuating through restrictive valve cores & hoses, jobs can take longer than necessary to complete. Pulling a vacuum to 500 microns can be done quicker simply by removing restrictions from your setup (see table below). When restrictive valve cores are removed and a 1/2″ hose is used (instead of a traditional 1/4″ hose), the results are even more impressive! A job that once took 40 minutes now takes just 3 minutes with these 2 simple tricks to save time and money. This was the idea behind the MegaFlow Basics Kit, and the results speak for themselves!
| Evacuating a 10-ton System to 500 microns | |
| 6-ft, 1/4″ hose through a valve core | 40 min. |
| 6-ft, 1/4″ hose with core removed | 19 min. |
| 6-ft, 1/2″ hose with core removed | 3 min. |
HVAC Manifolds and Gauges Hoses Template | |
|---|---|
| Hose Diameter (inches) | 0.50 IN |
| Hose length | 72 IN |
| Fitting style | Standard |
| Hose style | Black |
| Packaging style | Single hose |
Product General Attributes | |
| Product Height | 3.00 IN |
| Product Length | 11.00 IN |
| Product Width | 9.00 IN |
| HTS/Schedule B Number | 9026.90.6000 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
