Autonics ADS-SE1 Door Slide Sensor, 1-Channel, Through Beam, 10M, Relay Output, 12-24VAC/DC

Name: Autonics ADS-SE1 Door Slide Sensor, 1-Channel, Through Beam, 10M, Relay Output, 12-24VAC/DC - NESTES Instruments
SKU: Autonics ADS-SE1
Price: 100.10 USD
Availability: InStock

Brand:

Autonics

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

34 people are viewing this product right now

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

Door Slide Sensor, 1-Channel, Through Beam, 10M, Relay Output, 12-24VAC/DC

Sensing type: Through-beam type
Sensing distance: 0 to 10m
Light source: Infrared LED(850nm modulated)
Power supply: 12-24VAC~ ±10% 50/60Hz
12-24VDC
Current consumption and Power consumption: Current Consumption: Max. 2VA, Power Consumption: Max. 50mA
Control output: Relay(SPST(1a))
Long sensing distance: 0 to 10m
Ambient lighting: up to 100,000lux
Easy connection between sensor head and controller
Simple sensitivity adjustment (one-touch automatic sensitivity adjustment)
Self-diagnosis function
Compact size: W77×H44×D24mm

SKU: Autonics ADS-SE1 Tags: Photoelectric / Proximity / Fiber Optic Sensors, Process / Calibration Categories: Photoelectric / Proximity / Fiber Optic Sensors

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

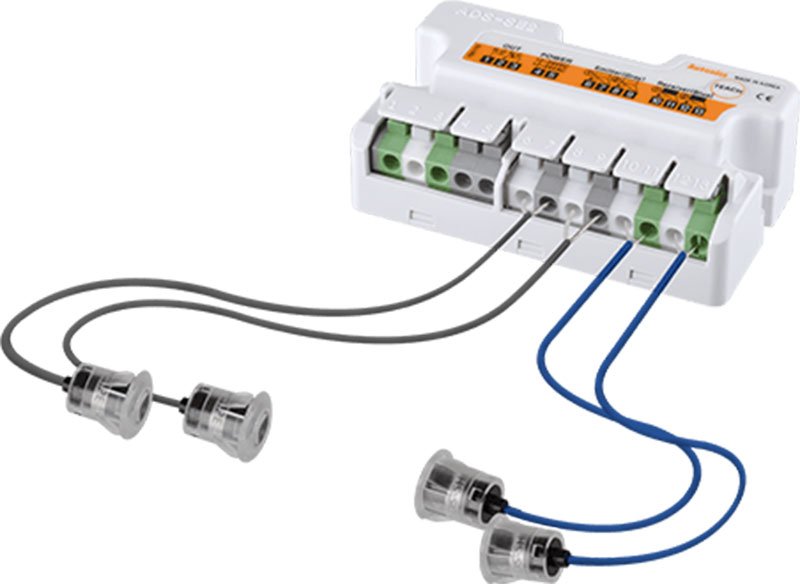

Autonics ADS-SE1/2 Series Door Slide Sensor

Door Slide Sensor, 1-Channel, Through Beam, 10M, Relay Output, 12-24VAC/DC
Easy connection between sensor head and controller
Simple sensitivity adjustment (one-touch automatic sensitivity adjustment)
Self-diagnosis function

The ADS-SE1/2 series automatic door side sensors are through-beam type sensor system with a dedicated controller. The sensors feature long sensing distances up to 10 m and provides stable detection even in high ambient lighting, up to 100,000 lux. Connection between sensor and controller is made easy with push-to-connect wiring and one-touch automatic sensitivity adjustment function is included for convenient set up.
