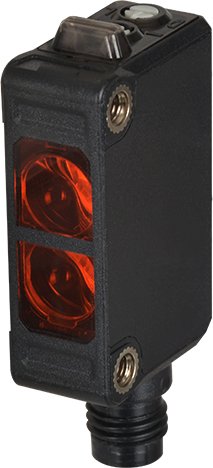

Autonics BJR100-DDT-C-F Compact Oil Proof Type Photoelectric Sensor

Name: Autonics BJR100-DDT-C-F Compact Oil Proof Type Photoelectric Sensor - NESTES Instruments
SKU: Autonics BJR100-DDT-C-F
Price: 156.20 USD
Availability: InStock

Brand:

Autonics

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

36 people are viewing this product right now

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

Compact Oil Proof Type Photoelectric Sensor, Diffuse Reflective Type, 100mm Sensing Distance, Light and Dark On, NPN Output, 12-24 VDC, Connector Type

Oil proof/oil resistant : Oil proof type
Sensing type : Diffuse reflective type
Sensing distance : 100mm
Sensing target : Opaque, Translucent material
Light source : Infrared LED(850nm)
Response time : Max. 1ms
Power supply : 10-30VDC ±10%(ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by switch)
Control output : NPN open collector

SKU: Autonics BJR100-DDT-C-F Tags: Photoelectric / Proximity / Fiber Optic Sensors, Process / Calibration Categories: Photoelectric / Proximity / Fiber Optic Sensors

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Autonics BJR100-DDT-C-F

Oil proof/oil resistant : Oil proof type
Sensing type : Diffuse reflective type
Sensing distance : 100mm
Sensing target : Opaque, Translucent material
Light source : Infrared LED(850nm)
Response time : Max. 1ms

Compact Oil Proof Type Photoelectric Sensor, Diffuse Reflective Type, 100mm Sensing Distance, Light and Dark On, NPN Output, 12-24 VDC, Connector Type

The BJP series photoelectric sensors are optimized for detection of printed circuit boards (PCB) with a 30 mm x 3 mm rectangular light beam and background suppression (BGS) sensing method. The sensors provide accurate and stable detection of PCBs regardless of holes, protrusions or intrusions on the boards. Configuration is made simple with operation mode switch and adjustable sensing distances.
