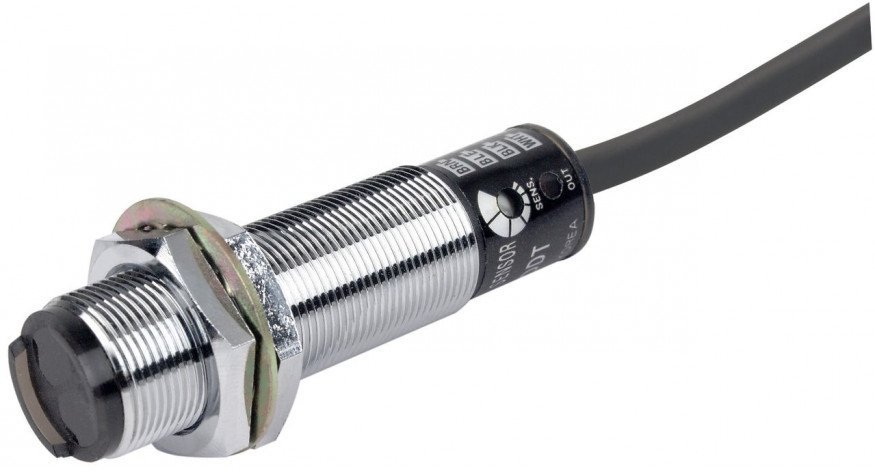

Autonics BR20M-TDTL-C Photoelectric Sensor

Name: Autonics BR20M-TDTL-C Photoelectric Sensor - NESTES Instruments
SKU: Autonics BR20M-TDTL-C
Price: 94.60 USD
Availability: InStock

Brand:

Autonics

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

13 people are viewing this product right now

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

Sensor, Photo, Through Beam, 20 Meter Range, 18mm Round Brass, Light On, NPN Output, Connector Type,12-24 VDC

Sensor, Photo, Through Beam, 20 Meter Range, 18mm Round Brass, Light On, NPN Output, Connector Type,12-24 VDC
Realizes long sensing distance (20m) (through-beam type)
Superior noise resistance with digital signal processing
High-speed response time under 1ms
Built-in reverse power polarity and short-circuit (overcurrent) protection circuit
Suitable for sensing in narrow space (narrow beam type)
External sensitivity adjustment (except Through-beam type)
Excellent environment-resistance performance with glass lens(BR4M)
Protection structure IP66 (IEC standard)

SKU: Autonics BR20M-TDTL-C Tags: Photoelectric / Proximity / Fiber Optic Sensors, Process / Calibration Categories: Photoelectric / Proximity / Fiber Optic Sensors

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Autonics BR20M-TDTL-C

Suitable for sensing in narrow space (narrow beam type)
External sensitivity adjustment (except Through-beam type)
Light ON, Dark ON switchable by control wire (except Through-beam type)
Excellent environment-resistance performance with glass lens(BR4M)
Protection structure IP66 (IEC standard)

Heading

The BR series Ø18 mm cylindrical photoelectric sensors feature high-speed response time under 1 ms and excellent noise immunity with digital signal processing. The sensors are ideal for installation in limited spaces, with narrow-beam reflective type sensing. Connector type sensors are also available, offering easier maintenance and wiring work.
