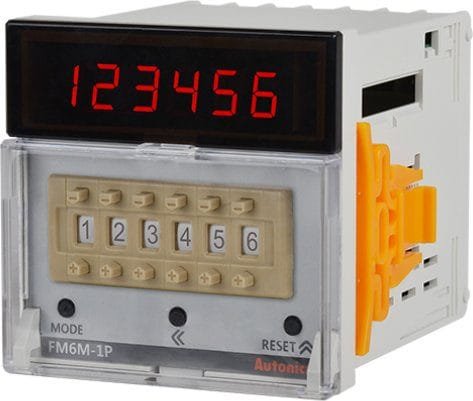

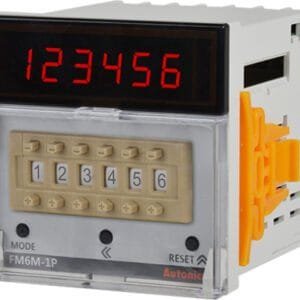

Autonics FM6M-1P4 – Digital Measure Counter, 6-Digit, LED, 1 Presets(Stage Setting), 1 Relay and 1 NPN Outputs

Name: Autonics FM6M-1P4 - Digital Measure Counter, 6-Digit, LED, 1 Presets(Stage Setting), 1 Relay and 1 NPN Outputs - NESTES Instruments
SKU: Autonics FM6M-1P4
Price: 269.50 USD
Availability: InStock

Brand:

Autonics

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

39 people are viewing this product right now

$269.50

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

Measuring Counter, W72xH72mm, 6-Digit, LED, 1 Presets(Stage Setting), 1 Relay and 1 NPN Outputs, 100~240 VAC 50/60 Hz

6-Digit, LED, 1 Presets(Stage Setting), 1 Relay and 1 NPN Outputs
Parameter Setting: Input/Output operation mode, Max. counting speed,Decimal point position, OUT1/2 time (0.01 to 99.99 sec), Selectable voltage input (PNP) method or no-voltage input(NPN) method, Selectable Multiply or Divide mode function
Memory protection for 10 years (using non-voltage semiconductor)
Power supply: 100-240VAC 50/60Hz
Built-in Microprocessor

SKU: Autonics FM6M-1P4 Tags: Environmental Testers / Physical Property, Stopwatches / Timers / Clocks Categories: Stopwatches / Timers / Clocks

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Additional information

Description

Autonics FM6M-1P4

Memory protection for 10 years (using non-voltage semiconductor)
Power supply: 100-240VAC 50/60Hz
Built-in Microprocessor

Measuring Counter, W72xH72mm, 6-Digit, LED, 1 Presets(Stage Setting), 1 Relay and 1 NPN Outputs, 100~240 VAC 50/60 Hz

The FM series measure counters can preset multiple or divisor for 1 input pulse and display the calculated value in multiply-mode and divide-modes. The counters feature counting speeds of 1 cps, 30 cps, 300 cps, 2 kcps, and 5 kcps and decimal point display function (fixed decimal point). The FM series counters feature a standard DIN size of W 72 x H 72 mm and are available in 4-digit and 6-digit models.
