Autonics PSAN-01CV-NPT1/8 – Pressure Sensor
45 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Sensor, Pressure, Standard pressure, Connector Type, 0.0 to 100.0kPa, NPN open collector /1-5 VDC Out, Port NPT1/8, 12-24VDC
- Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
- Pressure port direction: Rear fitting
- Pressure port: NPT1/8
- Connection type: Connector type (connector type cable: 2m)
- Pressure type: Standard pressure
- Power supply: 12-24VDC ±10% (ripple P-P: max. 10%)
- Current consumption: Voltage output type: Max. 50mA
- Current output type: Max. 75mA
- Protection structure: IP40
Guarantee Safe and Secure Payment Checkout
Description

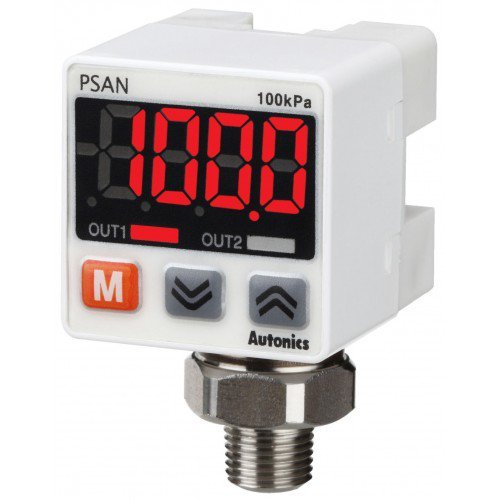

Autonics PSAN-01CV-NPT1/8 – Pressure Sensor
Digital Display Pressure Sensor
- Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
- Pressure port direction: Rear fitting
- Pressure port: NPT1/8
- Connection type: Connector type (connector type cable: 2m)
- Pressure type: Standard pressure
- Power supply: 12-24VDC ±10% (ripple P-P: max. 10%)
- Current consumption: Voltage output type: Max. 50mA
- Current output type: Max. 75mA
- Protection structure: IP40
The PSAN series digital display pressure sensors can measure and display various types of pressure including gas, liquid, and oil. The auto shift function adjusts the pressure level to match the change in original pressure, providing stable and accurate output. The sensors also feature various user-friendly functions including zero-point adjustment, peak value monitoring, and chattering prevention.
- Pressure measurement of any gas, liquid or oil (except substances which may corrode stainless steel 304/316L)
- Auto shift function: with change in the original pressure, the external input adjusts the determined level to match the change in pressure (only available in models with auto shift/hold function)
- Hold function: hold current display value or control output
- Forced output control mode for device testing and maintenance
- One-touch connector type for easy wiring and maintenance
- Zero-point adjustment function, peak value monitoring function, chattering prevention function
Product General Attributes | |
|---|---|
| ECCN Number | EAR99 |
| Country of Origin | Korea |
