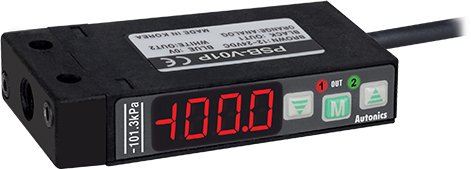

Autonics PSB-V01P-M5 Rectangular Type Digital Display Pressure Sensors
17 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Sensor, Pressure, Negative Pressure, 3 1/2 Digit LED, Rectangular, 0 to -101.3 kPa, 2 PNP/1-5 VDC Out, 12-24 VDC
- Negative Pressure, 3 1/2 Digit LED, Rectangular, 0 to -101.3 kPa, 2 PNP/1-5 VDC Out, 12-24 VDC
- Standard pressure: 0.1kPa, 1kPa
- Compound pressure: 0.2kPa
- Convertible pressure unit
- Chattering prevention for output (selectable response time: 2.5ms, 5ms, 100ms, 500ms)
- One-touch connector type for easy wiring and maintenance
- Analog output: voltage (1-5VDC)
- Reverse power polarity and overcurrent protection circuit
- High brightness red LED (LED height : 9.5mm)
- Minutes display interval-Negative pressure: 0.1kPa
- Negative, Compound pressure: kPa, kgf/cm2, bar, psi, mmHg, mmH2O, inHg
- Standard pressure: kPa, kgf/cm2, bar, psi
- Various output modes: Hysteresis mode, Automatic sensitivity setting mode, Independent 2 output mode, Window comparative output mode
- Zero-point adjustment function, peak value monitoring function, bottom hold display
Guarantee Safe and Secure Payment Checkout
Description
Autonics PSA/PSB Series Digital Pressure Sensor
 | Small size, High accuracy pressure control digital pressure sensorThe PSB series compact digital pressure sensors feature high display resolutions and fast response time for optimal performance. The sensors also feature various output modes and functions, making it ideal for various pressure related applications. The bright LED display allows users to quickly and easily identify pressure level and status. Connector type models (PSB-C) are also available, offering easier maintenance and wiring work. |
• Analog output voltage – Pressure characteristic
• Analog output voltage – Linear characteristic
Dimensions
| PSA Series | PSB Series |
 |  |
| Fixing bracket A for mounting(PSA Series) | Fixing bracket B for mounting(PSA Series) |
 |  |
| Panel mounting bracket(PSA Series) | |
 | |
| Bracket A | Bracket B |
 |  |
| Panel cut-out | Accessory(sold separately) |
 |  |
Control Output Diagram (PSA/PSB)
| • NPN open collector output type | • PNP open collector output type |
 |  |
*There is no short-circuit protection in analog voltage output. Do not connect this output to power supply or capacitive load directly. | |
Front panel identification and function
- 3½digit LED display(red) :
Display sensing pressure, every setting value and display error. - 1 output indicator(red) :
Output 1 is ON, LED will be ON. - 2 output indicator(PSA: red, PSB: green) :
Output 2 is ON,LED will be ON. - Mode key :
Parameter setting mode or preset setting mode, save setting value. - Up key :
Set the setting value to lower step in preset setting or pressure unit, output mode, response time, analog output scale, key lock, peak hold value, bottom hold value display in parameter setting. - Down key :
Set setting value to upper step in preset setting or pressure unit, output mode, response time, analog output scale, key lock, peak hold, bottom hold display in parameter setting. - Range of rated pressure :
It is possible to change the pressure unit in PSA Series. Please use different unit as label for your application.
Process / Calibration/Pressure Calibration/Process Pressure Gauges Template | |
|---|---|
| Style (Press Gauge) | Analog Dial |
| # Digit Display | 3.5 |
Product General Attributes | |
| Safety Approval | CE |
| IP Rating | IP40 |
| Product Weight | 70 GRAMS (0.154 LBS) |
| Country of Origin | Korea |
You must be logged in to post a review.
Manuals/Guides
| Weight | 70 lbs |
|---|
