Aven Tools 26800B-223-SPZ – Stereo Zoom Binocular Microscope (6.75x-50x) on Post Stand with OLED Ring Light
31 people are viewing this product right now
Original price was: $2,677.45.$2,409.70Current price is: $2,409.70.
Shipping calculated at checkout.
Estimated delivery:4 days
Stereo Zoom Binocular Microscope SPZ-50[6.75x-50x] on Post Stand with OLED Ring Light
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35″ to 0.14″)
- Working distance 108mm (4.25″) – the best in class
- 17mm (0.67″) high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
- 4 Organic Light Emitting Diode panels provide even, natural illumination with no glare or shadows

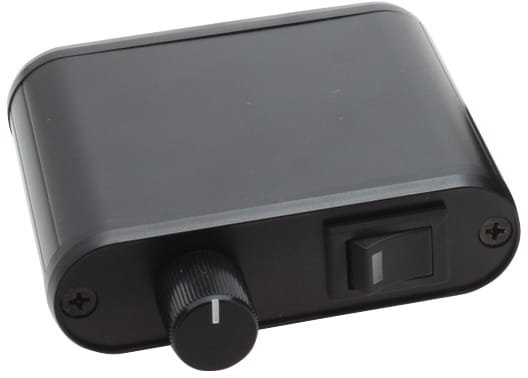

- Includes a dimmer box to control the light intensity
- OLED panels can be tilted up and down to provide the ideal illumination angle
- Light weight compact stand
- Ideal for examining small parts
Guarantee Safe and Secure Payment Checkout
Description
Aven Tools 26800B-223-SPZ
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35″ to 0.14″)
- Working distance 108mm (4.25″) – the best in class
- 17mm (0.67″) high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
Stereo Zoom Binocular Microscope SPZ-50[6.75x-50x] on Post Stand with OLED Ring Light

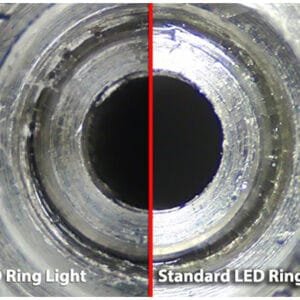

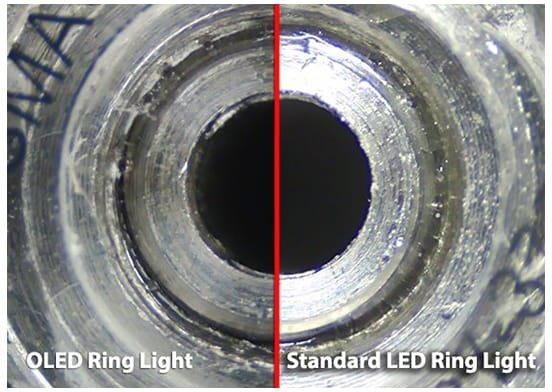

Provides crisp clear 3D images, long working distance and a wide field of view. 6.7x to 50x continuous zoom with 10x eyepieces. When compared to standard LED ring lights, the OLED Ring Light provide reduced glare and a natural light tone. Includes a dimmer control box and a ring light adapter. System Contents:
SPZ-50 Stereo Zoom Microscope
26200B-223: OLED Ring Light
26800B-511: Pole Stand

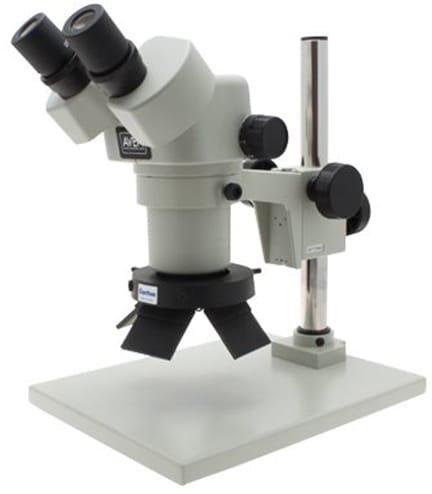

SPZ-50 STEREO ZOOM MICROSCOPE WITH OLED RING LIGHT AND POLE STAND
SPZ binocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for high throughput inspection stations and engineering and science labs. This system features the OLED Ring Light. When compared to standard LED ring lights, the OLED Ring Light provide reduced glare and a natural light tone.
SPZ-50 STEREO ZOOM MICROSCOPE
WIDE MAGNIFICATION RANGE
Aven’s SPZ-50 Stereo Zoom Microscope has a magnification range of 6.7x to 50x, which can be enhanced to up to 200x with optional auxiliary lenses and eyepieces.
ZOOM ADJUSTMENT
Graduations on the zoom knob tell operators the exact magnifications at which they are working. This is a particularly convenient feature for applications requiring very specific adjustments,

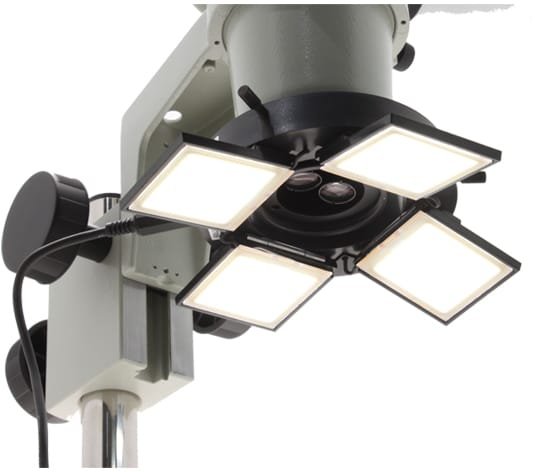

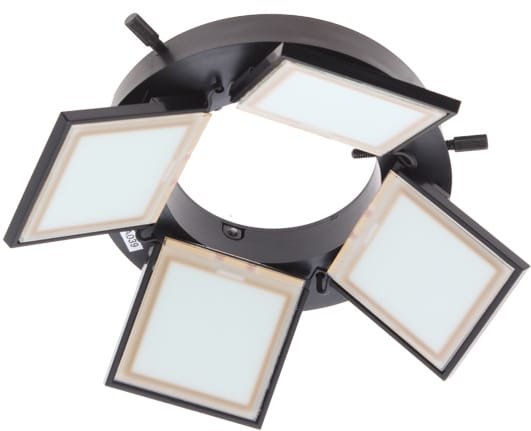

OLED RING LIGHT
The OLED ring light consists of four Organic Light Emitting Diode (OLED) panels, providing uniform, shadow-free illumination. OLED offers excellent color rendering close to natural light for ideal observation of true-to-life colors. Each panel can be tilted up and down, allowing for the ideal illumination angles.
POLE STAND
This lightweight and compact stand is ideal for examining small parts and where bench space is a premium. The package comes with rack and pinion focus mount with coarse focus knob
Microscopes/Benchtop and Portable Microscopes Template | |
|---|---|
| Type (Microscopes) | Stereo |
| Body Style | Binocular |
| Illumination Type | LED |
| Diopter Adjustment | Yes |
| Eyepiece Magnification | 10 |
| Interpupillary Distance Max | 75 MM |
| Interpupillary Distance Min | 52 MM |
| Magnification max | 50 x |
| Magnification min | 6.75 x |
| Zoom Ratio | 7.46:1 |
| Rotating Head | Yes |
| Stand Type | Pole |
| Stand Base Size | 220mm x 284mm x 15mm |
| Camera Included | No |
| ESD Safe | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | This product will be free from defects in material and workmanship under normal use and service for one year after date of purchase. |
| Product Weight | 15.55 LBS |
| Product Height | 12.00 IN |
| Product Length | 20.00 IN |
| Product Width | 13.50 IN |
| Shipping Weight | 16 LBS |
| Country of Origin | Taiwan |
| Shipping Height | 12.00 IN |
| Shipping Length | 20.00 IN |
| Shipping Width | 13.50 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresSpec Sheets
| Weight | 15.55 lbs |
|---|---|
| Dimensions | 20 × 13.5 × 12 in |
