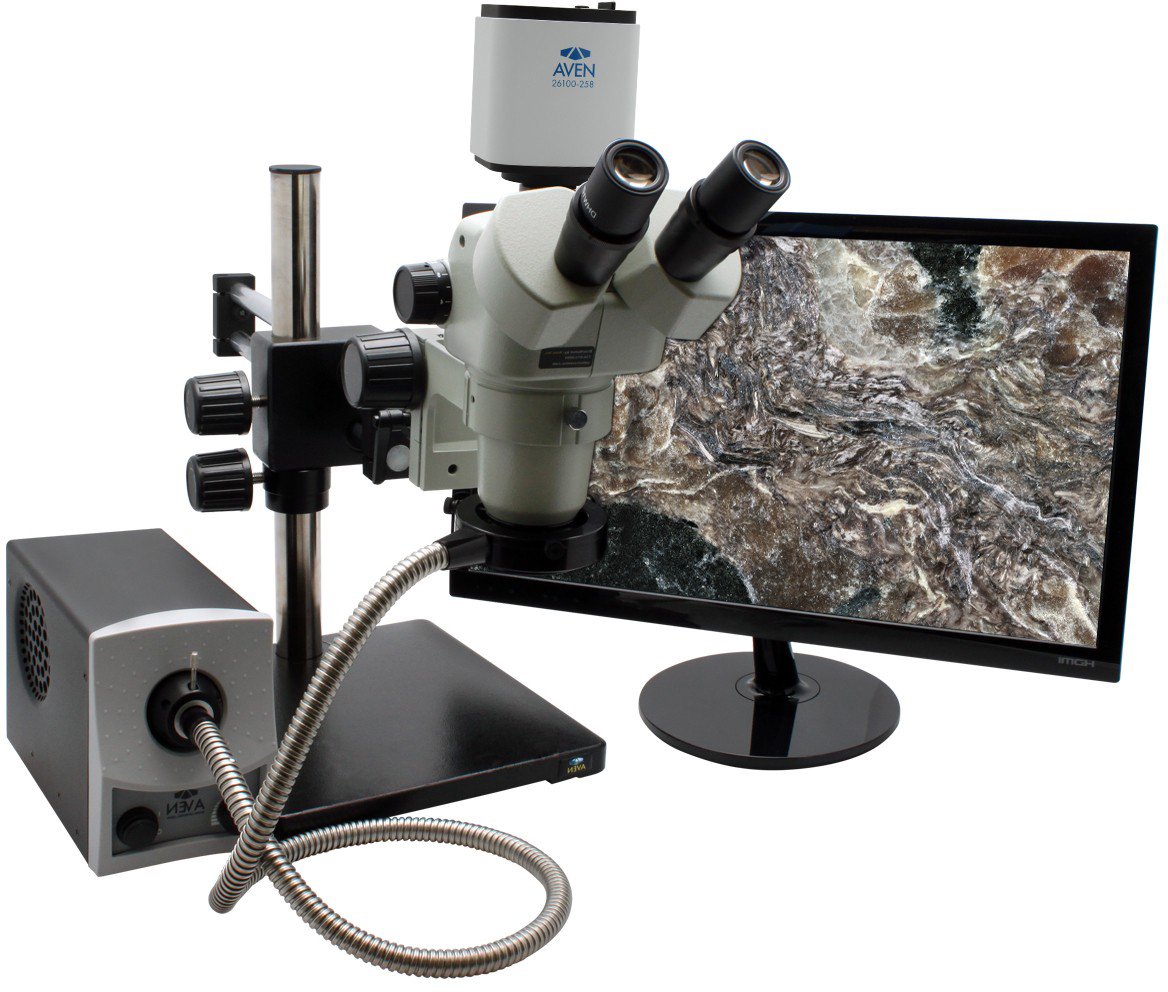

Aven Tools 26800B-382-PRO – Stereo Zoom Trinocular Microscope SPZV-50 (6.7x-50x) on Double Arm Boom Stand, FOI with Mighty Cam Pro

• View images through eyepiece or a monitor simultaneously
• Click stop zoom adjustment for accurate measuring

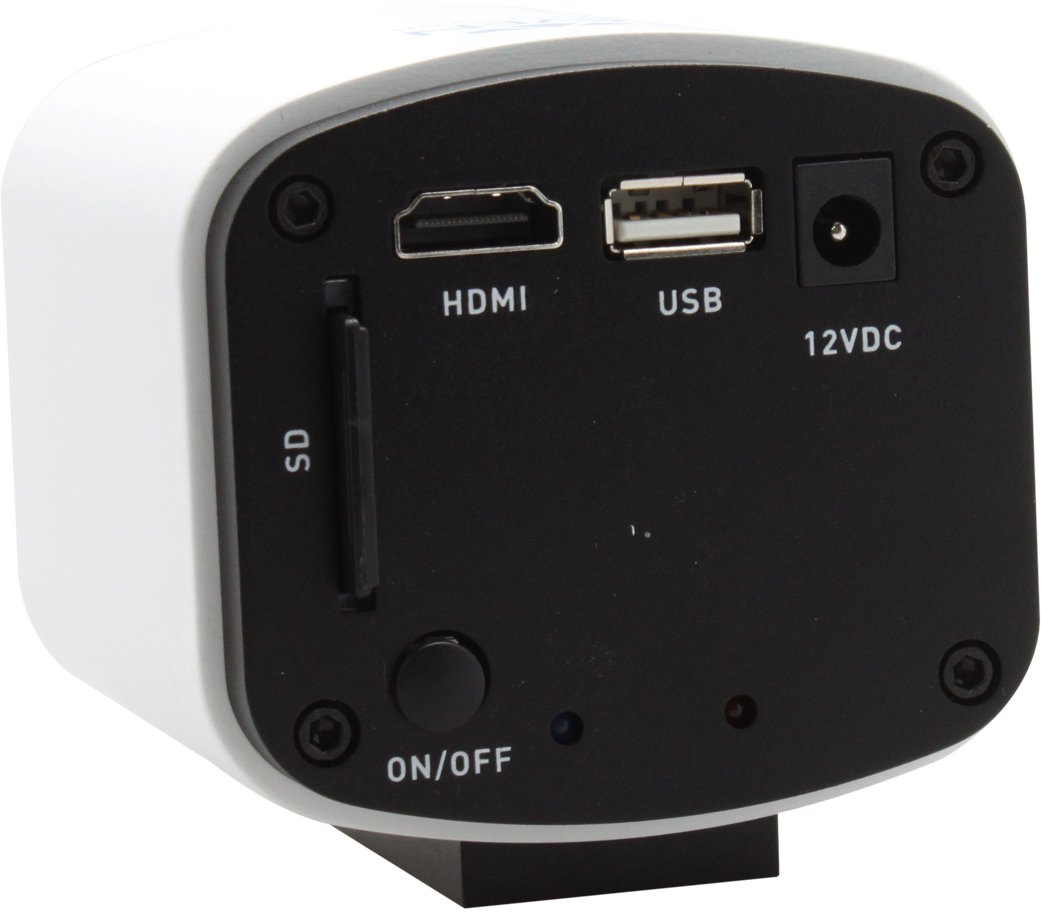

• USB and HDMI outputs – connect to PC or an HD monitor
• Built-in measurement software – no PC required
• Includes advances measurement software for use with a PC

High definition 1080P auto focus inspection system with a 22″ monitor offering superb image quality at 60 frames per second. You can operate this system with or without a PC. Without a PC camera connects directly to the included HDMI monitor. View and record images and perform measurements using the included on screen tools. Images & videos can be saved to the included SD card. Connect the camera to a PC to utilize more advance features in the included software. The included Fiber Optic LED provides bright, shadow-free illumination.

This system includes Aven’s SPZV-50 Stereo Zoom Microscope. Viewing through the microscope a magnification range of 6.7x to 50x is obtained. On screen magnification range is 34x to 255x.

Camera’s color processing is capable of a new level of precision producing extremely high color definition

NO PC REQUIRED

Built in on screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more. Three different length units of millimeter, centimeter and micrometer are provided to meet various measurement requirements in different applications. Simple calibration tool is also included.

The included computational imaging software provides users with more functions such as:

• Auto focus fine tuning
• Intelligent capture and processing
• Efficient measurement and attribute editing
• Reporting

Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.

The Mighty Cam Pro can change the depth of field without adjusting the optics. Simply click on the part of the image you want to focus on and the camera will bring that sector into focus.

The ideal scope for a wide range of investigative/inspection applications, Aven’s dynamic new microscope SPZV-50 extends the boundaries of stereo zoom microscopy, employing standard 15X eyepieces to achieve 6.7x – 50x continuous zoom magnification all the while providing a continuous working distance of 3.3” (84mm).

• 6.7x – 50x optical magnification
• 34x – 255x on-screen magnification
• Click-Stop zoom knobs allow operators to make accurate measurements

Smooth movement of a ball bearing slide allows you to move your microscope easily over and across the object being viewed. Heavy metal base (21lbs; 9.5kg) provides excellent stability.

A versatile illumination source, this device easily adapts to your specific application. The 26200A-310 contains a 24 watt LED lamp, outputs a color temperature of 5600K, and has an expected lamp life of 10,000 hours.

The E-Arm focus mount secures directly to the end of the Ultra Glide Arm, and can be adjusted to tilt to the ideal inspection angle. Features focus adjustment knobs to raise and lower the microscope in precise increments.

Enhance your inspection process with this optional add-on.

This tilt table is ideal for finding the right angle to inspect from. The table plate is covered with an ESD-Safe material that prevents static damage to the object you are inspecting and also keeps it in place. Includes a metal height adjustment base.

• 1080p Full HD Imaging at 60 FPS
• Dual outputs – connect to PC or HD monitor
• USB output connects to PC
• Built-in measurement software – No PC required
• Advanced measurement software included for computer connectivity
• Achieve instant auto focus
• Enhances productivity – eliminates eye strain and body fatigue
• Dual view system – inspect with the microscope and the HD monitor
• 22″ HD Monitor Included
• Save high resolution image/video files directly to SD card
• 1080p Full HD Output
• 6.7x – 50x optical magnification
• 34x – 255x on-screen magnification
• Click-Stop zoom knobs allow operators to make accurate measurements

• Precision assembly applications
• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development
