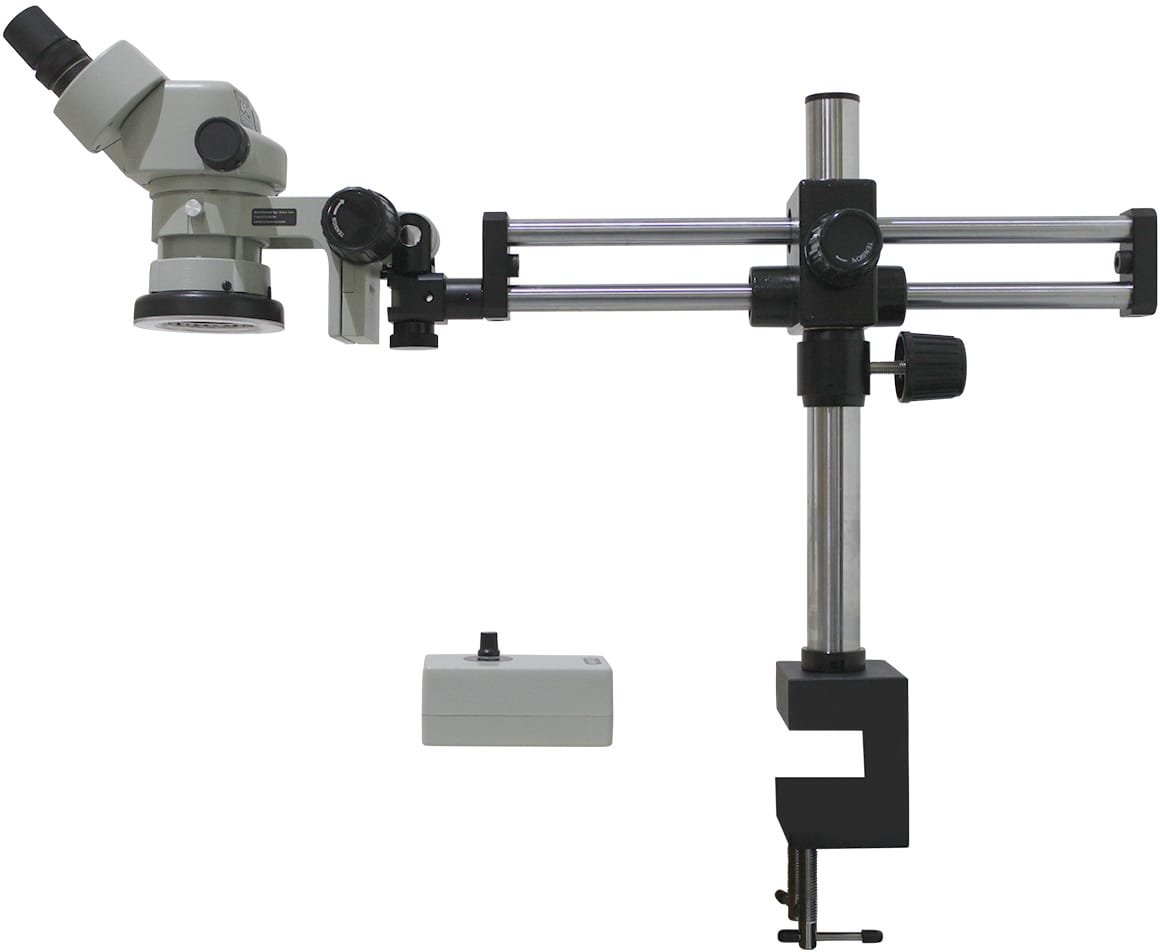

Aven Tools DSZ44-209-536 – DSZ-44 Stereo Zoom Microscope (10x – 44x) on Dual Arm Boom Stand with Integrated Ring Light

• 10x – 44x magnification range
• Superior contruction provides long-term reliability and crystal-clear viewing
• Click-stop zoom adjustment provides accurate measurement throughout the zoom range
• 22.4″ horizontal boom arm easily glides to the required position
• Heavy-duty table clamp secures to the edge of a work bench, saving vauable space

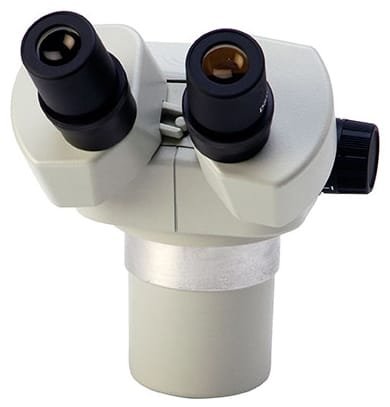

Aven’s DSZ-44 stereo zoom microscope provides crisp clear 3D images, long working distance and a wide field of view. 10x to 44x continuous zoom with 10x eyepieces.

Includes Aven’s Double Arm Boom Stand with an integrated table clamp. The 22.4″ horizontal arm easily glides to the required position.

Comes complete with Aven’s E-Arm focus mount with an integrated LED ring light and LED adjustment controller.

Aven’s DSZ-44 Stereo Zoom Microscope has a magnification range of 10x to 44x, which can be enhanced to up to 140x with optional auxiliary lenses and eyepieces.

ZOOM ADJUSTMENT

Graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.

HIGH EYE POINT

10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and a highly Adjustable Interpupillary Distance of 52mm to 75mm provides operators with even more flexibility in their individual applications.

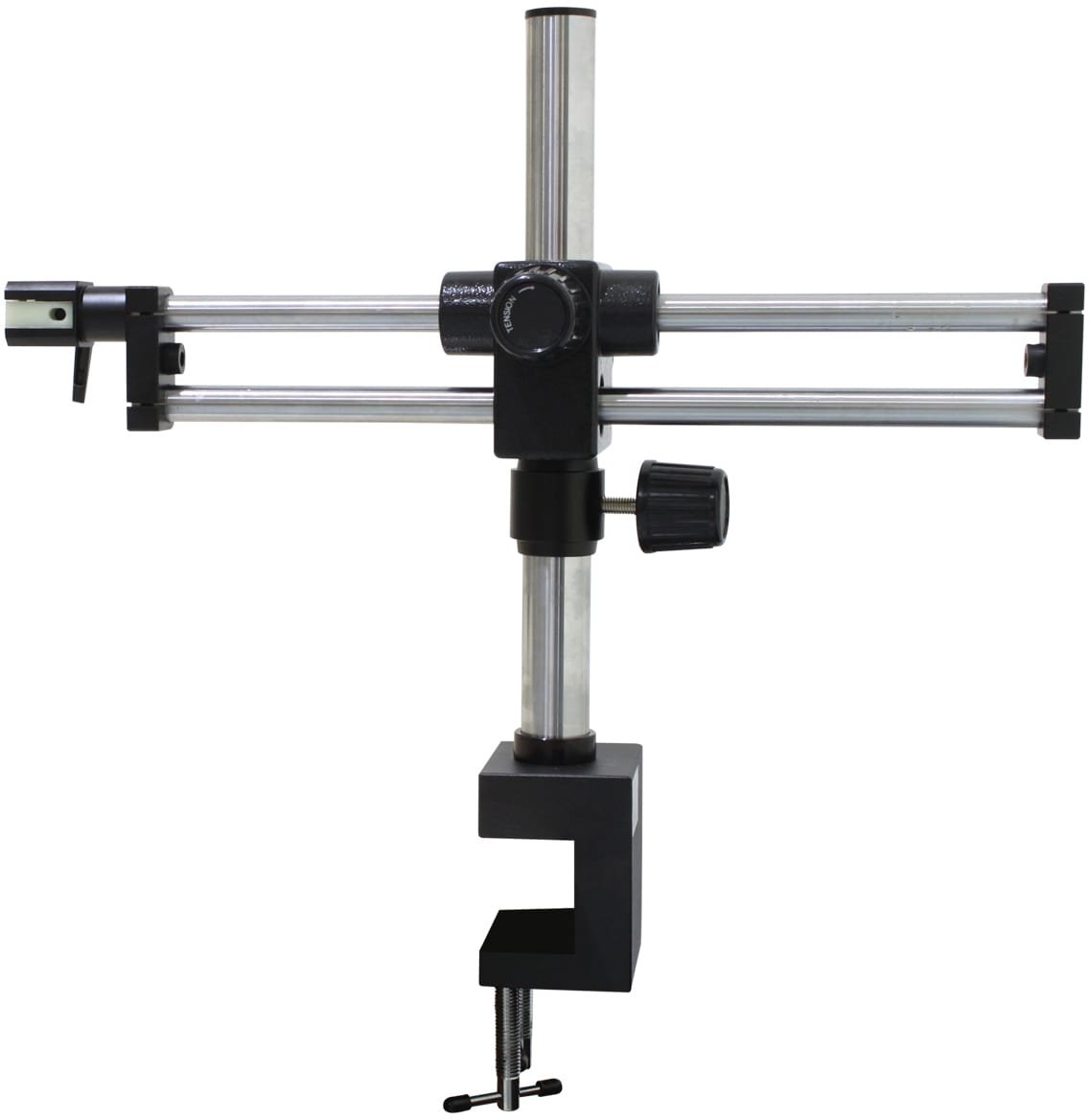

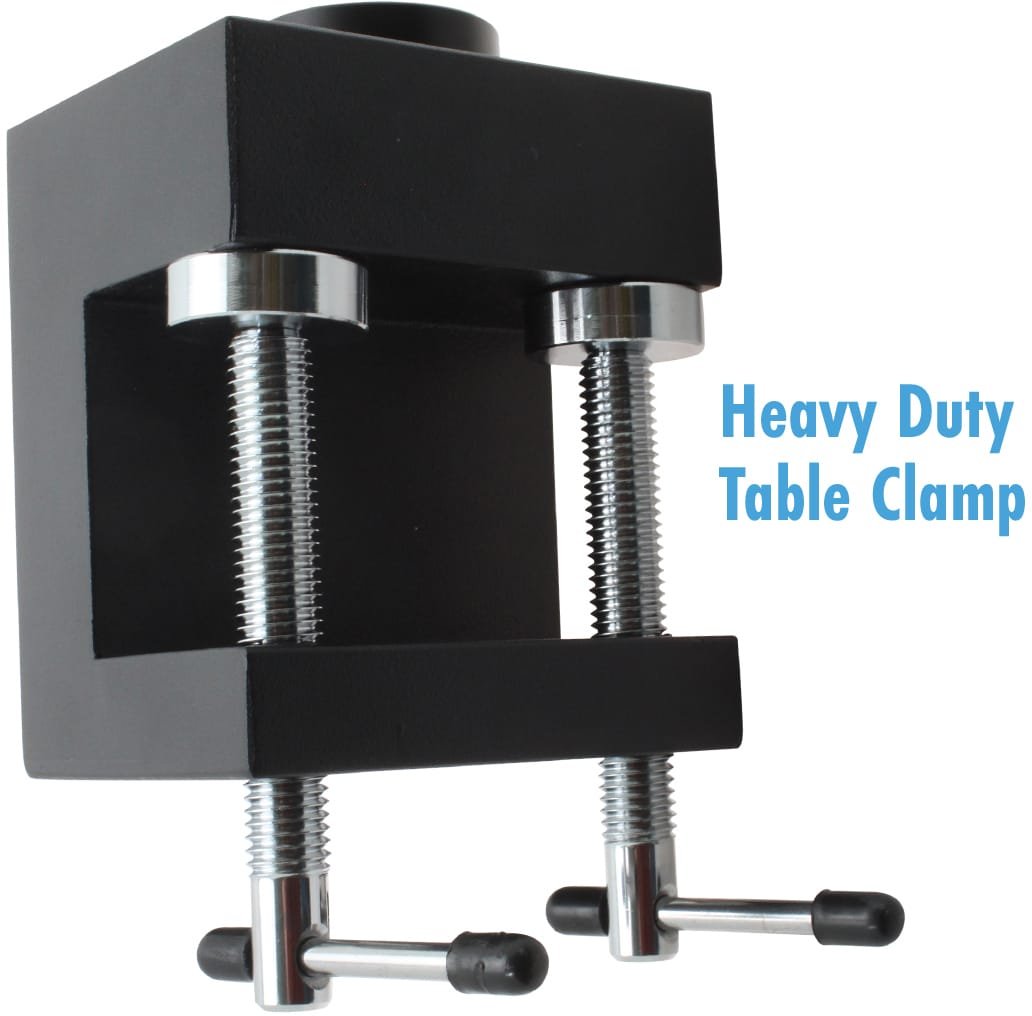

Smooth movement of a ball bearing slide allows you to move your microscope easily over and across the object being viewed. Heavy-duty table clamp provides excellent stability. The heavy-duty all-metal constuction provides durability

• Vertical Post Height: 384mm.
• Vertical Post Diameter: Φ37.2mm.
• Horizontal Arm Length: 570mm.
• Horizontal Diameter: Φ20mm.
• Mounting Hole on the Top of Horizontal Arm: 16mm.
• Base Dimensions: 140x70x65mm.
• Clamp Opening Size: 0-40mm

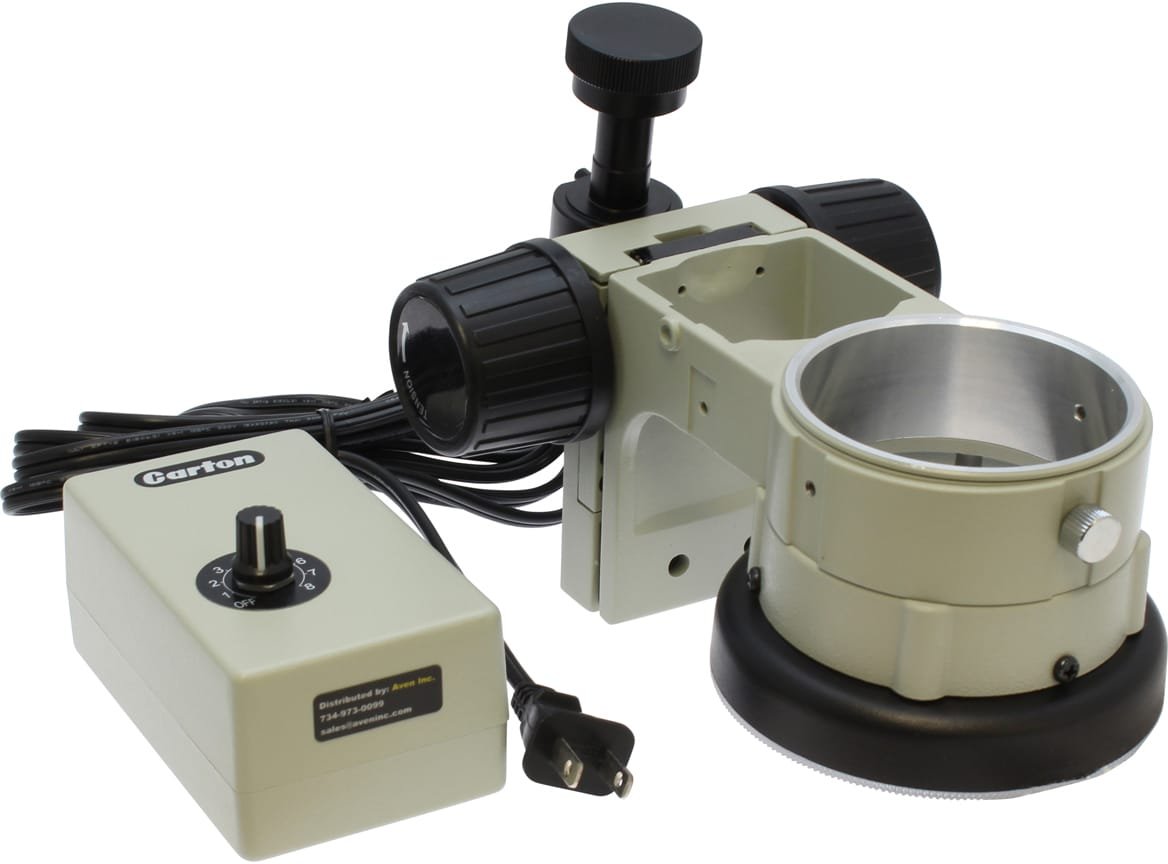

This focus mount features a built in eco friendly daylight 60 LED ring light for ultra-bright illumination. LED lights have a long life and low power consumption. The adjustable coarse focus knobs allow for easy vertical, incrememental adjustment of the microscope body. Includes an external LED dimmer control box.

Expand the magnification range of the SPZ-50 Stereo Zoom Microscope with these optional eyepieces

Expand the magnification range of the SPZ-50 Stereo Zoom Microscope with these optional objective lenses

• 10x – 44x magnification range
• Superior contruction provides long-term reliability and crystal-clear viewing
• Click-stop zoom adjustment provides accurate measurement throughout the zoom range
• 22.4″ horizontal boom arm easily glides to the required position
• Heavy-duty table clamp secures to the edge of a work bench, saving vauable space
• Focus mount with built-in LED ring light.
• Expandable magnification range with optional eyepieces and objective lenses

• Precision assembly applications
• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development
