Aven Tools SPZV50-258-553 – Stereo Zoom Trinocular Microscope (6.7x – 50x) with Mighty Cam Pro

• Dual view system – inspect with the microscope and the HD monitor
• Large zoom ratio 7.46:1 – best zoom ratio in class
• Field of View 34.3mm to 3.6mm (1.35″ to 0.14″)
• Working distance 108mm (4.25″) – 17mm (0.67″) high eye point wide field
• 1080p Full HD Imaging at 60 FPS

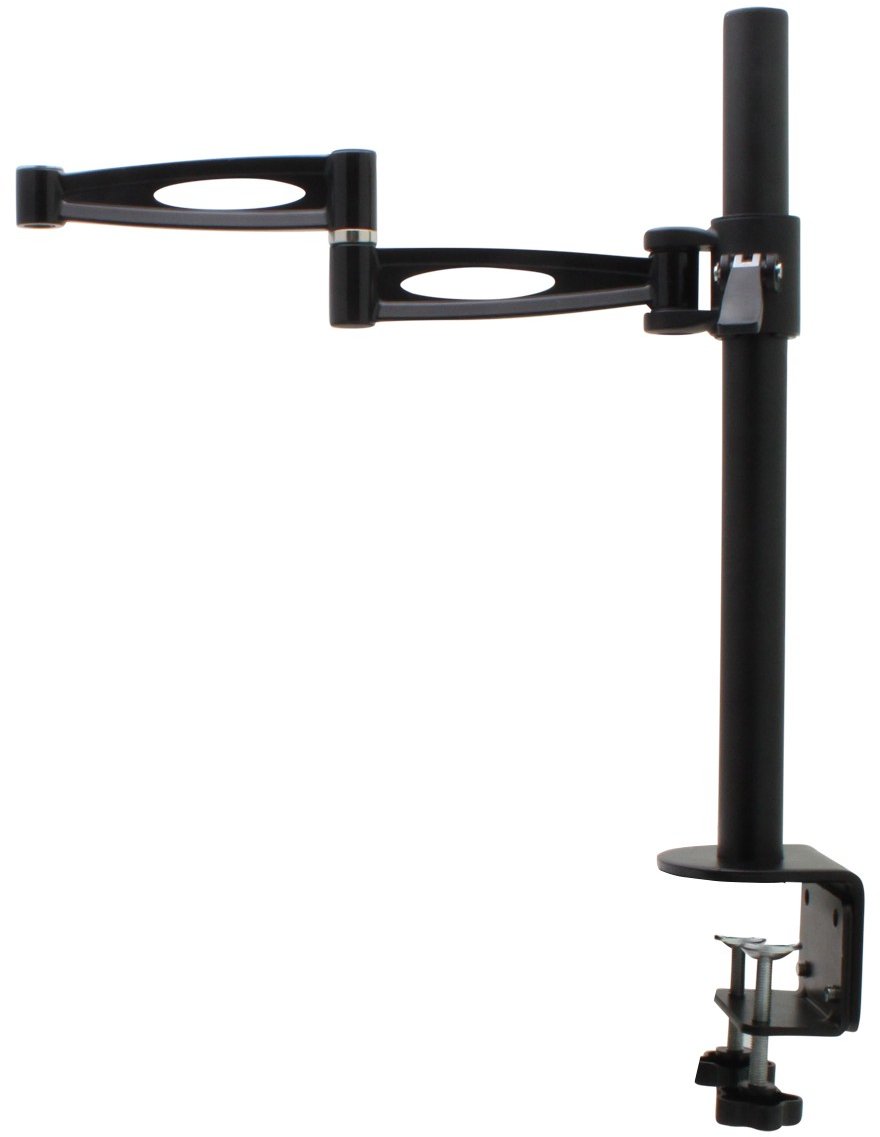

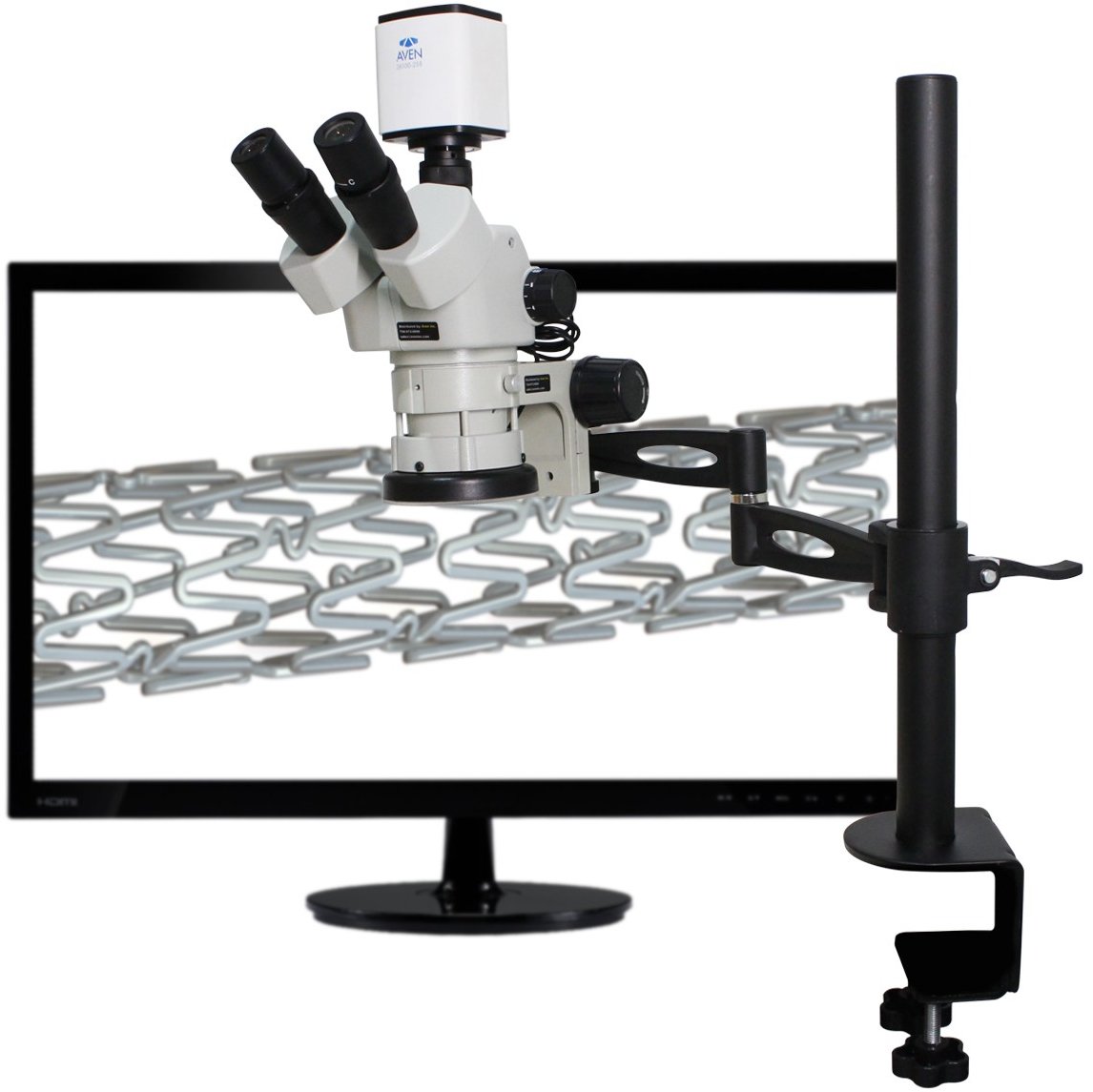

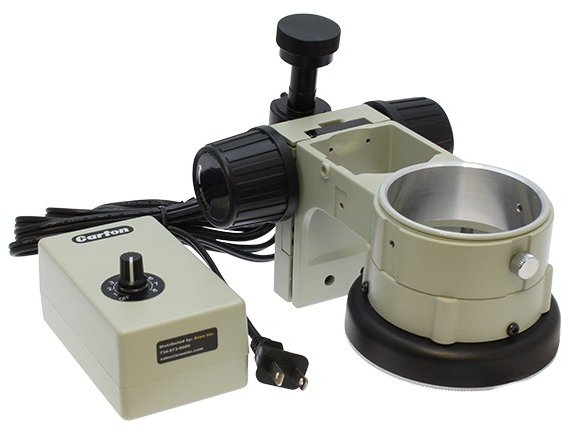

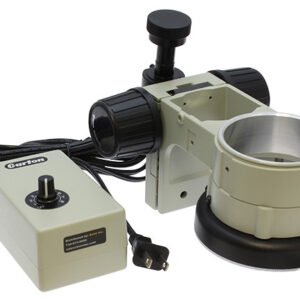

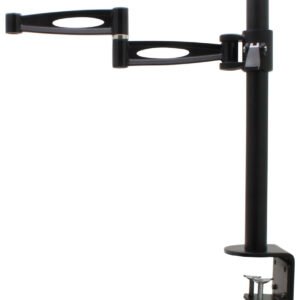

The Aven Tools SPZV50-258-553 comes with the SPZV-50 stereo zoom trinocular microscope, the Mighty Cam Pro on a compact articulating arm stand, LED ring light focus mount, and a 22-inch LCD HD monitor. It is a high-definition 1080P auto focus inspection system offering superb image quality at 60 frames per second.

Users can operate this system with or without a PC. Without a PC, the camera connects directly to the included HDMI monitor. View and record images and perform measurements using the included on-screen tools. Images and videos can be saved to the included SD card. Connect the camera to a PC to utilize more advanced features in the included software.

Built-in on-screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance, and much more. Millimeter, centimeter, and micrometer length units are provided to meet various measurement requirements across applications.

The included computational imaging software offers functions such as:

• Autofocus fine-tuning
• Intelligent capture and processing
• Efficient measurement and attribute editing
• Reporting

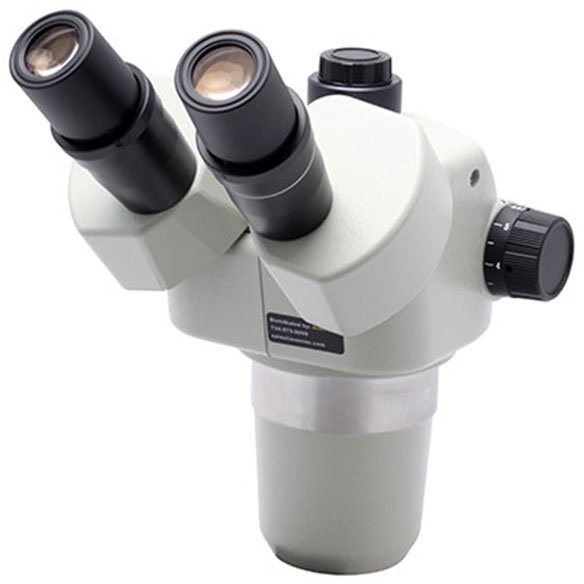

The ideal scope for a wide range of investigative/inspection applications, Aven’s dynamic microscope SPZV-50 extends the boundaries of stereo zoom microscopy, employing standard 10X eyepieces for continuous zoom magnification of 6.7x to 50x. On screen magnification range is 34x to 255x. Click-Stop zoom knobs allow operators to make accurate measurements.

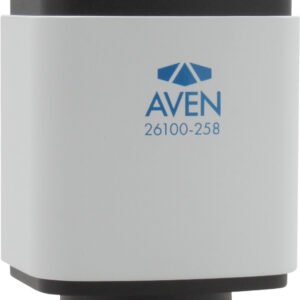

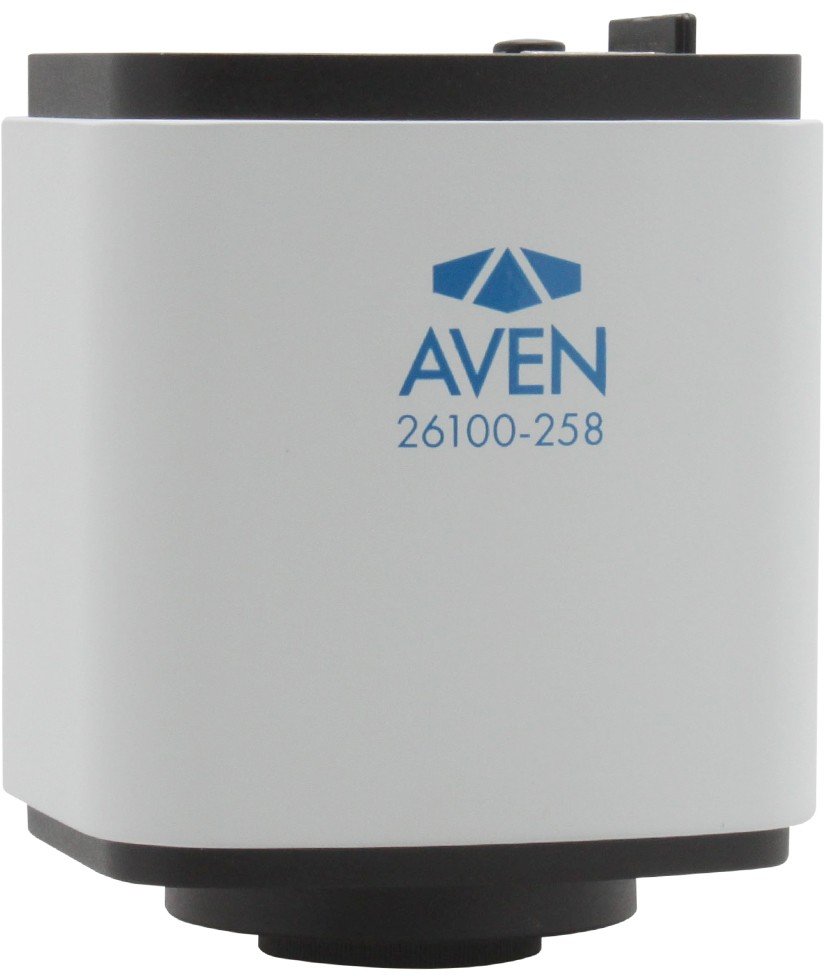

The heart of this system is our Mighty Cam Pro auto-focus camera. It offers both continuous and single-shot auto-focus modes helping you increase your productivity. The camera also supports mouse wheel control for fine-tuning. Data transfer up to 60 frames per second enables users to get clear images with ease.

The Mighty Cam Pro features dual outputs – USB and HDMI – for use with a PC or an HD monitor.

• Precision assembly applications
• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development
