Bird 4480A – Element-Free RF Wattmeter for CW/Digital Transmissions

• Element-free design simplifies measurement across multiple frequency bands
• High power handling: up to 10,000 watts
• Wide frequency range: from 2MHz to 1000MHz, making it adaptable to various RF applications
• Measures true power for both continuous wave (CW) and digitally modulated signals
• Precision accuracy of ±4% ensures reliable power measurements for optimized system performance

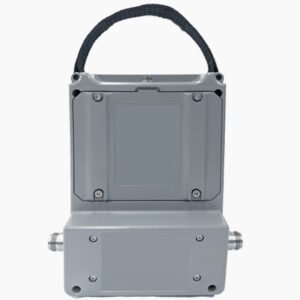

The Bird 4480A is an element-free RF Wattmeter for CW/Digital transmissions. The 4480A is more than just a tool; it’s a game-changing solution designed to meet the rigorous demands of today’s RF measurement landscape. With true average power measurements for both Continuous Wave (CW) and digitally modulated signals, the 4480A ensures unparalleled precision across critical frequency spans from 2MHz to 30MHz and 25MHz to 1000MHz – without the need for traditional, cumbersome elements.

The robust design and versatile capabilities of the 4480A make it the ideal tool for professionals who require consistent and precise measurements in challenging environments.

Power Measurement:

• Forward (FWD)
• Reflected (RFL)
• Voltage Standing Wave Ratio (VSWR)

Accurate measurement of forward and reflected power, as well as VSWR, is essential for ensuring reliable communication and system performance.

Three-Button Interface

• On/off, Switch high/low band, Backlight

Designed for easy use in various conditions, allowing operation with gloves and in low light. The 4480A provides a smooth and efficient user experience.

At the input and output of the line section are Bird Quick-Change type RF connectors, which may be quickly interchanged with any other Bird “QC” connectors. Optional QC connectors are available to allow the 4480A to interface with a wide range of RF connector types.

The chart below provides an overview of Bird’s QC-type “Quick Change” connectors.

• Telecommunications: Ensures optimal performance in wireless systems like cellular, satellite, and Wi-Fi
• Broadcasting: Maintains signal integrity in TV and radio transmission
• Military Communications: Ensures reliable performance of tactical and strategic RF systems
• Aerospace and Defense: Supports precision in complex communication and radar systems
