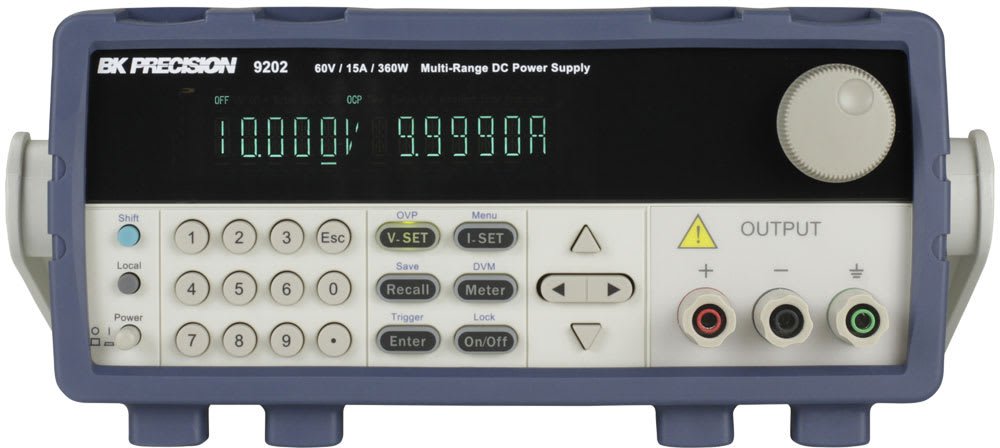

BK 9202B – Multi-Range Programmable DC Power Supply, 360W, 60V, 15A, NO GPIB
43 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Multi-Range 60V/15A/360W DC Power Supply – NO GPIB
- Voltage: 0-60 V
- Current: 0-15 A
- Max Power: 360 W
- Multi-ranging operation
- High programming and readback resolution of 1 mV/0.1 mA
- Output timer function
- List mode programming
- Store and recall up to 72 instrument settings
- Standard USB (USBTMC-compliant), RS-232, and GPIB interfaces supporting SCPI commands for remote control
- Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
Guarantee Safe and Secure Payment Checkout
Description
BK 9202B
- Voltage: 0-60 V
- Current: 0-15 A
- Max Power: 360 W
- Multi-ranging operation
- High programming and readback resolution of 1 mV/0.1 mA
Multi-Range Programmable DC Power Supply, 360W, 60V, 15A, NO GPIB
The BK Precision 9202 can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, this multi-range power supply automatically recalculates voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.
For benchtop applications, this power supply provides a numerical keypad for direct data entry along with convenient cursors and analog-style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant), RS-232, and GPIB interfaces supporting SCPI commands.
Power Supplies/DC Power Supplies Template | |
|---|---|
| Outputs | Single |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 60 V |
| Programmable | Yes |
| Max Current Output 1 | 15 A |
| Meter Type | Digital |
| Linear/Switching | Linear |
| Max Display Resolution Current | 0.1 mA |
| Max Display Resolution Voltage | 1 mV |
| Constant current/voltage | Yes |
| Remote Sensing | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | ATEX, RoHS |
| Interfaces I/O | Analog Output, Other, RS-232, USB |
| Product Weight | 16.98 LBS |
| Product Height | 3.47 IN |
| Product Length | 13.96 IN |
| Product Width | 8.45 IN |
| Shipping Weight | 23 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 8504409540 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V 50/60 Hz |
| Country of Origin | China |
| Shipping Height | 8.00 IN |
| UPC | 817050920208 |
| Shipping Length | 19.75 IN |
| Shipping Width | 12.00 IN |
You must be logged in to post a review.
Manuals/Guides
Brochures
| Weight | 16.98 lbs |
|---|---|
| Dimensions | 13.96 × 8.45 × 3.47 in |
