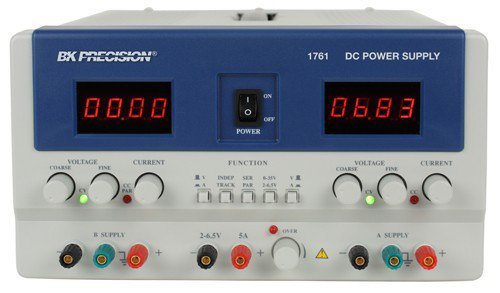

B&K Precision 1761 – Triple Output DC Power Supply

• Voltage: 0-35 V (A&B), 2-6.5 V (C)
• Current: 0-3 A (A&B), 5 A (C)
• CV (constant voltage)/CC (constant current) mode operation
• Overload and reverse polarity protection

The 1760A series triple output DC power supplies offer three independent outputs with coarse and fine adjustment knobs for volts. The 4-digit LED display offers 10 mV and 1 mA resolution, providing the capability to set voltage and current values more accurately than 3-digit displays found in most comparable power supplies.

These BK Precision Triple Output DC Power Supplies are high quality, general-purpose DC power sources. They provide two “main” supplies and a “third” auxiliary output with a 4-6.5V (2-6.5V for models 1761 & 1762) DC output. The “main” V supplies are adjustable with both coarse and fine voltage controls for precise settability and are capable of the current output of 0-2A (0-3A for model 1761). The “third” supply has a current output of 0-5A, allowing it to handle extensive digital logic circuitry. Two large panel-mounted LED meter displays can monitor either the output current or output voltage of each supply.
