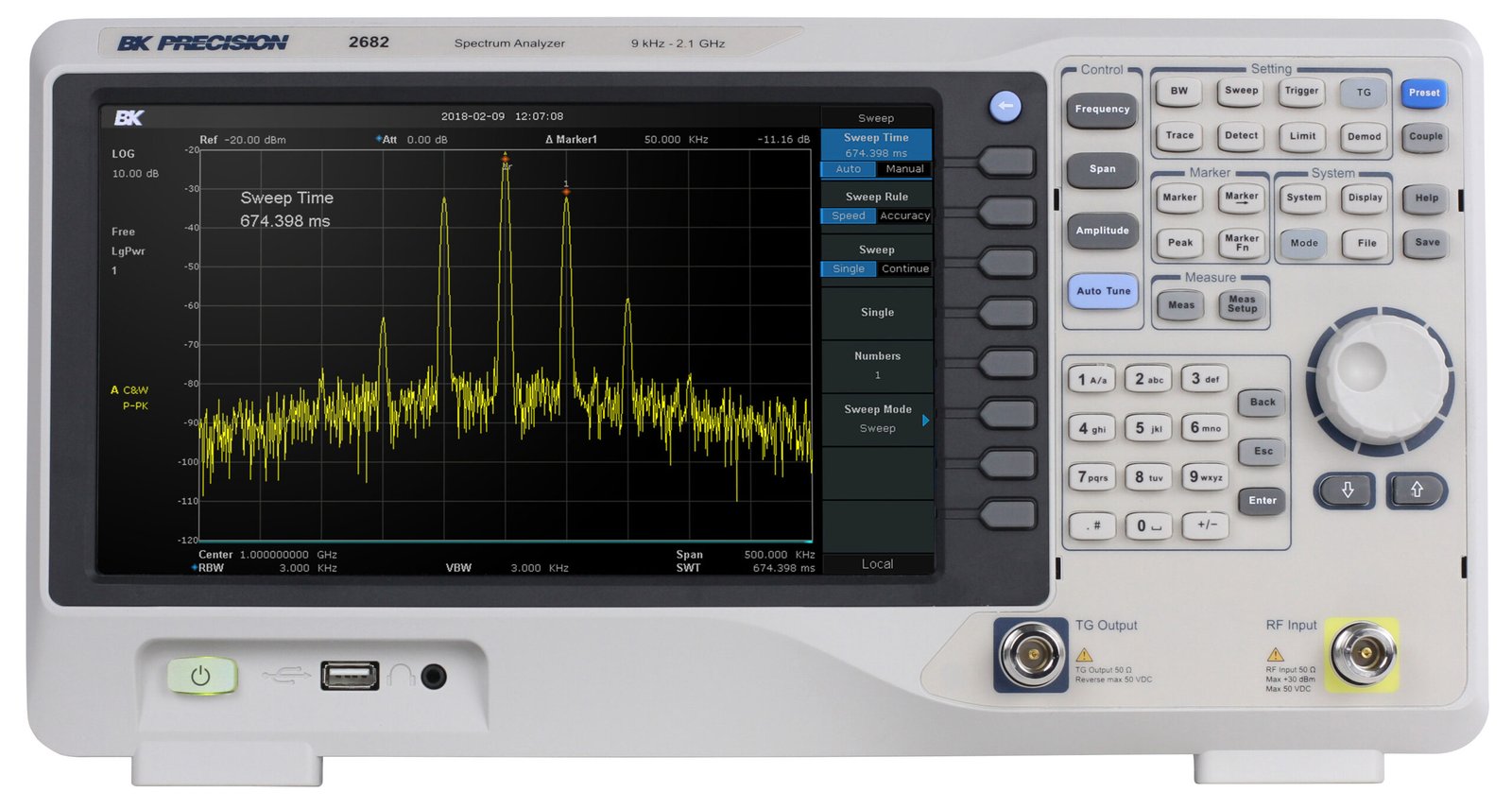

B&K Precision 2682 – 9 kHz – 2.1 GHz Spectrum Analyzer
10 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
2.1 GHz Spectrum Analyzer with Tracking Generator
- Frequency range: 9 kHz – 2.1 GHz
- High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
- Low phase noise of -98 dBc/Hz @ 10 kHz offset
- Low level uncertainty of ±0.7 dB
- 1 Hz minimum resolution bandwidth (RBW)
- Preamplifier and tracking generator standard on all models
- 10.1″ wide-screen 1024 x 600 color display
- LAN and USBTMC connectivity
- USB host port to store and recall waveform data, setups, and screen captures
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 2682
- Frequency range: 9 kHz – 2.1 GHz
- High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
- Low level uncertainty of ±0.7 dB
- Low phase noise of -98 dBc/Hz @ 10 kHz offset
- 1 Hz minimum resolution bandwidth (RBW)
9 kHz – 2.1 GHz Spectrum Analyzer
The 2682 spectrum analyzer delivers performance and functionality in a frequency range from 9 kHz to 2.1 GHz. This model offers a standard pre-amplifier, tracking generator, and 1 Hz minimum RBW. The included advanced measurements give the user access to even more powerful features. In addition, this analyzer provides low phase noise and displayed average noise level (DANL) to view critical detail in the spectrum which is beautifully displayed on the 10.1” widescreen color display. The reflection measurement option enables VSWR, reflection coefficient, and return loss measurements, while the EMI pre-compliance option enables pre-defined bandwidth set points and quasi-peak detection. This analyzer is ideal for applications in 2-way radio, site surveying, EMI pre-compliance, characterizing the frequency response of RF devices, and more.
Spectrum Analyzers/Spectrum Analyzers Template | |
|---|---|
| Bandwidth Range Max | 2.1 GHz |
| Bandwidth Range Min | 9 kHz |
| Noise Floor | -161 dBm (-161 dB) |
| Tracking Generator | Yes |
| Type(Spectrum Analyzers) | Benchtop |
| Channel Power Measurement | Yes |
| Marker Measurement | Yes |
| Preamplifier | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |

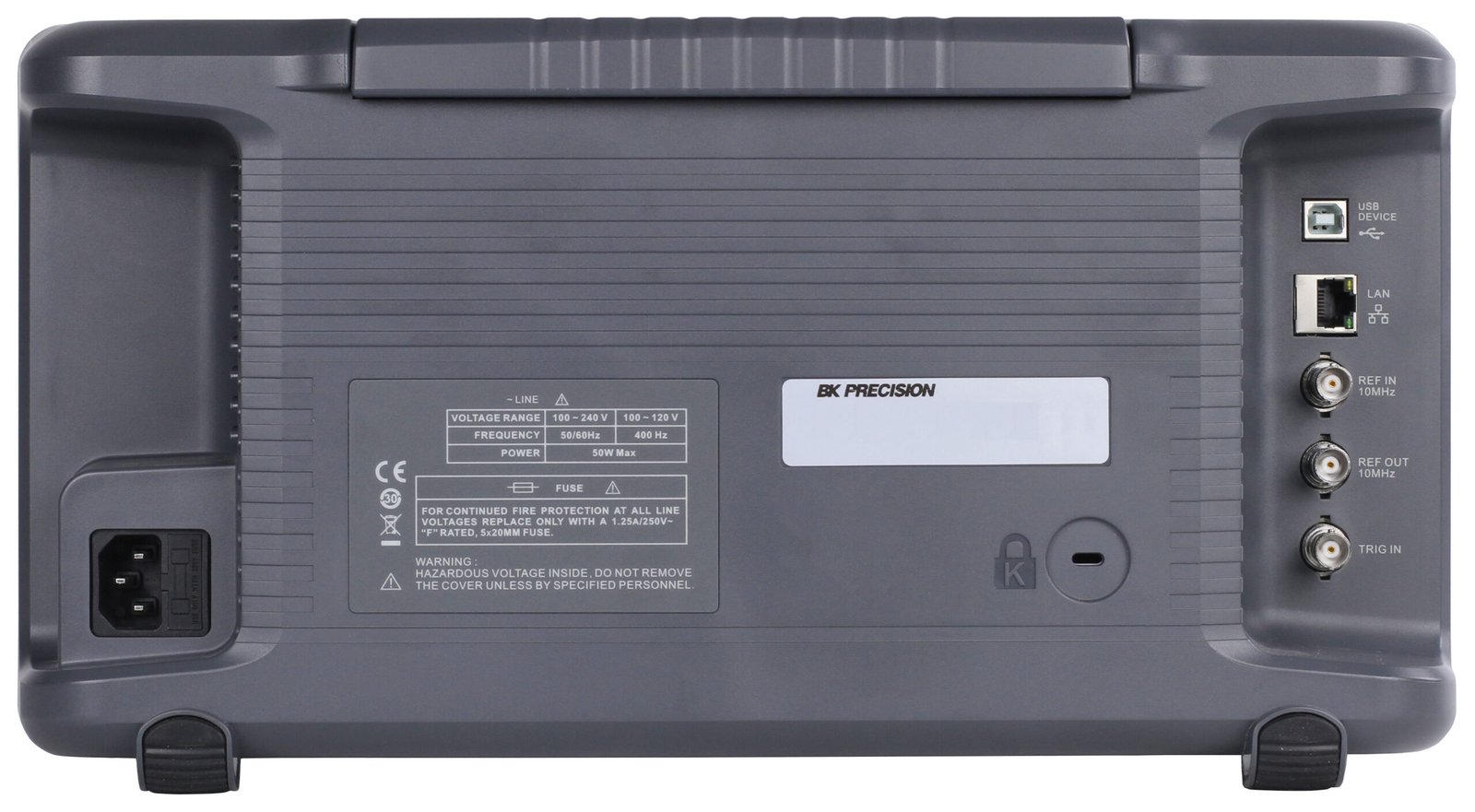

| Interfaces I/O | LAN / Ethernet, USB Host, USB |
| Product Weight | 10.1 LBS |
| Product Height | 8.15 IN |
| Product Length | 4.59 IN |
| Product Width | 15.47 IN |
| Shipping Weight | 13 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.33.3800 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 10.1 lbs |
|---|---|
| Dimensions | 4.59 × 15.47 × 8.15 in |
