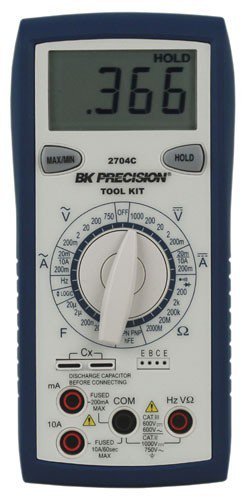

B&K Precision 2704C – Manual Ranging Digital Multimeter with Transistor Test Kit and Test Leads
16 people are viewing this product right now
Original price was: $108.90.$87.51Current price is: $87.51.
Shipping calculated at checkout.
Estimated delivery:5 days
2704C DMM WITH TEST LEADS
- Magnetic hanger
- AC voltage to 750 V
- Capacitance to 20 uF
- Diode test
- hFE Transistor test
- One-handed operation
- Measures up to 10 A (AC & DC)
- DC voltage to 1000 V
- Resistance to 2000 MΩ
- Continuity test
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 2704CKIT
- Magnetic hanger
- AC voltage to 750 V
- Capacitance to 20 uF
- Diode test
- hFE Transistor test
Manual Ranging Digital Multimeter with Transistor Test Kit and Test Leads
The 2704C has all of the functionality for basic Digital Multimeter applications including some high-end features you might not expect. The 2000 count LCD can display resistance values up to 2 Gohm, capacitance to 20 uF, or a transistors common-emitter gain value up to 1000. Value-packed features make this meter a must in every ’s “Tool Kit”.
- DC Voltage to 1000V
- DC Current to 10A
- Diode test
- AC Voltage to 750V
- Continuity test
B&K Precision’s 2700 Tool Kit Series
These excellent meters are for most jobs that require flexibility, accuracy, and speed. Value-packed features make these meters a must for everyone’s “Tool Kit”.
Magnetic Hanging Strap
This convenient feature allows you to hang your DMM on any magnetic metallic surface freeing up your hands for troubleshooting.
Single-handed Operation
The ergonomic design allows both left and right-handed users to rotate the knob while holding the meter in one hand. While one hand keeps the probe on the circuit, the other hand changes the meter’s function. This speeds up troubleshooting because you don’t have to locate the probe point in the circuit again.
Model Comparison
| 2712 | 2709B | 2708B | 2707B | 2706B | 2705B | 2704C | 2703C | |
| Ranging | Auto/Manual | Auto/Manual | Auto/Manual | Manual | Manual | Auto/Manual | Manual | Manual |
| True RMS | AC + DC | ✔ | ✔ | ✔ | – | – | – | – |
| Current | 10 A AC/DC | 10 A AC/DC | 10 A AC/DC | 10 A AC/DC | 200 mA AC/DC | 10 A AC/DC | 10 A AC/DC | 10 A DC |
| Capacitance | to 40 uF | to 66 mF | – | to 20 uF | to 20 mF | – | to 20 uF | – |
| Transistor Test | – | – | – | ✔ | – | – | ✔ | – |
| Frequency Counter | to 500 KHz | to 66 MHz | – | to 20 MHZ | to 40 kHz | – | to 20 MHz | – |
| Temperature | – | – | – | – | ✔ | – | – | – |
| Logic Probe | – | – | – | ✔ | – | – | ✔ | – |
| Backlight LCD | ✔ | ✔ | – | ✔ | – | – | – | – |
| Analog bar Graph | ✔ | – | ✔ | – | – | – | – | – |
| Battery test | – | – | – | – | – | – | – | ✔ |
| Auto Power Off | ✔ | ✔ | ✔ | – | ✔ | ✔ | – | – |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 1 V (1000 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 20 mA |
| Resolution AC Current | 10 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 20 mA |
| Resolution DC Current | 10 mA |
| Basic Accuracy V DC | ±(0.8 % rdg + 1 dgts) |
| # Digit Display | 3.5 |
| Counts | 2000 . |
| Backlight | Yes |
| Manual/Autoranging | Manual |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | II |
| CAT Voltage | 1,000 V |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 0.62 LBS |
| Product Height | 165 MM (6.50 IN) |
| Product Length | 43 MM (1.69 IN) |
| Product Width | 78 MM (3.07 IN) |
| Shipping Weight | 2 LBS |
| Country of Origin | Taiwan |
| Shipping Height | 2.75 IN |
| Shipping Length | 7.10 IN |
| Shipping Width | 5.25 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 0.62 lbs |
|---|---|
| Dimensions | 43 × 78 × 165 in |
