B&K Precision 4005DDS – 5 MHz DDS Function Generator
41 people are viewing this product right now
Original price was: $467.50.$410.72Current price is: $410.72.
Shipping calculated at checkout.
Estimated delivery:5 days
5 MHz DDS Function Generator
- Frequency is selectable from 1 Hz to 5 MHz
- Sine, square, or triangle waveform output
- Direct digital synthesis (DDS) architecture
- Bright, easy-to-read LED display
- Number pad for quick input of frequency
- Front panel push button and pull knob can attenuate output by up to 40 dB
- Adjustable duty cycle and DC offset
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 4005DDS
- Frequency is selectable from 1 Hz to 5 MHz
- Sine, square, or triangle waveform output
- Direct digital synthesis (DDS) architecture
- Number pad for quick input of frequency
5 MHz DDS Function Generator

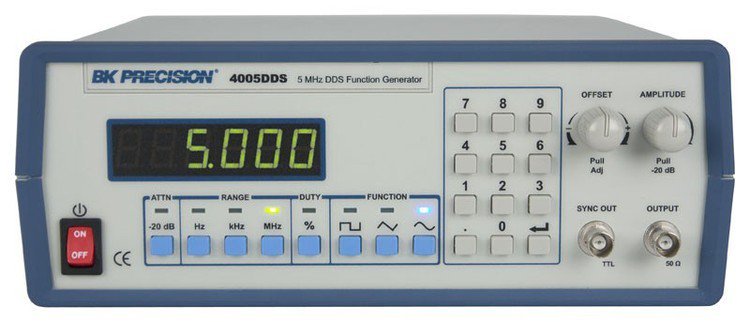

The BK Precision model 4005DDS is a versatile 5 MHz DDS (direct digital synthesis) function generator with a 4-digit display. The instrument generates sinusoidal, triangular, and square waveforms over the 1 Hz to 5 MHz range at precise frequencies. The output voltage can be varied from 0 to 10 Vp-p into 50 ohms or to 20 Vp-p into open circuit. A continuously variable DC offset allows the output to be injected directly into circuits at the correct bias level.
Generators / Counters/Function Generator Template | |
|---|---|
| Channels | 1 |
| Frequency Maximum | 5 MHz |
| Frequency Minimum | 1 Hz |
| Functions | Sine, Square, Triangle |
| Max Amplitude Vpp @ 50 ohms | 10 V |
| Arbitrary | No |
| Screen Type | LED |
| Digital Amplitude Resolution | 1 Bits |
| Triggering | No |
| Counter that displays frequency on screen. | Yes |
| Graphical Display | No |
| Direct Digital Synthesis (DDS) | Yes |
Product General Attributes | |
| Safety Approval | CE |
| Interfaces I/O | Analog Output |
| Product Weight | 5.05 LBS |
| Product Height | 4 IN |
| Product Length | 11.7 IN |
| Product Width | 11 IN |
| Shipping Weight | 7 LBS |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | Taiwan |
| Shipping Height | 6.00 IN |
| Shipping Length | 14.00 IN |
| Shipping Width | 12.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 5.05 lbs |
|---|---|
| Dimensions | 11.7 × 11 × 4 in |
