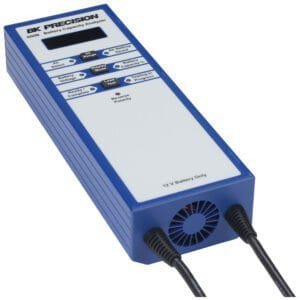

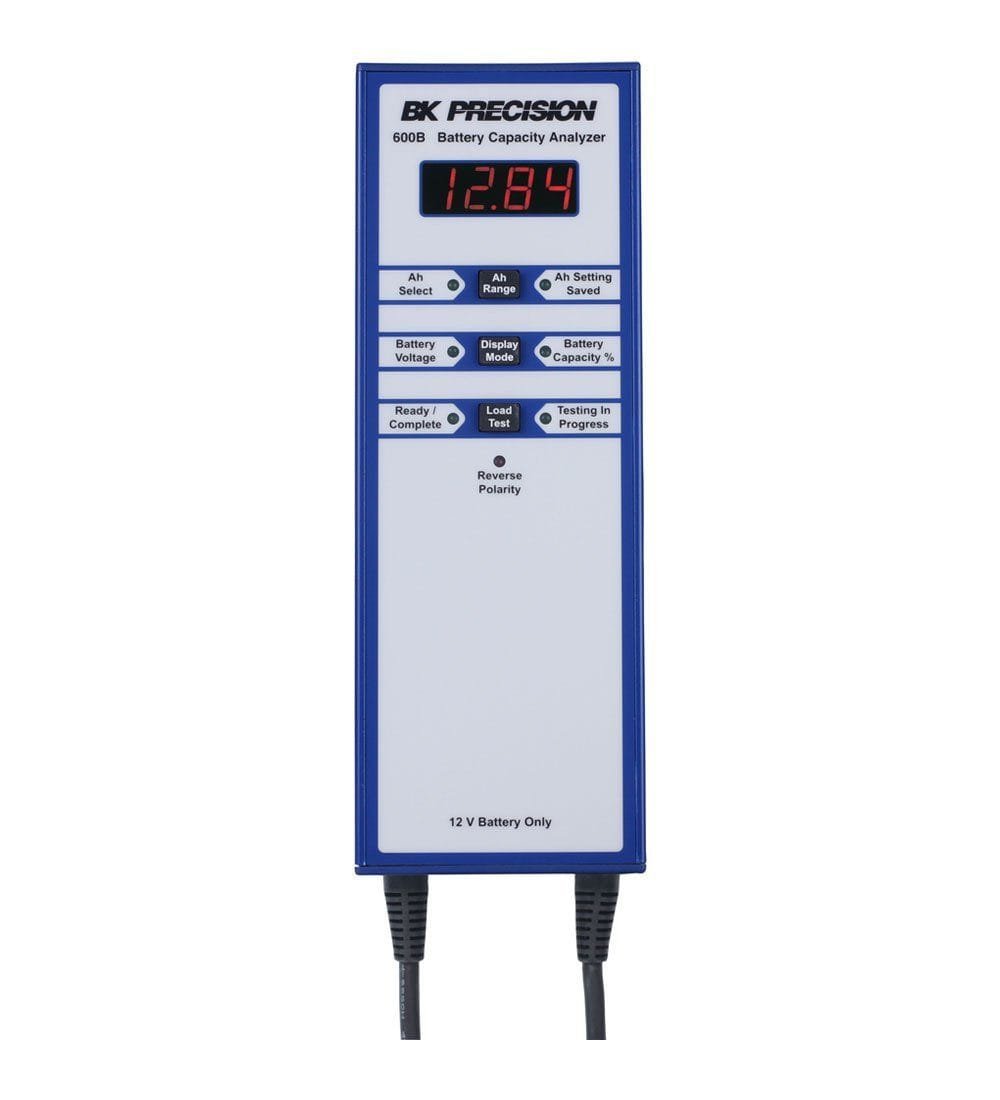

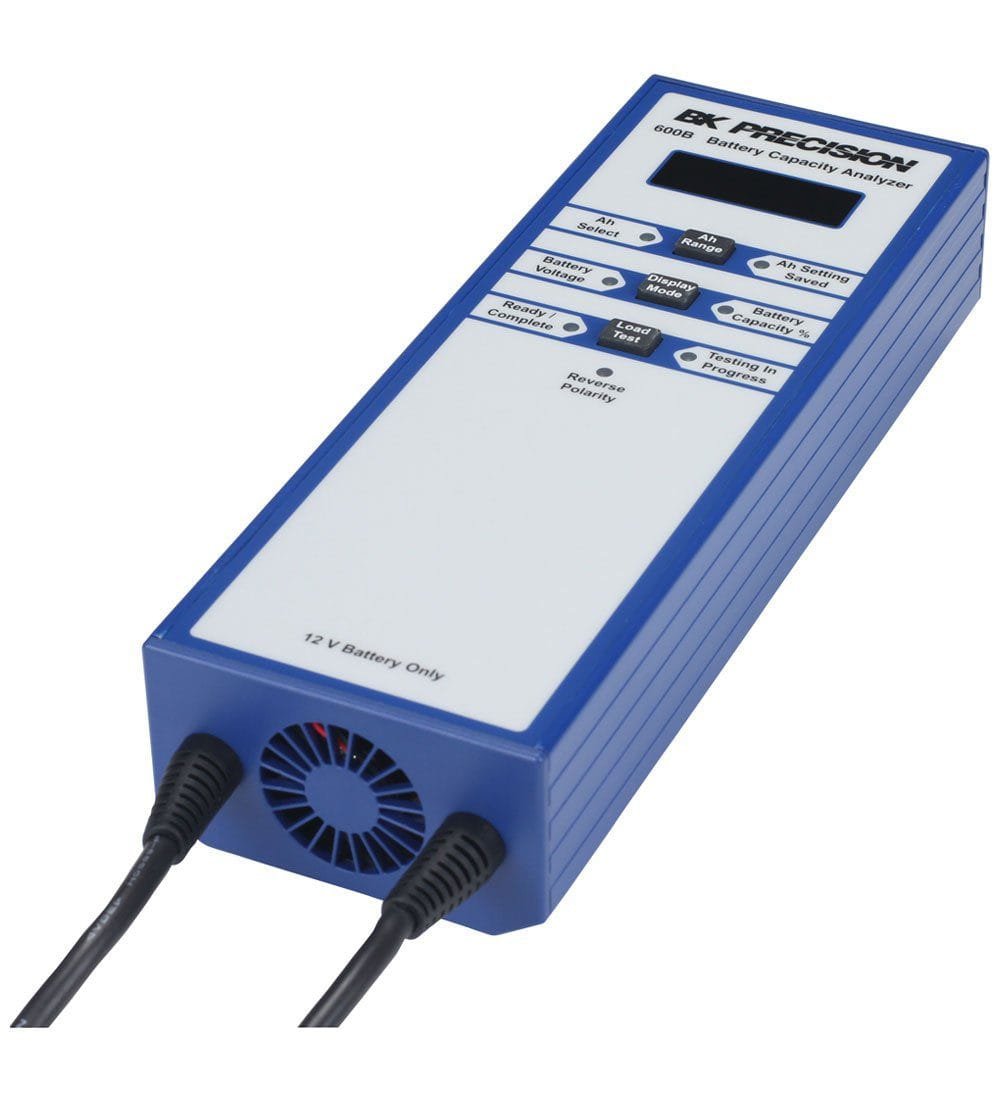

B&K Precision 600B – 12V Battery Capacity Analyzer
14 people are viewing this product right now
Original price was: $409.00.$328.67Current price is: $328.67.
Shipping calculated at checkout.
Estimated delivery:5 days
12V SLA Battery Capacity Analyzer
- Measure remaining battery storage capacity in just seconds
- Test 12V storage type lead acid batteries
- Settable Ah ranges: 7, 12, 24, 42, 65, & 100
- Easy-to-use interface
- Powered by the battery under test eliminating the need for external power to instrument
- High quality, durable Kelvin clamps
- Rubber buttons
- Rugged housing with extruded aluminum case
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 600B – 12V Battery Capacity Analyzer
- Measure remaining battery storage capacity in just seconds
- Test 12V storage type lead acid batteries
- Settable Ah ranges: 7, 12, 24, 42, 65, & 100
- Powered by the battery under test eliminating the need for external power to instrument
The 600B Battery Capacity Analyzer addresses the need to test and maintain sealed lead acid (SLA) batteries used in backup power UPS, emergency lighting, fire alarms, security systems, and many other electrical systems. By quickly characterizing a battery’s response to a load resistance, the meter displays the remaining battery capacity as an indicator of the battery’s health.
The 600B and 601B Battery Capacity Analyzers address the need to test and maintain sealed lead acid (SLA) batteries used in backup power UPS, emergency lighting, fire alarms, security systems, and many other electrical systems. By quickly characterizing a battery’s response to a load resistance, these meters display the remaining battery capacity as an indicator of the battery’s health. Powered by the battery under test, both models support testing of 12 V storage type lead acid batteries. The 601B is also capable of testing 6 V batteries and displaying the internal resistance of the battery.
Battery Testing/Battery Capacity Tester Template | |
|---|---|
| Min Voltage | 0 V |
| Max Voltage | 12 V |
| Accuracy | No Load (open circuit) Voltage Accuracy: ±2 counts |
| Types of Batteries Tested | Lead Acid |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Product Weight | 2.65 LBS |
| Product Height | 2 IN |
| Product Length | 10 IN |
| Product Width | 3 IN |
| Shipping Weight | 3 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030330040 |
| ECCN Number | 3A992 |
| Calibration Included | |
| Country of Origin | Taiwan |
| Shipping Height | 4 IN |
| UPC | 817050060027 |
| Shipping Length | 13 IN |
| Shipping Width | 7 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 3 × 2 in |
