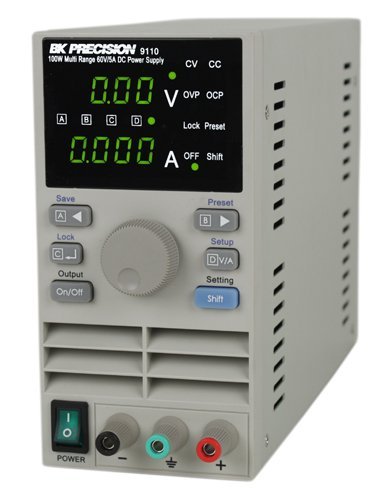

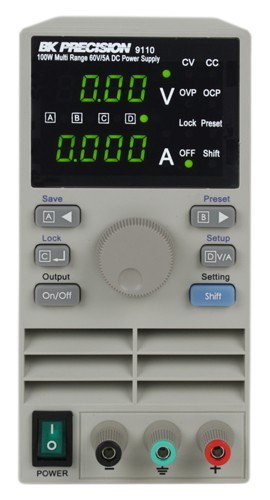

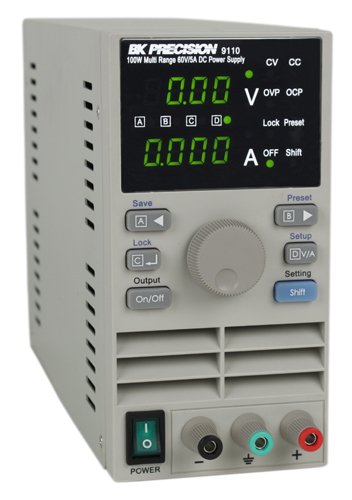

B&K Precision 9110 – 100W Multi Range DC Power Supply
30 people are viewing this product right now
Original price was: $482.90.$424.25Current price is: $424.25.
Shipping calculated at checkout.
Estimated delivery:3 days
100W Multi Range 60V/5A DC Power Supply
- Output rating up to 100 W within 60 V/ 5 A
- Digitally controlled, multi-ranging output
- 10mV/1mA resolution over the full range
- Bright, easy to read display
- Very compact and lightweight
- Low ripple and noise
- OCP, OVP and OTP protection
- Output On/Off control
- Store and Recall 4 x 100 groups of preset Volt/Amp values
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 9110 – 100W Multi Range DC Power Supply
- Output rating up to 100 W within 60 V/ 5 A
- Digitally controlled, multi-ranging output
- 10mV/1mA resolution over the full range
- Bright, easy to read display
The BK Precision 9110 is a new type of power supply. Unlike conventional power supplies with fixed output ratings, it automatically recalculates voltage and current limits for each setting, providing any Volt/Amp combination within the rated power. By providing greatly expanded choices of maximum power Volt/Amp combinations, users can cut down on the number of power supplies required and free up valuable bench space.
Power Supplies/DC Power Supplies Template | |
|---|---|
| Outputs | Single |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 60 V |
| Programmable | No |
| Current Output 1 | Variable |
| Max Current Output 1 | 5 A |
| Meter Type | Digital |
| Switching | No |
| Linear/Switching | Linear |
| Constant current/voltage | Yes |
| Remote Sensing | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Product Weight | 5.9 LBS |
| Product Height | 6.9 IN |
| Product Length | 11.11 IN |
| Product Width | 3.47 IN |
| Data Logging | No |
| HTS/Schedule B Number | 8504.40.9520 |
| ECCN Number | 3A992 |
| Calibration Included | |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| UPC | 817050911008 |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 5.9 lbs |
|---|---|
| Dimensions | 11.11 × 3.47 × 6.9 in |
