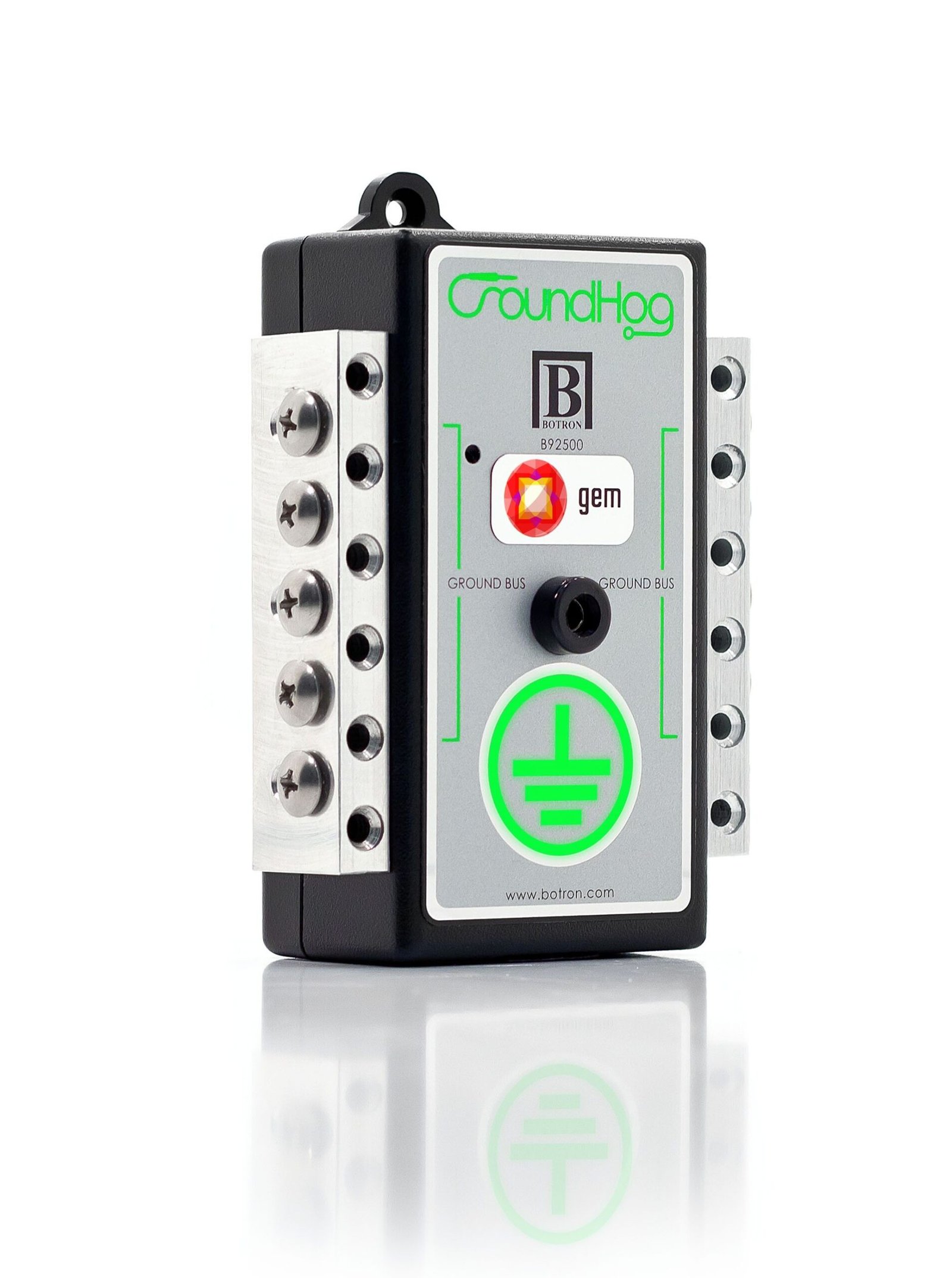

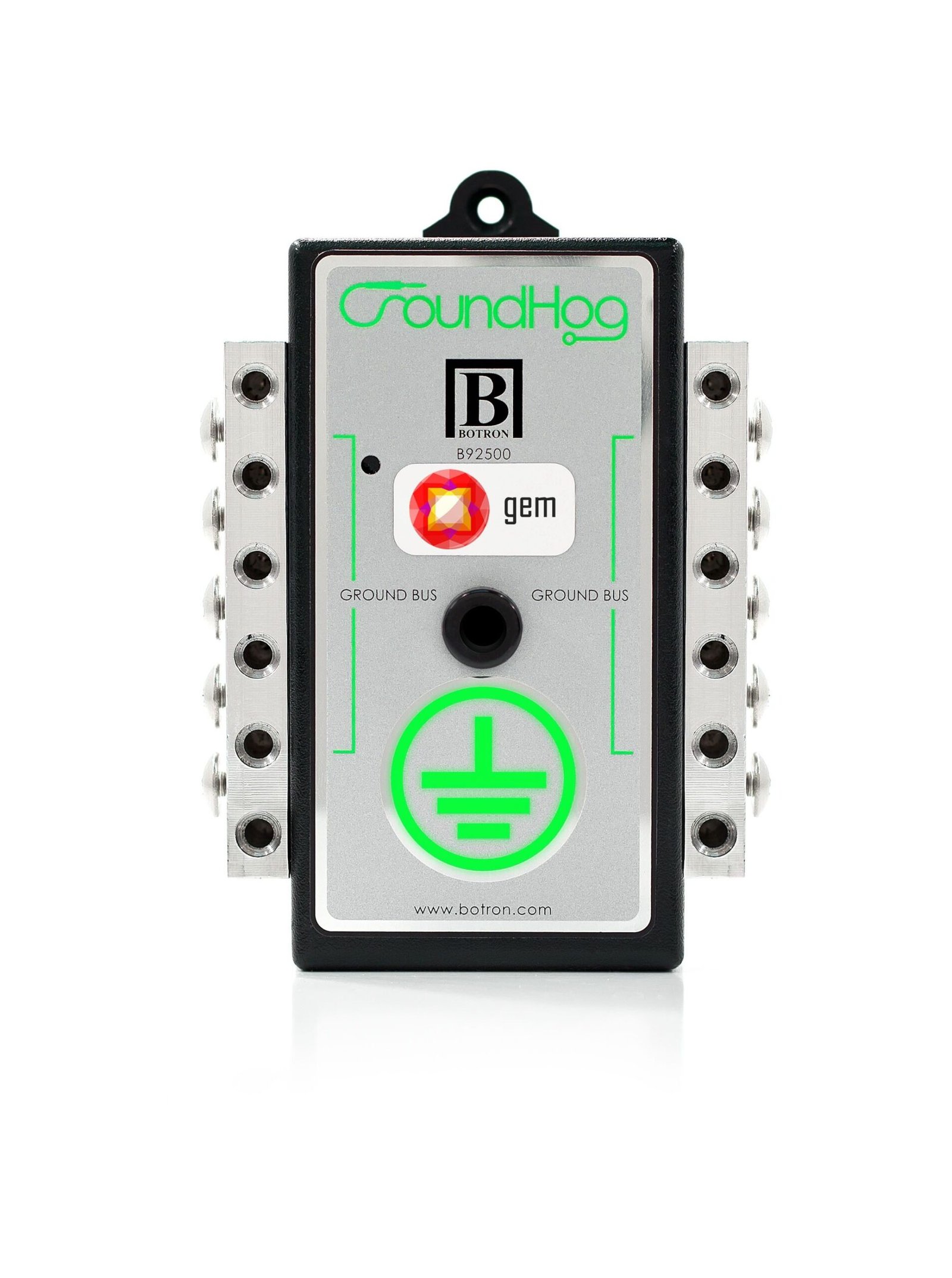

Botron GROUNDHOG – Multi-Ground Continuous Monitoring System

• Part number B92500d
• Multi ground continuous monitoring system
• Monitor critical grounds in real time
• Up to 22 grounding points
• Visual and audio alarms

The G.E.M. GroundHog, a Multi-Ground Continuous Monitoring Automation System, is the newest addition to the robust ELITE family of electronics from Botron Company Inc. With a rich feature set never before available, ESD facilities and sensitive component manufacturers can monitor critical grounds in real time in applications ranging from the benchtop to capital equipment.

The G.E.M. GroundHog Monitoring System is a revolutionary new tool. Acting as a hub for up to 22 grounding points, you can now verify the quality of the ground point and the potential of each incoming ground. With both an audible alarm and large multicolored LED indicator, identifying problems at the point of ground has never been more foolproof. Featuring Botron’s uniquely designed Audit Verifying Ground (AVG) jack, checking benches, grounds, carts, and much more has never been easier.

Featuring two aluminum grounding blocks supplying 22 ground terminals. When in use as a grounding hub, the GroundHog Monitor provides 12 jacks for banana-type connections, as well as 10 ring terminal connections.

When using the AVG feature, the GroundHog turns into a ground potential verifying wizard. There is no need to lug around cumbersome 5lbs weights, simply connect the test leads to the AVG jack, and with the other end probing various points of equipment, the GroundHog will verify its path to the ground. Equipment such as carts can now be verified in a matter of seconds.
