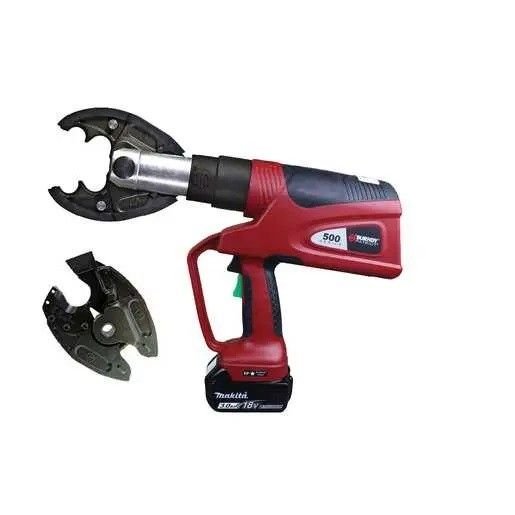

Burndy PAT500SJ68LICUTKIT1 – PATRIOT 500 Scissor Action with Cutting Jaw (ACSR blades), Crimp Jaw (O/D3), (2) 3.0Ah Li-ion, 120V AC Charger, Hard Case

• Interchangeable scissor action crimping (O/D3) and cutting jaws (ACSR)
• 180° head rotation
• Uses W and X dies with available crimp jaws
• Ergonomically balanced design
• Cuts up to 556.5 kcmil ACSR

The Burndy Patriot PAT500SJ is a 6-Ton scissor action cutter/crimper. The cutter/crimper features interchangeable scissor action cutting and crimping jaws. The Burndy PAT500SJ has ahead with 180° rotation and uses W and X style dies with the available crimping jaws (D3, BG/D3, O/D3). The tool is ergonomically balanced and is for use on copper, aluminum, ACSR, Copperweld, Alumoweld, 6201, 5005, compressed/compact conductors. The Burndy PAT500SJ can be ordered in kits with crimping and cutting jaws.

The tool accepts 18V Makita Lithium-Ion batteries, BL Series of size 2.0Ahr and greater if the plastic battery clip in the tool has a “star” molded into it. The “star” identifies acceptance of the BL series batteries.

Interchangeable Jaw Assemblies:

• Crimp jaw with BG/D3 grooves
• Crimp jaw with O/D3 grooves
• Crimp jaw with D3 groove only
• Crimp jaw with X, P, J grooves
• Cut jaw with ACSR blades
• Cut jaw with CU/AL blades
• Cut jaw with GUY blades
