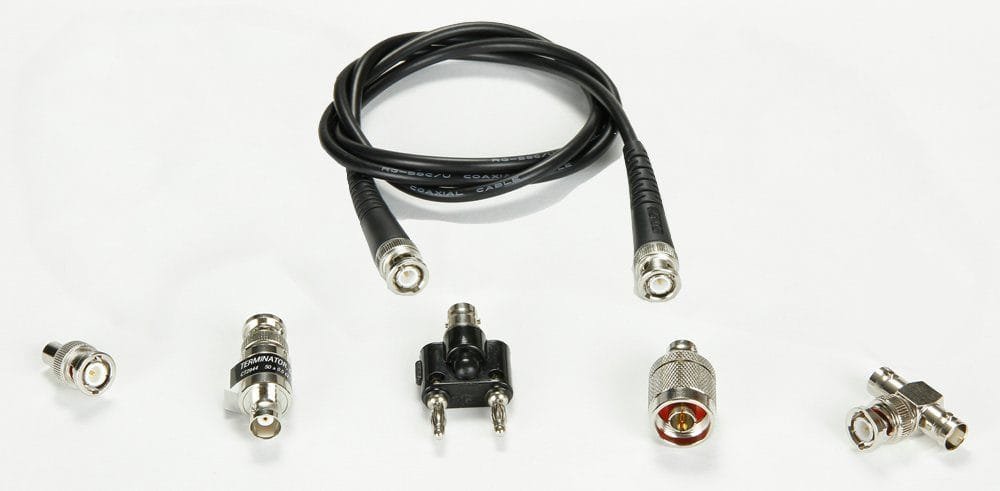

Cal Test CT4036 Function Generator and Freq. Counter Accessory Kit

Cal Test CT2411

General Purpose version BNC tee female to male to female in-series coax adapter. A very popular coaxial adapter.

Materials:

• Body: Brass, Nickel Plated
• Contact: Brass and BeCu, Gold Plated

Cal Test CT2762

General Purpose BNC Female to N Type Male, 50 Ω between-series Coaxial adapter.

Materials:

• Body: Brass, Nickel Plated
• Contact: Brass , Gold Plated

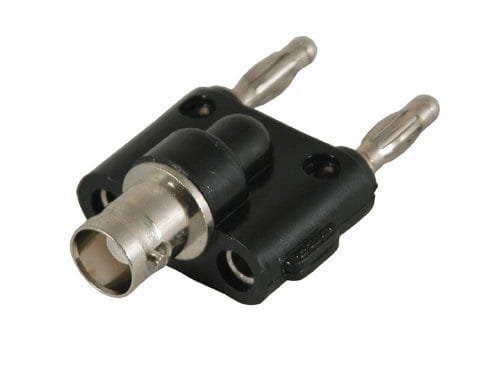

Cal Test CT2939

BNC male to 4mm banana plugs. Adapts a BNC female for connection by spade lugs, banana plugs and bare wire leads. Use on the front of your oscilloscope – a very versatile adapter.

Materials:

• Body: Polyamide (Nylon)
• Contact: Brass, Nickel Plt.
• Banana Contact: BeCu, Nickel Plt.

Cal Test CT2942-120

High Quality BNC male to male cable assembly. Molded bend relief boot. Mil rated RG58C/U, 50 ohm impedance cable.

Materials:

• Body: Brass or Zinc, Nickel Plt.
• Contact: Brass, Gold Plt.; Boot: PVC, Black

Cal Test CT2944

BNC male to female 50 Ω Feed-through terminator. Matches higher impedance devices to 50 Ω input impedance test equipment with a frequency of DC to 1 GHz

Materials:

• Contact: Gold Plated Center Contacts

Cal Test CT3334-50

General Purpose coaxial terminator matches 50ohm input impedance of test instrument. The CT3334-50 is RoHS compliant with a temperature range of 0° to +125°C.
