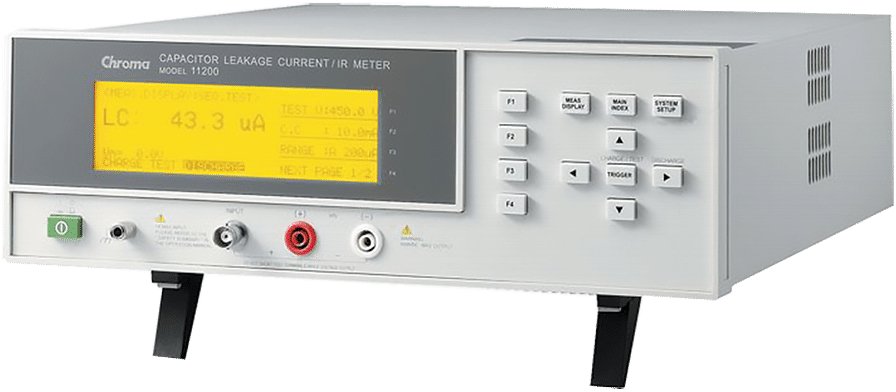

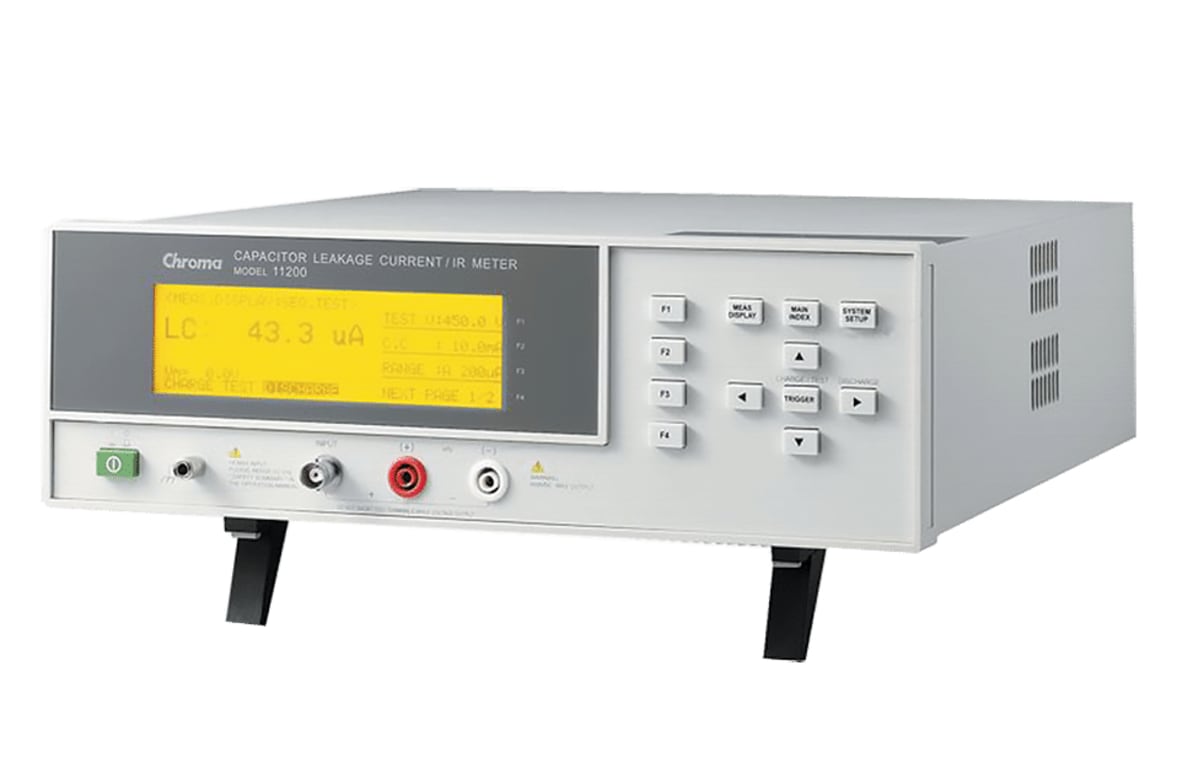

Chroma 11200-CHK – Capacitor Leakage Current / IR Meter (650V) with GPIB and Contact Check

• Includes GPIB & Handler Interface (A110235) and Contact Check Function for Automation Test (A112006)
• 1.0V~650V DC voltage source
• Capacitor leakage current test function
• Insulation resistance (IR) test function
• Basic accuracy: 0.3%

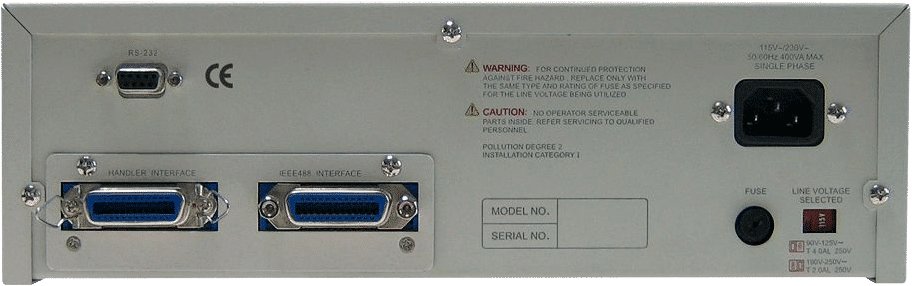

The 11200 Capacitor Leakage Current / IR Meter is mainly used for electrolytic capacitor leakage current testing and aluminum-foil withstand voltage testing (EIAJ RC-2364A). The 11200 can also be used for active voltage checking or leakage current testing of the absorber, Zener diode, and Neon lamp, etc. With the standard RS232 interface, optional GPIB & Handler interfaces, high speed, and stable measurement capabilities, the Chroma 11200 can be used for both component evaluation on the production line and for fundamental leakage current or IR testing for bench top applications.

Capacitor leakage current is defined in standards. In general, the leakage current is after charged (the Chroma 11200 is using 98% for identity) plus a period of time (for example 60 sec. ±10 sec.). Chroma 11200 provides a semi-constant-power discharge circuit for quick discharge after testing. Therefore, selecting [SEQuence] test mode for this application is recommended. It will follow the preset time to charge, test, and then discharge. After that, it will display the tested result and judge pass/fail.

On the automatic production line of electrolytic capacitors, generally, several pre-charging stations are built with a current limit series resistor in each station. When setting the meter in [STEP] test mode, TEST status, measure the leakage current via an external trigger. Chroma 11200 provides up to 500mA (below 100 volts) large output current and low noise voltage source which can be used as a charging and testing voltage source. The tested result will be displayed including pass/fail judgment. In addition, it can be controlled through the GPIB interface and handler interface for automation.
