Com-Power FCLC-100 – Current Clamp Calibration Fixture for CLCI-100

• Calibration Fixture for CLCI-100 Bulk Current Injection Probe
• Allows the probe to be clamped around the center conductor
• Maintains 50 ohm Nominal Impedance Transmission Line with Probe Installed

• Coupling Loss/Transfer Impedance Calibration.

• Test Level Calibration of Bulk Current Injection Probes

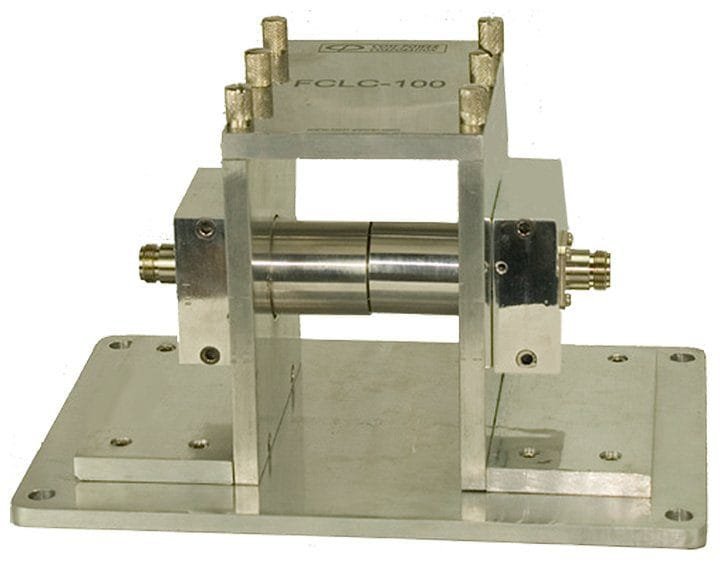

Current probes are calibrated through the use of a calibration fixture with a coaxial-type arrangement. The fixture allows the probe to be clamped around the center conductor, while the outer conductor encapsulates the probe on four sides, so that the transmission line characteristics are not compromised. See calibration fixture picture on the following page.

The CLCI-100 Bulk Current Injection Probe is designed to be compatible with the Com-Power FCLC-100 Calibration Fixture, which is available separately. The fixture is required for calibration of the insertion loss/conversion factor, transmission loss & VSWR parameters, as well as for setting the amplitude of the injected RF to the appropriate test level (i.e.: 3 Vrms, 10 Vrms, etc.) over the frequency range of the test.
